PA Series

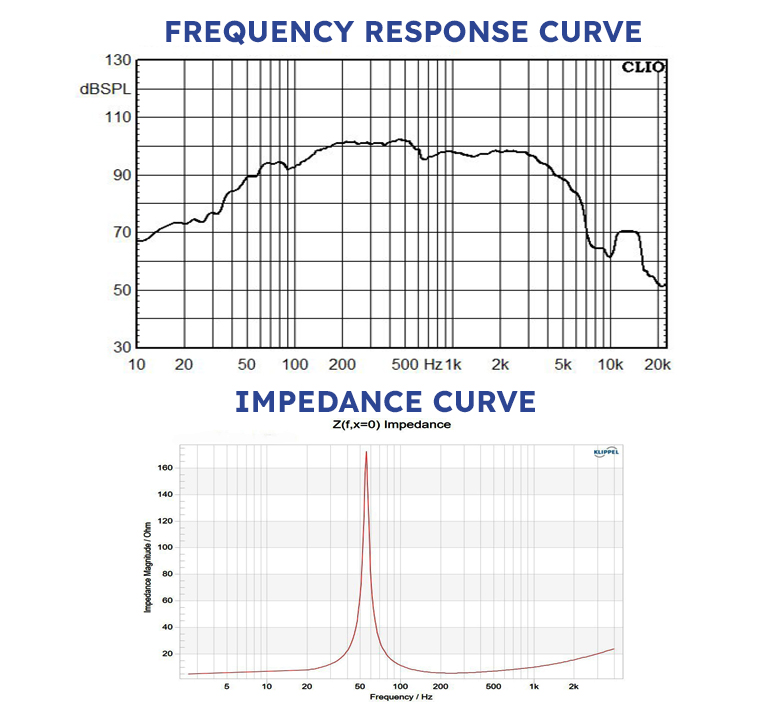

Key Features
Program Power 600 W
Voice Coil 76.2 mm (3 in)
Response 56-4300 Hz
Sensitivity 1W/1M 97 dB

Specification

Nominal Diameter 314 mm
Nominal Impedance 8 Ω
Nominal Power Handling(AES) 300 w
Gross Weight 7.850 Kg.

Parameters

Resonant Frequency FS 56 Hz
DC Resistance Re 4.7 Ω
Electrical Q Qes 0.31

Mounting Info

Overall Diameter 314 mm
Bolt Circle Diameter 296 mm
Baffle Cutout Diameter 282 mm

Recone Kit

Recone Kit Number REC12PA300MB

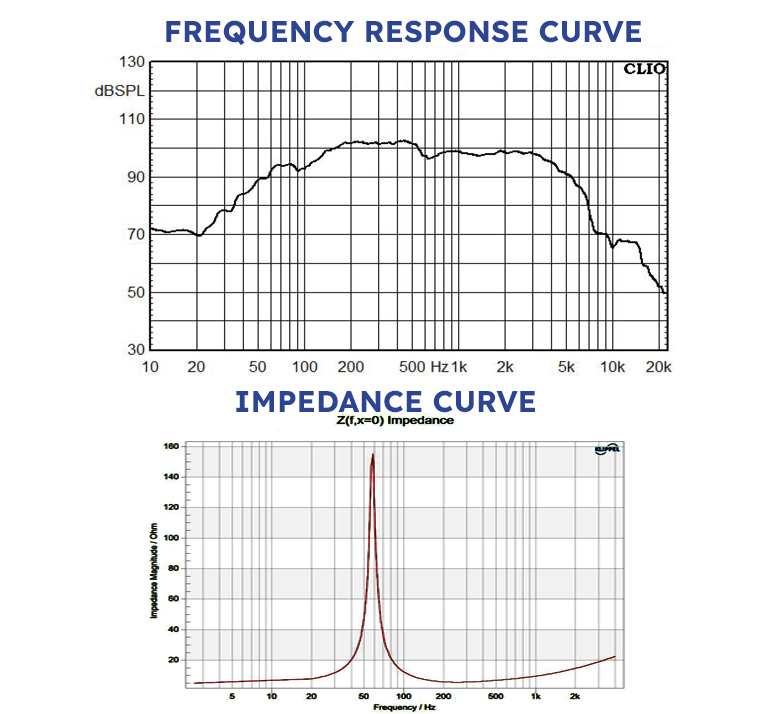

Key Features
Program Power 800 w
Voice Coil 76.2 mm (3 in)
Response 57- 5500 Hz
Sensitivity 1W/1M 97 db

Specification

Nominal Diameter 314 mm
Nominal Impedance 8 Ω
Nominal Power Handling(AES) 400 w
Gross Weight 8.5 Kg.

Parameters

Resonant Frequency FS 57 Hz
DC Resistance Re 4.7 Ω
Electrical Q Qes 0.31

Mounting Info

Overall Diameter 314 mm
Bolt Circle Diameter 296 mm
Baffle Cutout Diameter 282 mm

Recone Kit

Recone Kit Number REC12PA400MB
Key Features
Program Power 600w
Voice Coil 76.2 mm (3 in)
Response 47-4100 Hz
Sensitivity 1W/1M 98 dB

Specification

Nominal Diameter 390 mm
Nominal Impedance
Nominal Power Handling(AES) 300w
Gross Weight 10.170 Kg.

Parameters

Resonant Frequency FS 47 Hz
DC Resistance Re 5.2 Ω
Electrical Q Qes 0.47

Mounting Info

Overall Diameter 390 mm
Bolt Circle Diameter 375 mm
Baffle Cutout Diameter 356 mm

Recone Kit

Recone Kit Number REC15PA300XP

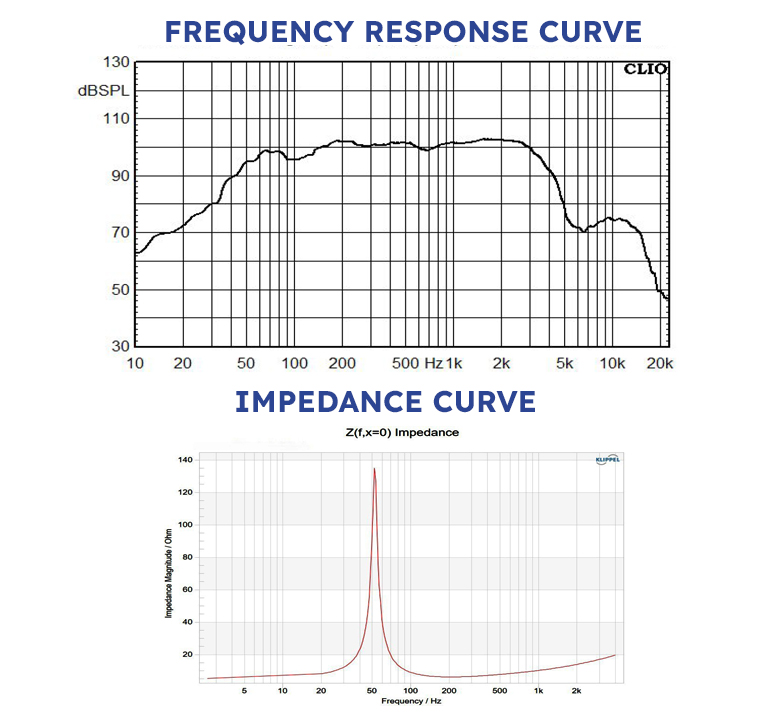

Key Features
Program Power 800 W
Voice Coil 76.2 mm (3 in)
Response 54-4200 Hz
Sensitivity 1W/1M 99 dB

Specification

Nominal Diameter 390 mm
Nominal Impedance
Nominal Power Handling(AES) 400w
Gross Weight 10.250 Kg

Parameters

Resonant Frequency FS 54 Hz
DC Resistance Re 5.2 Ω
Electrical Q Qes 0.58

Mounting Info

Overall Diameter 390 mm
Bolt Circle Diameter 375 mm
Baffle Cutout Diameter 356 mm

Recone Kit

Recone Kit Number REC15PA400C

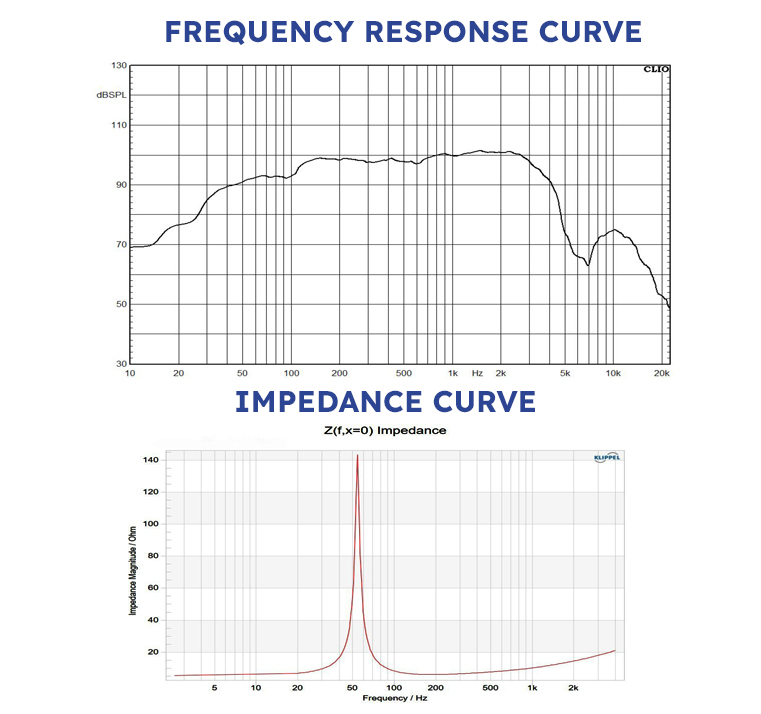

Specification

Nominal Diameter 390 mm
Nominal Impedance 8 Ω
Nominal Power Handling(AES) 400 W

Parameters

Resonant Frequency FS 52 Hz
DC Resistance Re 5.2 Ω
Electrical Q Qes 0.53

Mounting Info

Overall Diameter 390 mm
Bolt Circle Diameter 375 mm
Baffle Cutout Diameter 356 mm

Recone Kit

Recone Kit Number REC 15 PA 400 GOLD

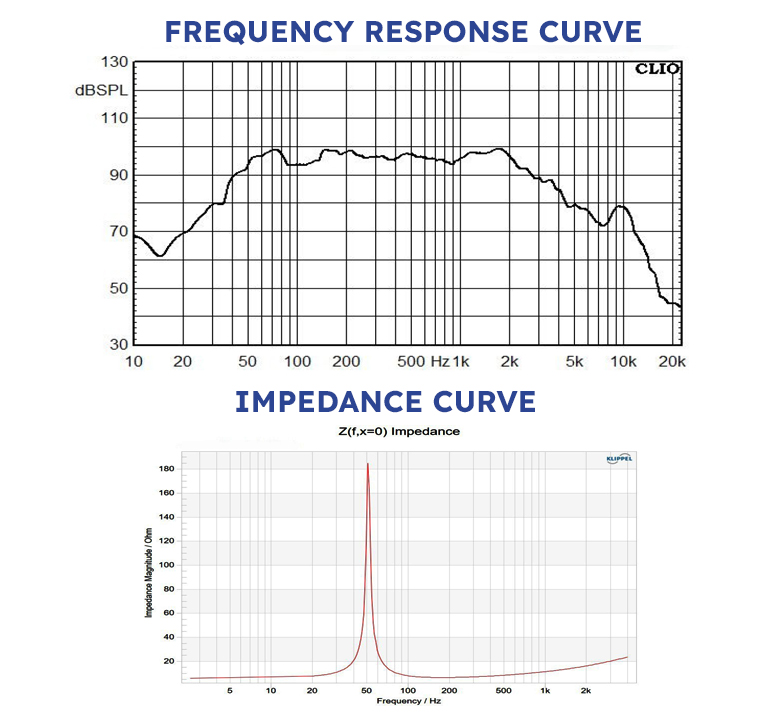

Key Features
Program Power 1000 W
Voice Coil 99.3 mm (4 in)
Response 51-2500 Hz
Sensitivity 1W/1M 98 dB

Specification

Nominal Diameter 395 mm
Nominal Impedance
Nominal Power Handling(AES) 500w
Gross Weight 14.200 Kg.

Parameters

Resonant Frequency FS 51 Hz
DC Resistance Re 5.8 Ω
Electrical Q Qes 0.9

Mounting Info

Overall Diameter 395 mm
Bolt Circle Diameter 380 mm
Baffle Cutout Diameter 361 mm

Recone Kit

Recone Kit Number REC15PA500MB
Key Features
Program Power 1200 W
Voice Coil 99.3 mm ( 4 in)
Response 46- 2000 Hz
Sensitivity 1W/1M 95 dB

Specification

Nominal Diameter 395 mm
Nominal Impedance 8 Ω
Nominal Power Handling(AES) 600 W
Gross Weight 14.240 Kgs

Parameters

Resonant Frequency FS 46 Hz
DC Resistance Re 5.0 Ω
Electrical Q Qes 0.56

Mounting Info

Overall Diameter 395 mm
Bolt Circle Diameter 380 mm
Baffle Cutout Diameter 361 mm

Recone Kit

Recone Kit Number REC15PA600MB
Key Features
Program Power 2000w
Voice Coil 99.3 mm (4 in)
Response 46-2800 Hz
Sensitivity 1W/1M 97 dB

Specification

Nominal Diameter 395 mm
Nominal Impedance
Nominal Power Handling(AES) 1000w
Gross Weight 15.280 Kg.

Parameters

Resonant Frequency FS 46 Hz
DC Resistance Re 5.0 Ω
Electrical Q Qes 0.37

Mounting Info

Overall Diameter 395 mm
Bolt Circle Diameter 380 mm
Baffle Cutout Diameter 361 mm

Recone Kit

Recone Kit Number REC15PA1000MB
