SBS Series

Key Features
Program Power 300 W
Voice Coil 51.2 mm ( 2 in)

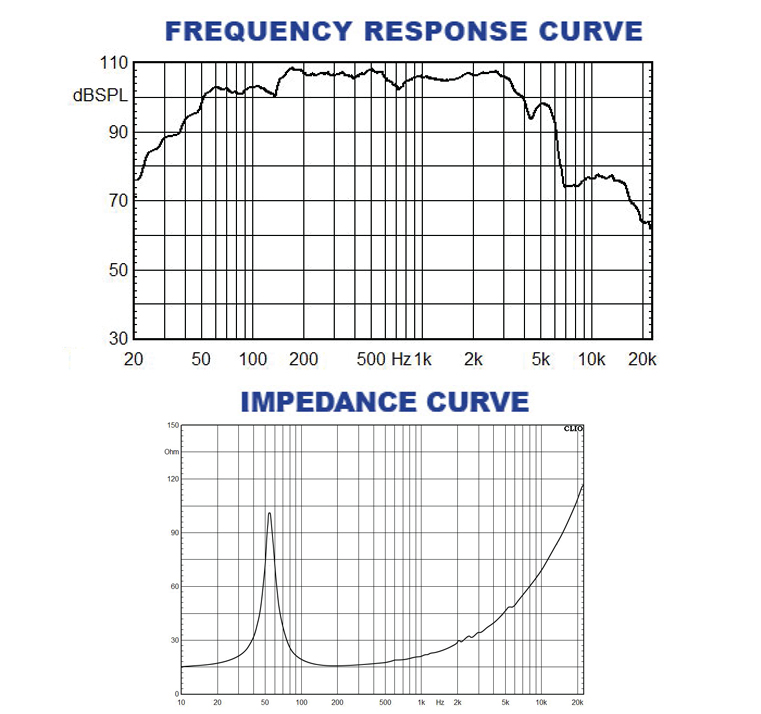

Response 53-6500 Hz
Sensitivity 1W/1M 93 dB

Specification

Nominal Diameter 314 mm
Nominal Impedance 16 Ω
Nominal Power Handling(AES) 150 W

Parameters

Resonant Frequency FS 53 Hz
DC Resistance Re 11.5 Ω
Electrical Q Qes 0.75

Mounting Info

Overall Diameter 314 mm
Bolt Circle Diameter 296 mm
Baffle Cutout Diameter 282 mm

Recone Kit

Recone Kit Number REC12SBS150MB
Key Features
Program Power 400 W
Voice Coil 53 mm (2.08 in)
Response 45-3300 Hz
Sensitivity 1W/1M 94 dB

Specification

Nominal Diameter 313 mm
Nominal Impedance 16 Ω
Nominal Power Handling(AES) 200w

Parameters

Resonant Frequency FS 45 Hz
DC Resistance Re 12 Ω
Electrical Q Qes 0.55

Mounting Info

Overall Diameter 314 mm
Bolt Circle Diameter 296 mm
Baffle Cutout Diameter 282 mm

Recone Kit

Recone Kit Number REC12SBS200MB
Key Features
Program Power 500 W
Voice Coil 53 mm (2.08 in)
Response 54-6200 Hz
Sensitivity 1W/1M 94 dB

Specification

Nominal Diameter 314 mm
Nominal Impedance 16 Ω
Nominal Power Handling(AES) 250 W

Parameters

Resonant Frequency FS 54 Hz
DC Resistance Re 11.5 Ω
Electrical Q Qes 0.65

Mounting Info

Overall Diameter 314 mm
Bolt Circle Diameter 296 mm
Baffle Cutout Diameter 282 mm

Recone Kit

Recone Kit Number REC12SBS250MB
