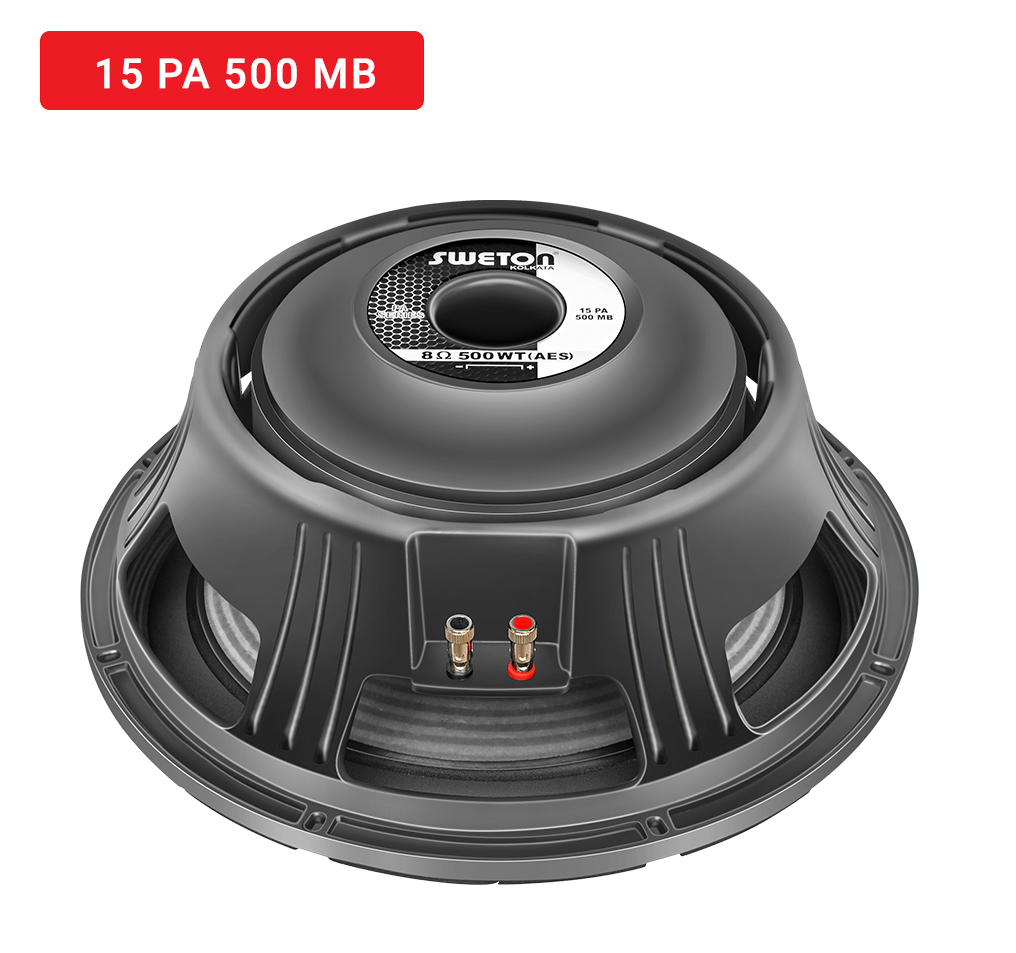

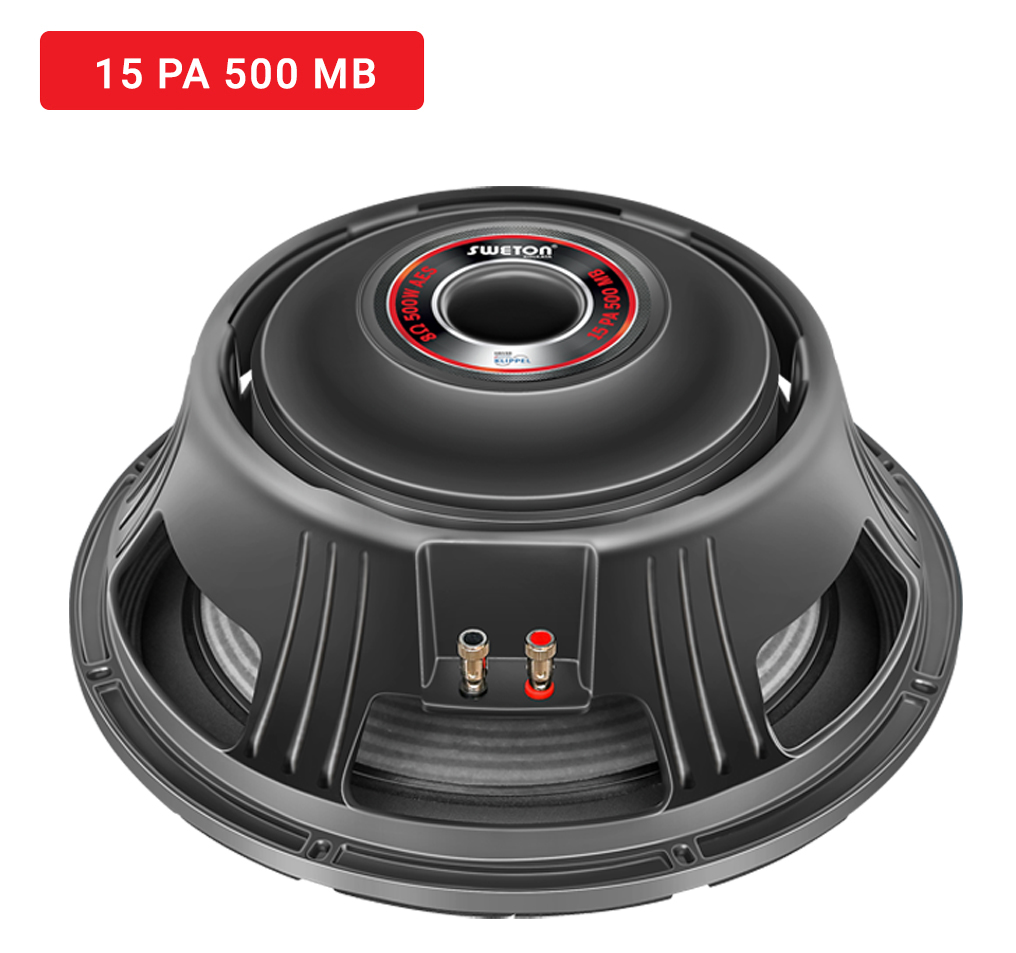

15 PA 500 MB
Very powerful 99.3 mm voice coil transducer. Powerful combination of Mid and Bass. Suitable for Sealed Enclosure.
Ideal for Live Programs as stage monitors as well out door usage especially in DJ. Can be used in direct radiating Single/Dual Top.
| Key Features | |
| Program Power | 1000 W |
| Voice Coil | 99.3 mm (4 in) |
| Response | 45-4500 Hz |
| Sensitivity 1W/1M | 95 dB |
Specification
| Nominal Diameter | 395 mm |
| Nominal Impedance | 8Ω |
| Gross Weight | 14.200 Kg. |
| Nominal Power Handling(AES) | 500 W |
| Program Power | 1000 W |
| Sensitivity (1W/1m) | 96 db |
| Frequency Range | 45-4500 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 99.3 mm ( 4 in) |
| Winding Material | CCAW |
| Former Material | GLASS FIBRE |
| Winding Type | Outside |
Parameters
| Resonant Frequency | FS | 51 Hz |
| DC Resistance | Re | 5.8 Ω |
| Electrical Q | Qes | 0.64 |
| Mechanical Q | Qms | 21.87 |
| Total Q | Qts | 0.62 |
| Compliance Equivalent Volume | vas | 89.25 ltrs |
| Peak Diaphragm Displacement Volume | Vd | 1.31 Ltrs |
| Effective Surface Area of Cone | Sd | 897.27 cm^2 |
| Reference Efficiency | ƞo | 1.79% |
| Moving Mass including air load | Mms | 123.10 gms |
| Motor Strength | Bl | 18.94 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.59 mH |
| Efficiency Bandwith Product | EBP | 80 Hz |
| Voice Coil Overhang | Xmax | ±3.75 mm |
Mounting Info
| Overall Diameter | 395 mm |
| Bolt Circle Diameter | 380 mm |
| Baffle Cutout Diameter | 361 mm |
| Depth | 155 mm |
| Flange and Gasket Thickness | 16 mm |
| Gross Weight | 14.20 Kgs |
Recone Kit
| Recone Kit Number | REC15PA500MB |
