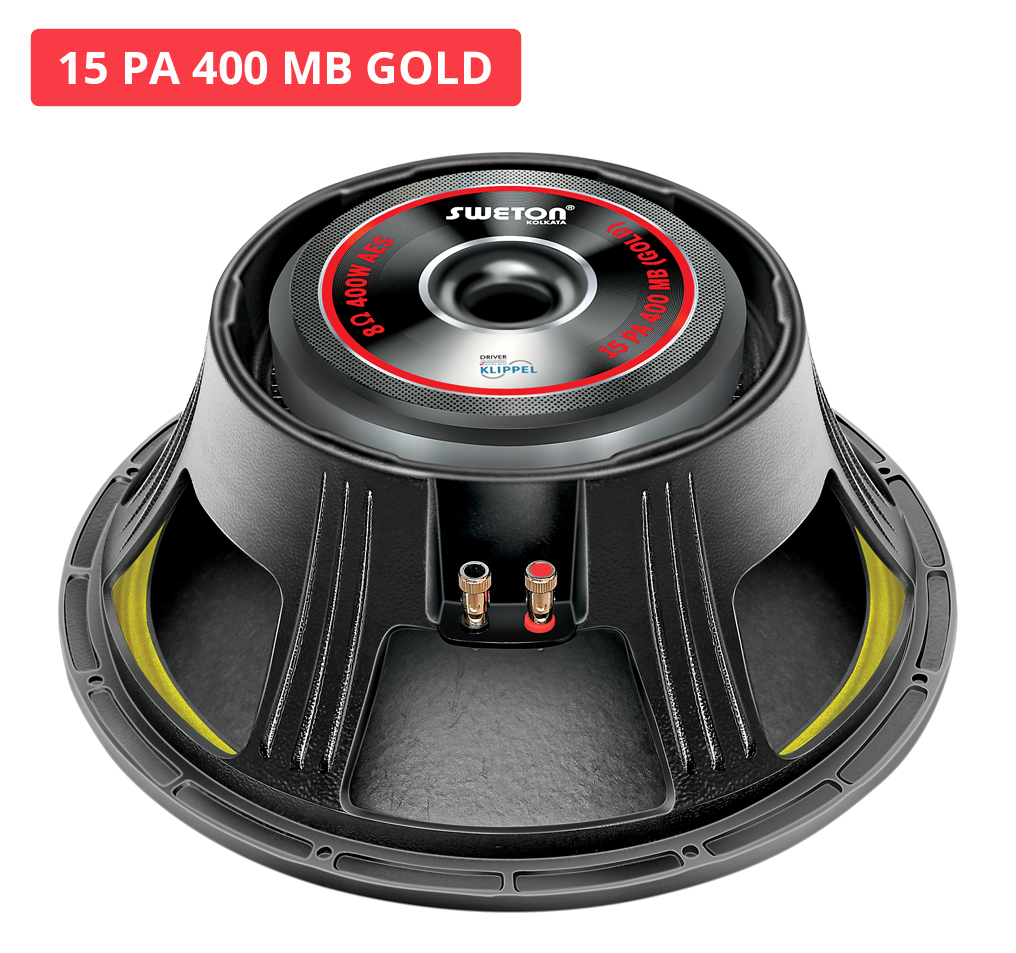

15 PA 400 C MB GOLD
The ideal Mid bass transducer with high Sensitivity & efficiency. Can be used in Stage Monitors, Single or Dual Top. Suitable for both Sealed and Bass Reflex Enclosures.
| Key Features | |
| Program Power | 800 W |
| Voice Coil | 76.2 mm (3 in) |
| Response | 45-4200 Hz |
| Sensitivity 1W/1M | 97 dB |
Specification
| Nominal Diameter | 390 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 400 W |
| Program Power | 800 W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Range | 45-4200 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 76.2 mm ( 3 in) |
| Winding Material | CCAW |
| Former Material | GLASS FIBRE |
| Winding Type | OUTSIDE |
Parameters
| Resonant Frequency | FS | 54 Hz |
| DC Resistance | Re | 5.3 Ω |
| Electrical Q | Qes | 0.58 |
| Mechanical Q | Qms | 15.05 |
| Total Q | Qts | 0.55 |
| Compliance Equivalent Volume | vas | 115.60 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.80 Ltrs |
| Effective Surface Area of Cone | Sd | 913.27 cm^2 |
| Reference Efficiency | ƞo | 3.06% |
| Moving Mass including air load | Mms | 87.60 gms |
| Motor Strength | Bl | 16.54 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.37 mH |
| Efficiency Bandwith Product | EBP | 93 Hz |
| Voice Coil Overhang | Xmax | ±6.00 mm |
Mounting Info
| Overall Diameter | 390 mm |
| Bolt Circle Diameter | 375 mm |
| Baffle Cutout Diameter | 356 mm |
| Depth | 154 mm |
| Flange and Gasket Thickness | 12 mm |
| Gross Weight | 10.25 Kgs |
Recone Kit
| Recone Kit Number | REC 15 PA 400 GOLD |
