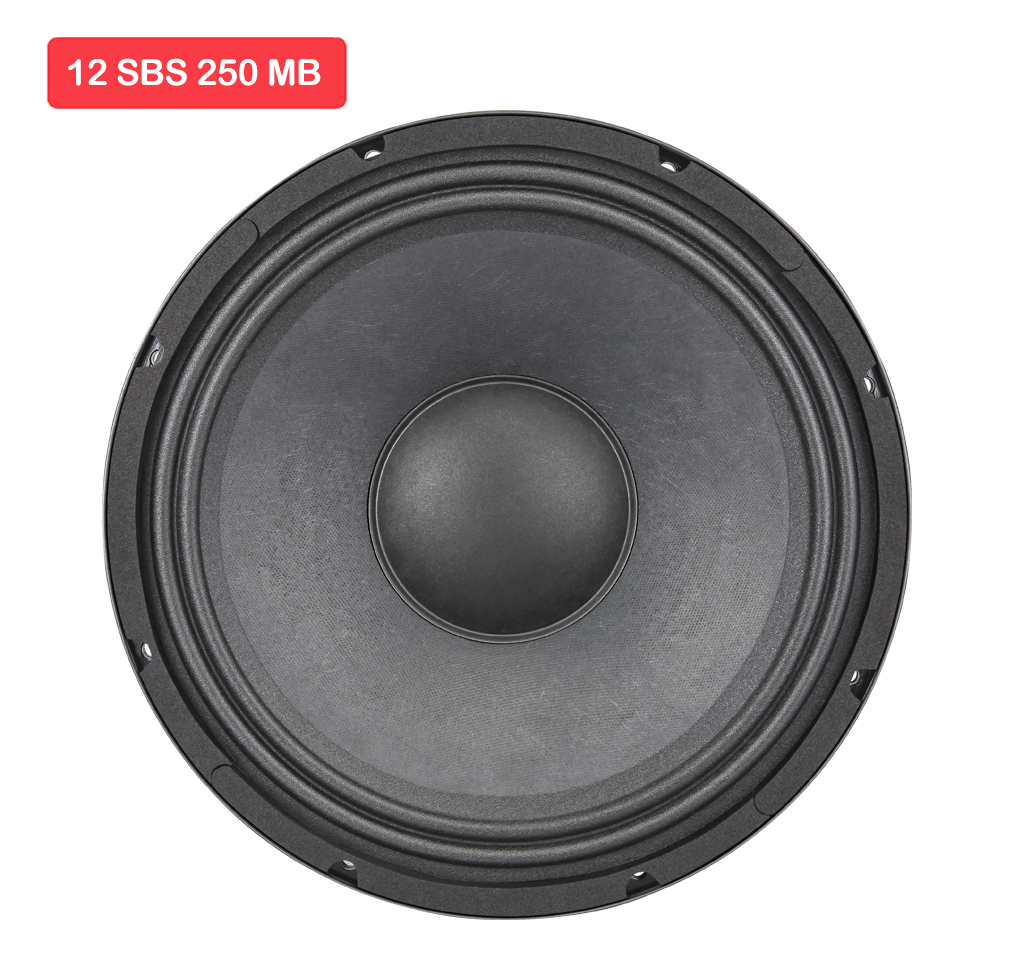

12 SBS 250 MB
Mid Bass transducer reproducing high mid and is useful for both indoor and outdoor application. Suitable for both Sealed and Bass Reflex Enclosure.
| Key Features | |
| Program Power | 500 W |
| Voice Coil | 53 mm (2.08 in) |
| Response | 54-6200 Hz |
| Sensitivity 1W/1M | 94 dB |
Specification
| Nominal Diameter | 314 mm |
| Nominal Impedance | 16 Ω |
| Nominal Power Handling(AES) | 250 W |
| Program Power | 500 W |
| Sensitivity (1W/1m) | 94 dB |
| Frequency Range | 54-6200 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 53 mm(2.08 in) |
| Winding Material | COPPER |
| Former Material | KAPTON |
| Winding Type | Outside |
| Filter Type | 11.5 Ω |
Parameters
| Resonant Frequency | FS | 54 Hz |
| DC Resistance | Re | 11.5 Ω |
| Electrical Q | Qes | 0.65 |
| Mechanical Q | Qms | 5.05 |
| Total Q | Qts | 0.57 |
| Compliance Equivalent Volume | vas | 60 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.37 Ltrs |
| Effective Surface Area of Cone | Sd | 518.7 cm^2 |
| Reference Efficiency | ƞo | 1.40% |
| Moving Mass including air load | Mms | 54.20 gms |
| Motor Strength | Bl | 18.12 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 1.55 mH |
| Efficiency Bandwith Product | EBP | 83 Hz |
| Voice Coil Overhang | Xmax | ±7.12 mm |
Mounting Info
| Overall Diameter | 314 mm |
| Bolt Circle Diameter | 296 mm |
| Baffle Cutout Diameter | 282 mm |
| Depth | 133 mm |
| Flange and Gasket Thickness | 15 mm |
| Gross Weight | 6.8 Kg. |
Recone Kit
| Recone Kit Number | REC12SBS250MB |
