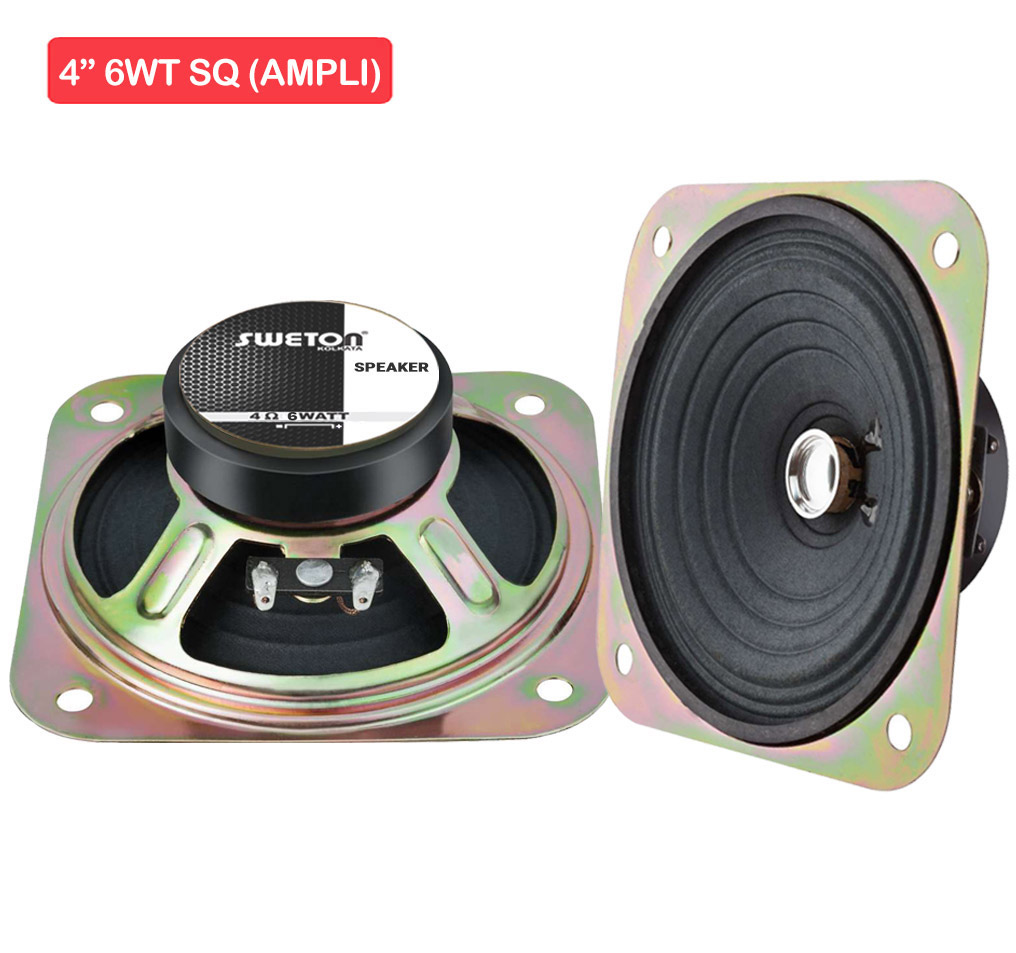

4" 6 WT SQ (Ampli)


( We currently accept bulk orders only for this model. Kindly reach out to sales@swetonspeakers.com for more details. )
  • 4 Ohm
  • Program Power : 12 W
  • Voice Coil Diameter : 14.46 mm
  • Response : 262-20K Hz
  • Sensitivity (1W/1m) : 91 dB
Availability: In Stock
MRP ₹ 153 /- (1 piece)

Not available

Specification Description

Specification

Nominal Diameter
110.5 mm
Nominal Impedance
4 Ω
Nominal Power Handling (AES)
6 W
Program Power (AES)
12 W
Sensitivity (1W/1m)
91 dB
Frequency Range
262-20K Hz
Magnet Material
Ferrite
Voice Coil Dia
14.46 mm
Winding Material
COPPER
Former Material
SV COATED KRAFT
Winding Type
Outside

T/S Parameters

Resonant Frequency (Fs)
262 Hz
DC Resistance (Re)
3.5 Ω
Electrical Q (Qes)
2.75
Mechanical Q (Qms)
7.53
Total Q (Qts)
2.01
Compliance Equivalent Volume (Vas)
1.24 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.01 Ltrs
Effective Surface Area of Cone (Sd)
63.63 cm^2
Reference Efficiency (no)
0.77%
Moving Mass including air load (Mms)
1.69 gms
Motor Strength (BL)
1.88 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.09 mH
Efficiency Bandwith Product (EBP)
95 Hz
Voice Coil Overhang (Xmax)
±1.50 mm

Mounting Info

Overall Diameter
110.5 mm
Baffle Cutout Diameter
97 mm
Depth
42 mm
Flange and Gasket Thickness
4 mm

Recone Kit

Recone Kit Number
REC4INCHAMP

We currently accept bulk orders only for this model. Kindly reach out to sales@swetonspeakers.com for more details.
