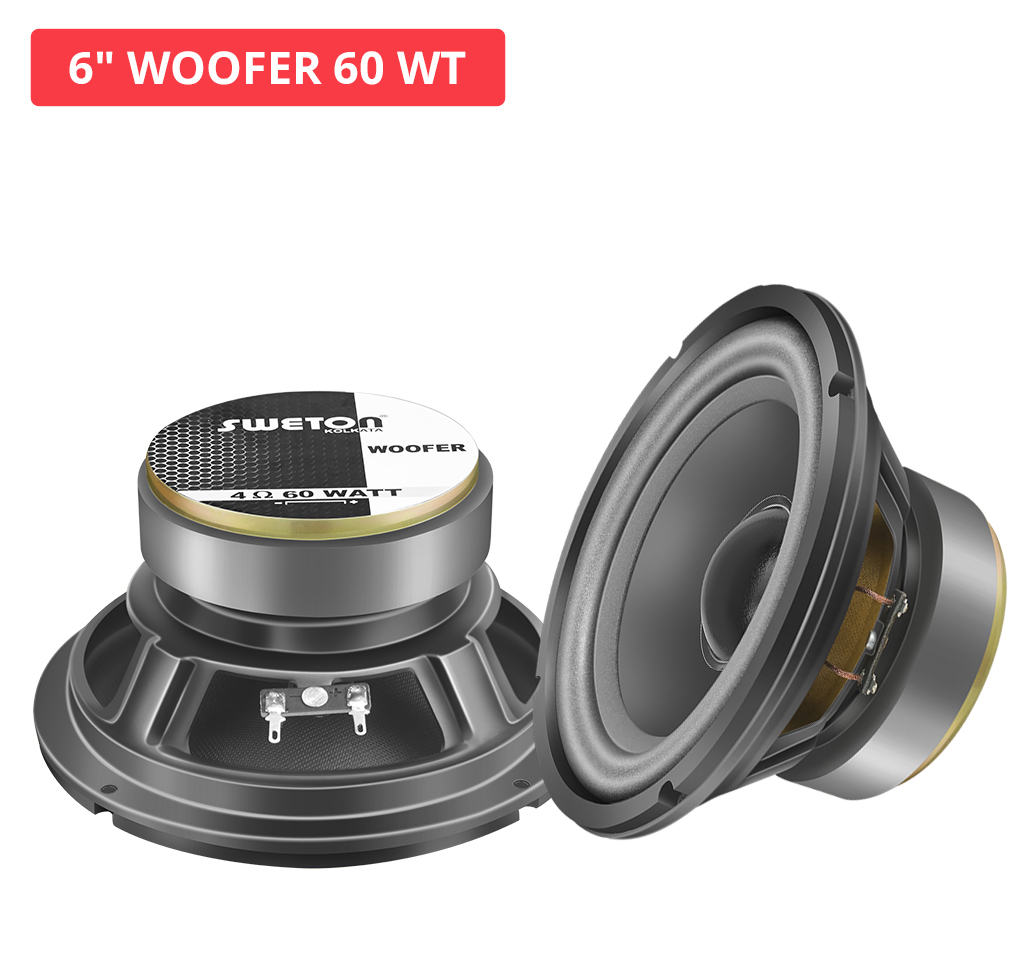

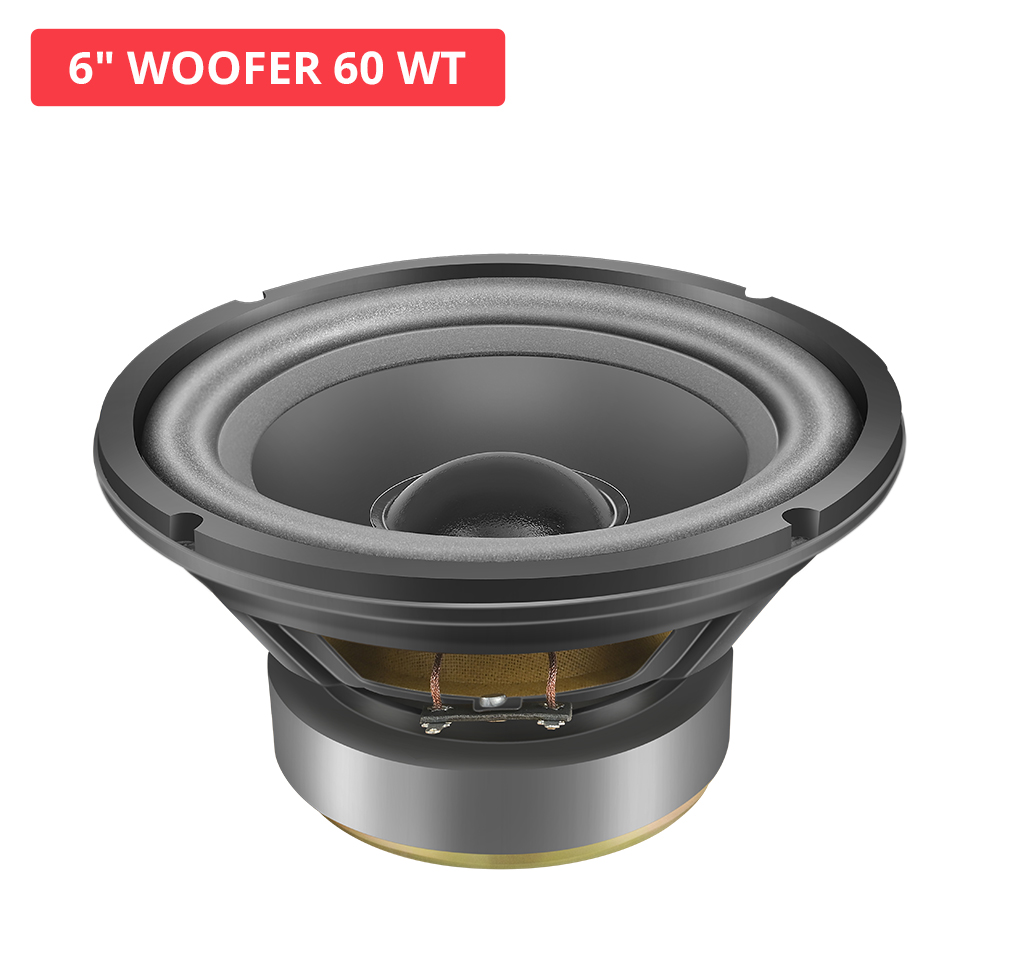

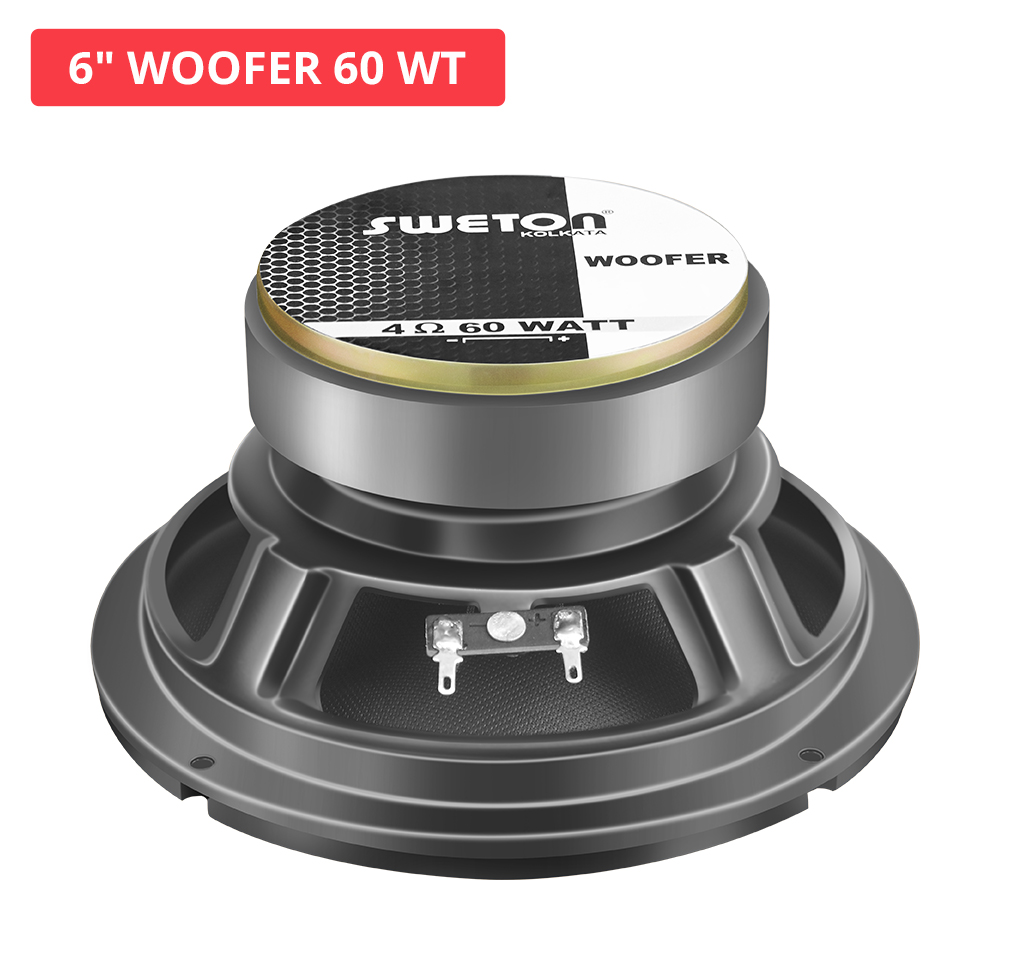

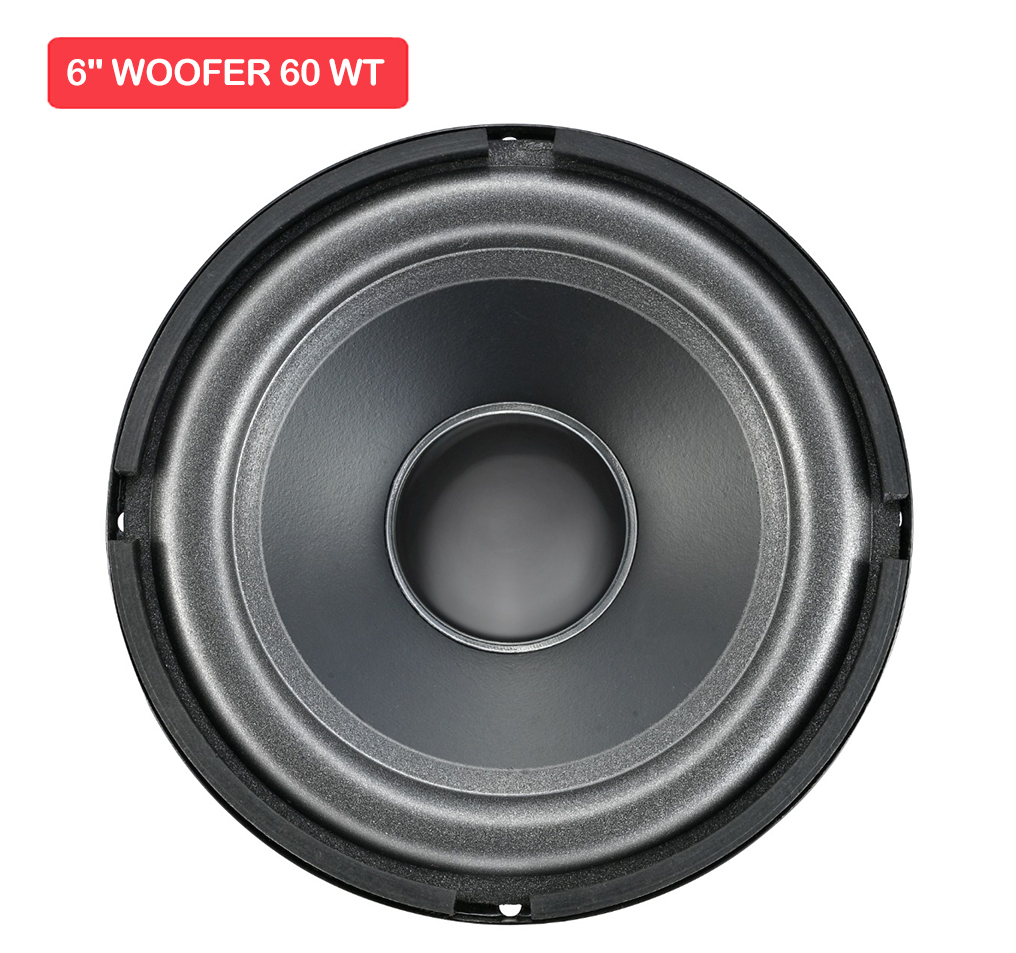

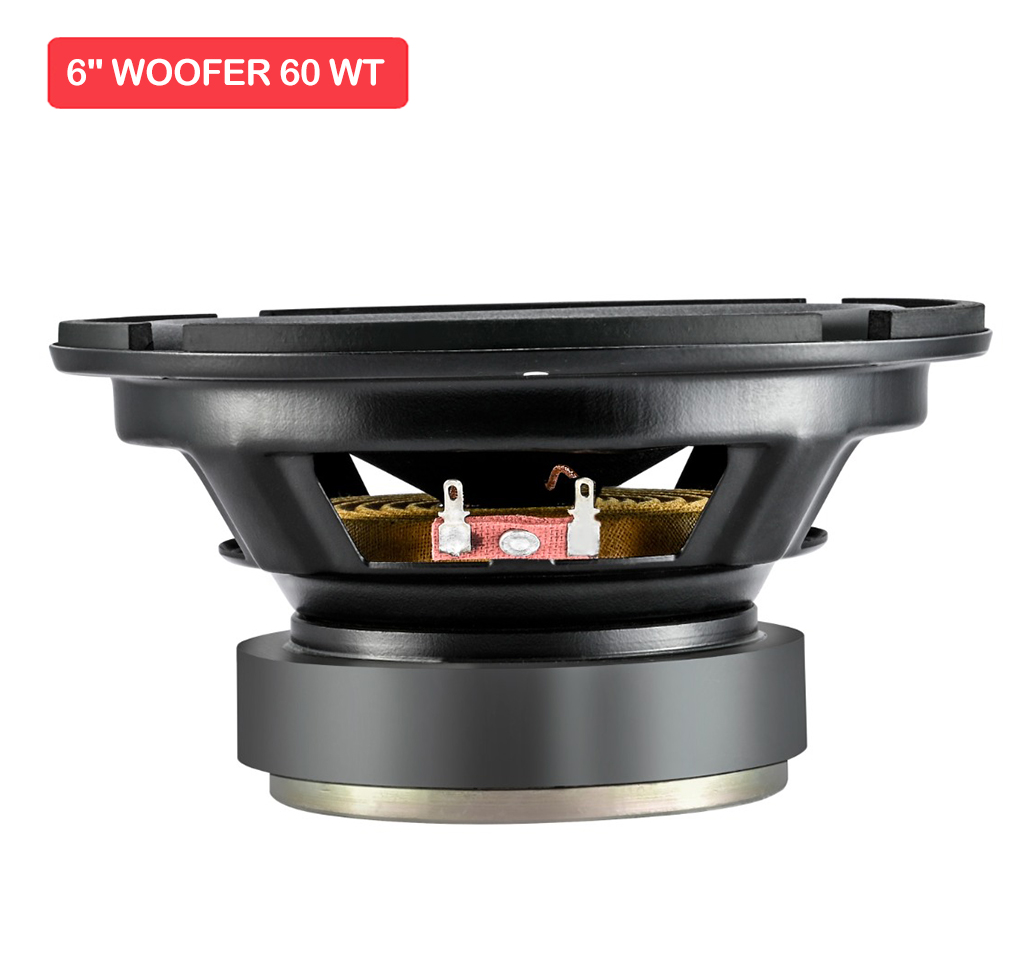

6" WOOFER 60 WT

  • 4 Ohm
  • Program Power : 120 W
  • Voice Coil Diameter : 25.68 mm
  • Response : 79-8K Hz
  • Sensitivity (1W/1m) : 87 dB
Availability: In Stock
MRP ₹ 995 /- (1 piece)
Offer Price ₹ 985 /- (1 piece)
Specification Description

Specification

Nominal Diameter
167.25 mm
Nominal Impedance
4 Ω
Nominal Power Handling (AES)
60 W
Program Power (AES)
120 W
Sensitivity (1W/1m)
87 dB
Magnet Material
Ferrite
Voice Coil Dia
25.68 mm
Winding Material
COPPER
Former Material
SV COATED KRAFT
Winding Type
Outside

T/S Parameters

Resonant Frequency (Fs)
79 Hz
DC Resistance (Re)
3.5 Ω
Electrical Q (Qes)
1.15
Mechanical Q (Qms)
6.56
Total Q (Qts)
0.98
Compliance Equivalent Volume (Vas)
7.14 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.03 Ltrs
Effective Surface Area of Cone (Sd)
143 cm^2
Reference Efficiency (no)
0.29%
Moving Mass including air load (Mms)
16.37 gms
Motor Strength (BL)
4.95 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.29 mH
Efficiency Bandwith Product (EBP)
68 Hz
Voice Coil Overhang (Xmax)
±2.31 mm

Mounting Info

Overall Diameter
167.25 mm
Baffle Cutout Diameter
147.25 mm
Depth
77 mm
Flange and Gasket Thickness
8 mm

Recone Kit

Recone Kit Number
REC6INCH60W
