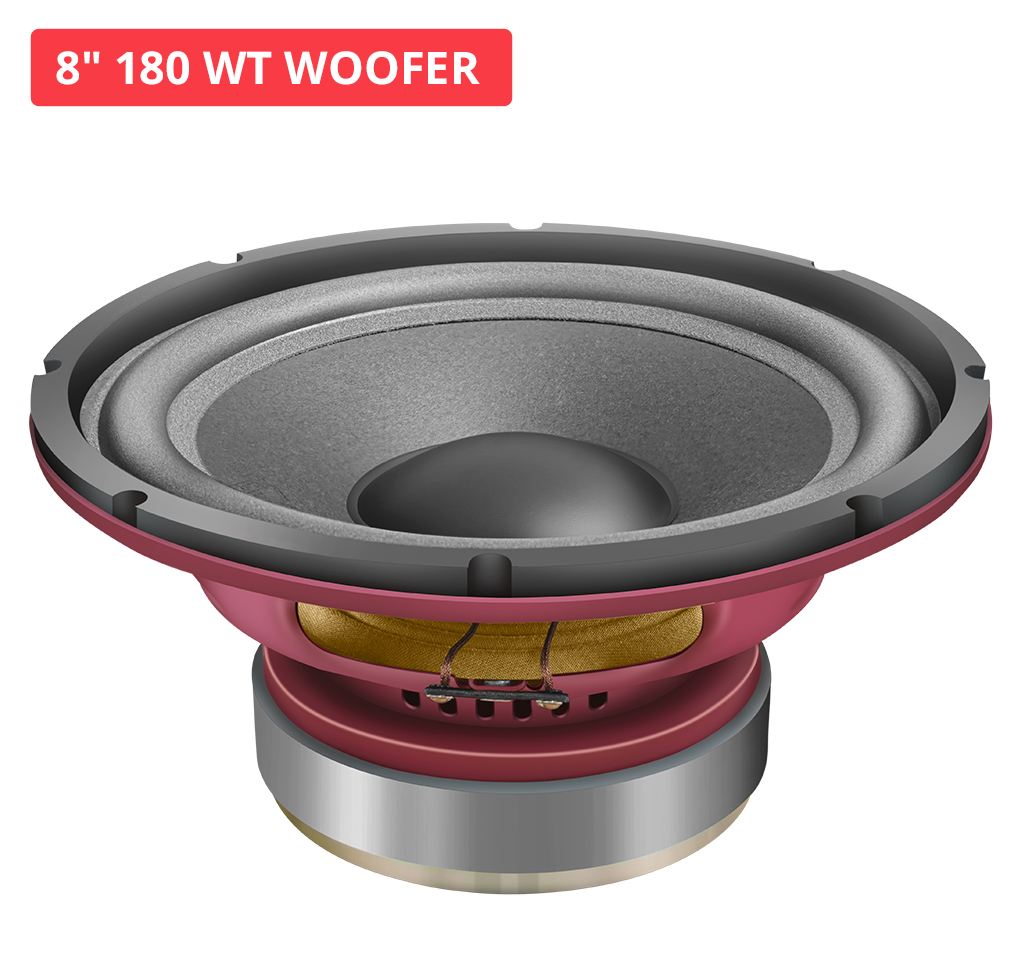

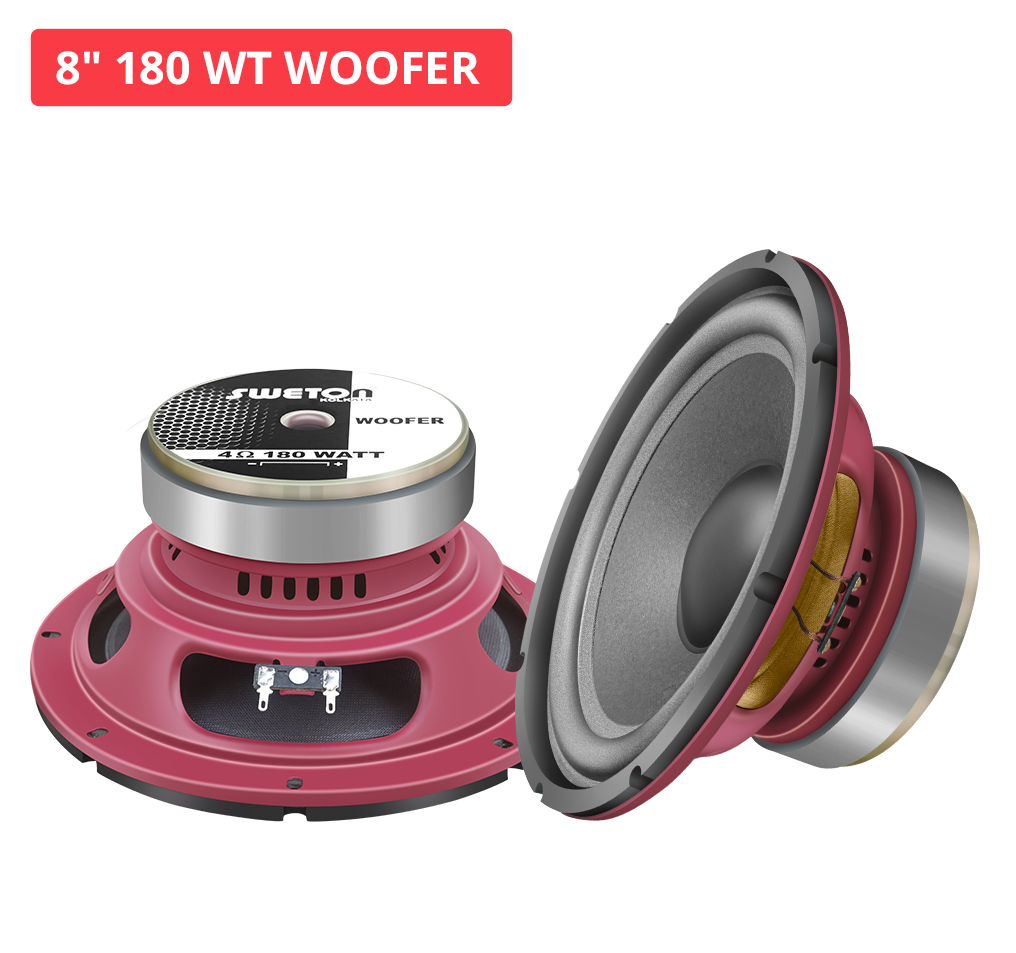

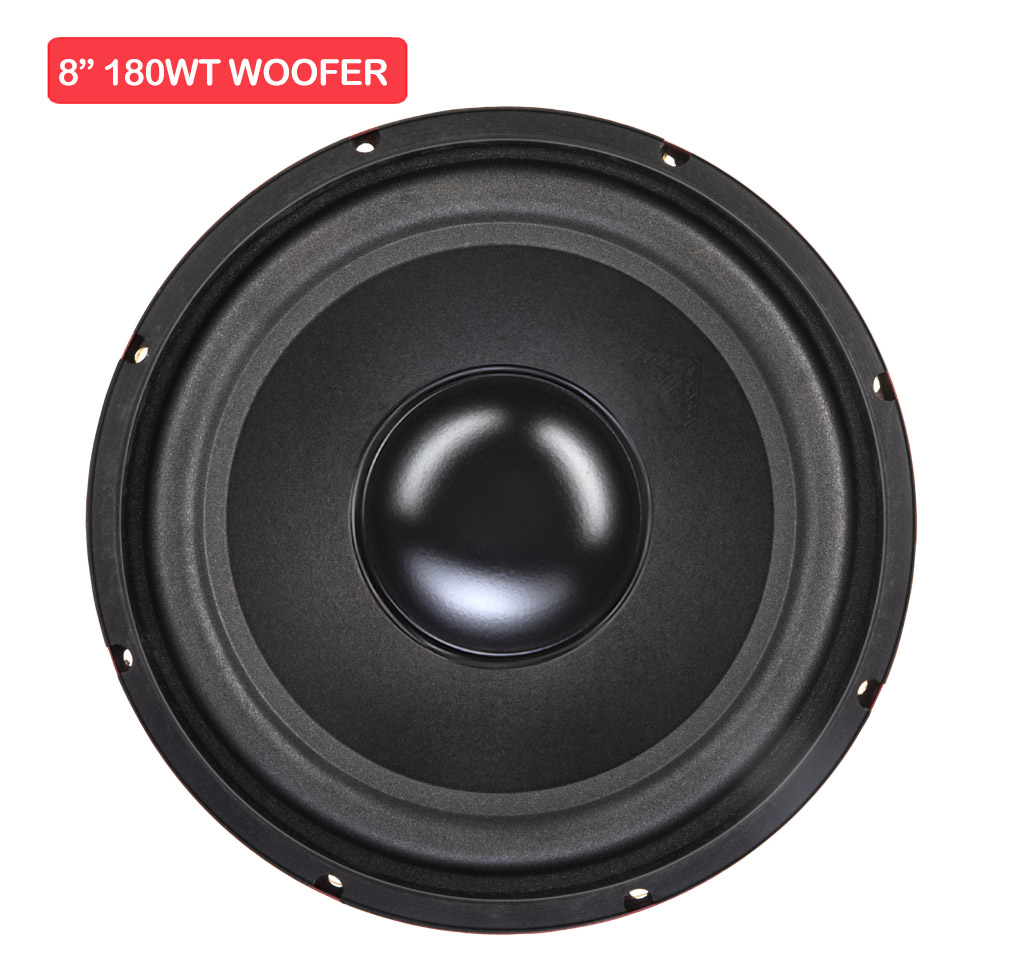

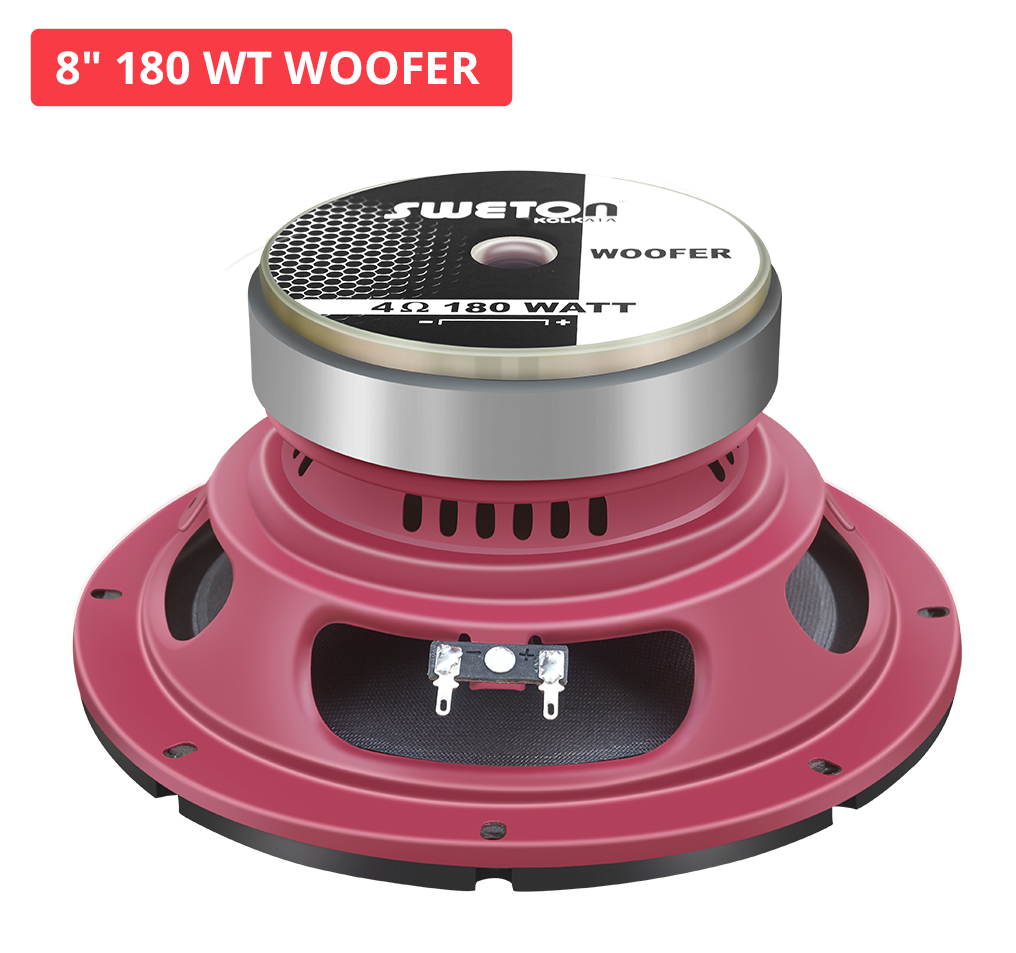

8" 180 WT WOOFER
- 4 Ohm
- Program Power : 360 W
- Voice Coil Diameter : 35 mm
- Response : 53-5.3K Hz
- Sensitivity (1W/1m) : 90 db
Specification
Nominal Diameter
210 mm
Nominal Impedance
4 Ω
Nominal Power Handling (AES)
180 w
Program Power (AES)
360 w
Sensitivity (1W/1m)
90 db
Frequency Range
53-5.3K Hz
Magnet Material
Ferrite
Voice Coil Dia
35 mm
Winding Material
COPPER
Former Material
KAPTON
Winding Type
Outside
T/S Parameters
Resonant Frequency (Fs)
53 Hz
DC Resistance (Re)
3.9 Ω
Electrical Q (Qes)
0.58
Mechanical Q (Qms)
13.57
Total Q (Qts)
0.56
Compliance Equivalent Volume (Vas)
27 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.10 Ltrs
Effective Surface Area of Cone (Sd)
221.7 cm^2
Reference Efficiency (no)
0.66%
Moving Mass including air load (Mms)
23.07 gms
Motor Strength (BL)
7.16 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.60 mH
Efficiency Bandwith Product (EBP)
91 Hz
Voice Coil Overhang (Xmax)
±4.69 mm
Mounting Info
Overall Diameter
210 mm
Baffle Cutout Diameter
180.5 mm
Depth
100 mm
Flange and Gasket Thickness
11 mm
Recone Kit
Recone Kit Number
REC8INCH180W
