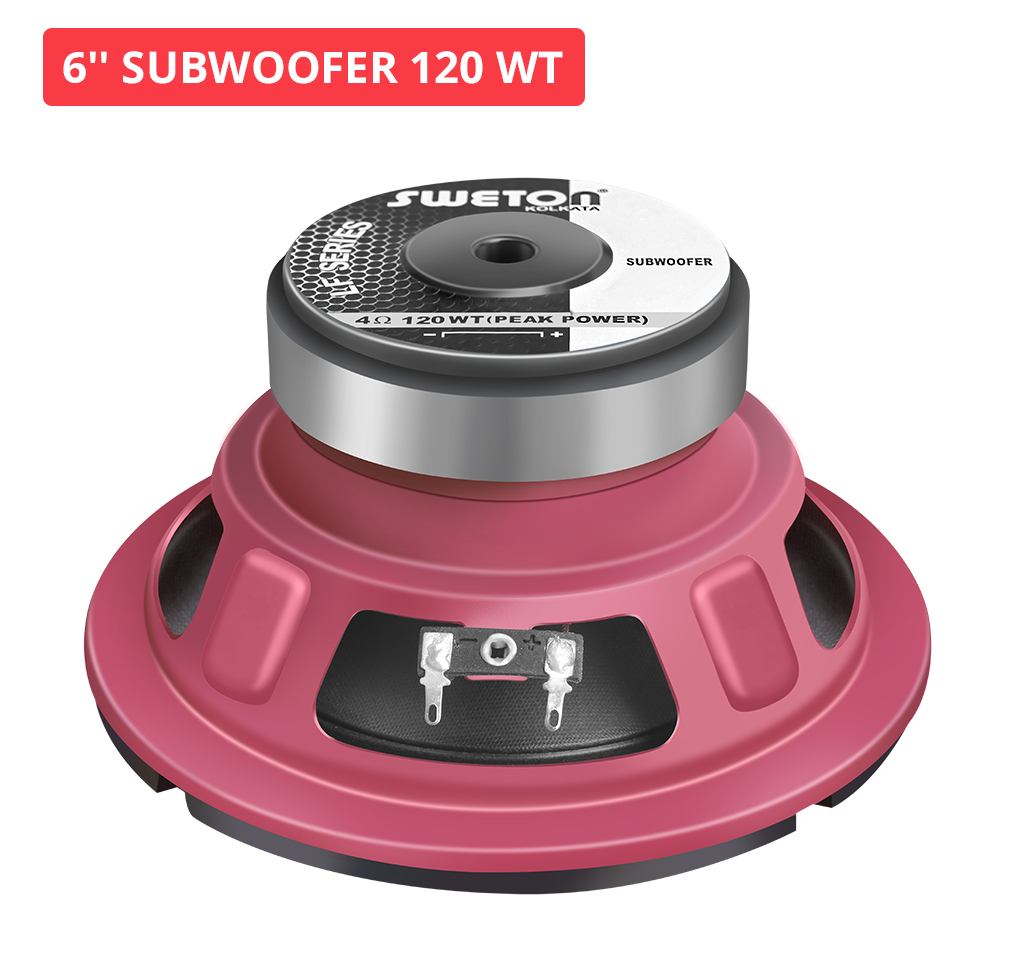

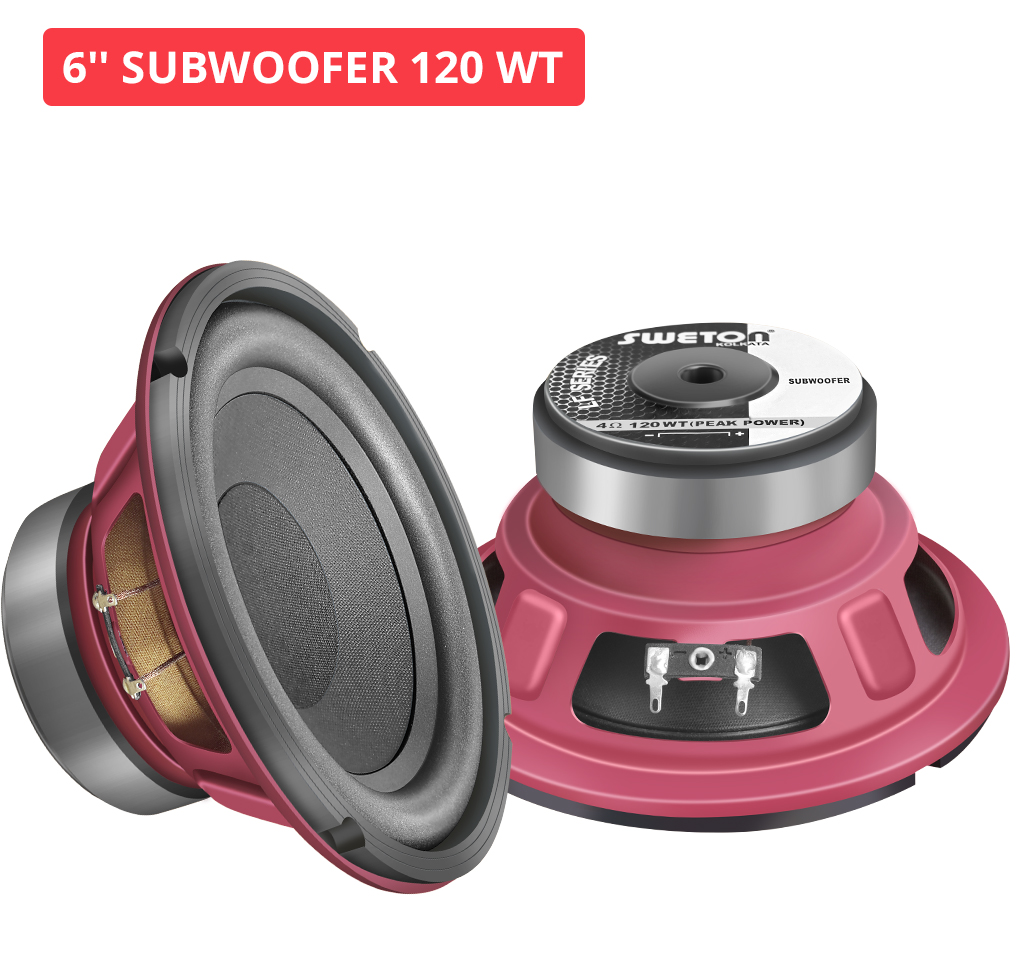

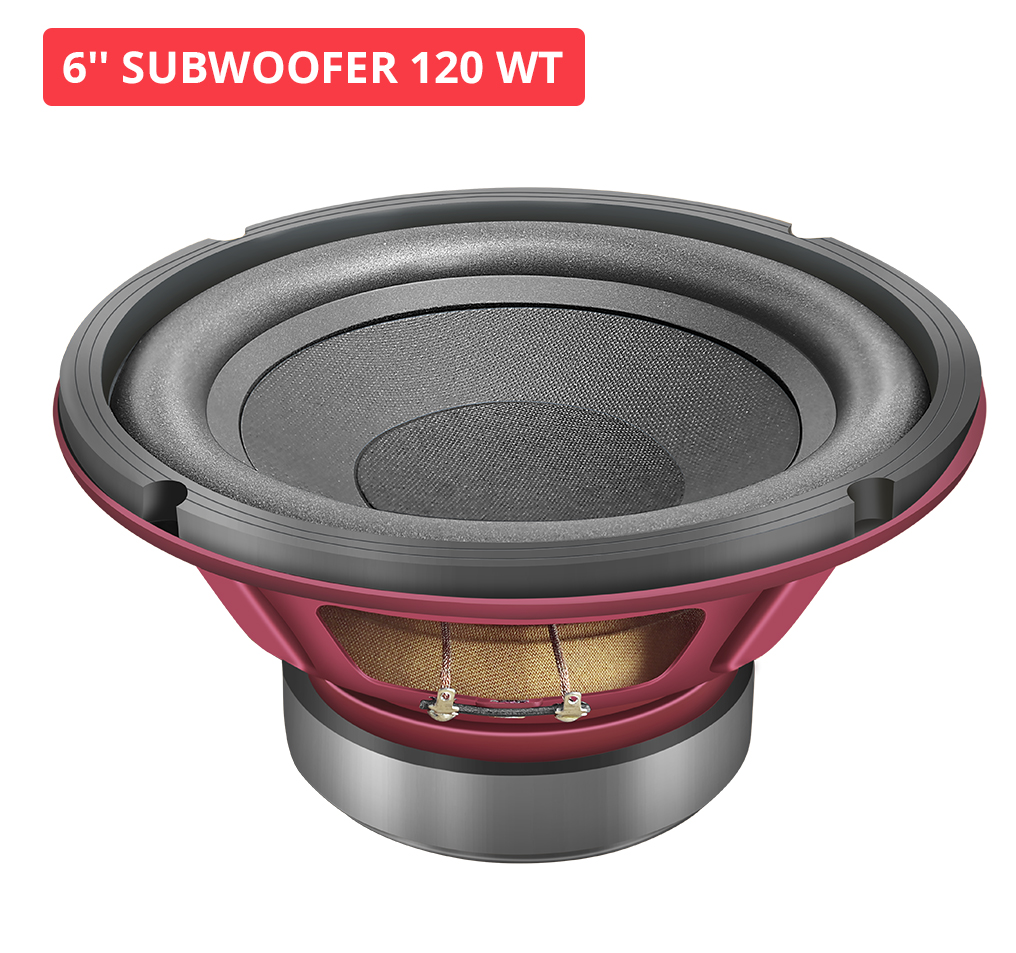

6'' SUBWOOFER 120 WT
- 4 Ohm
- Program Power : 60 W
- Voice Coil Diameter : 25.50 mm
- Response : 76-7.7K Hz
- Sensitivity (1W/1m) : 84 dB
Specification
Nominal Diameter
170 mm
Nominal Impedance
4.0 Ω
Nominal Power Handling (AES)
30 W
Program Power (AES)
120 W
Sensitivity (1W/1m)
84 dB
Frequency Range
76-7.7K Hz
Magnet Material
Ferrite
Voice Coil Dia
25.50 mm
Winding Material
COPPER
Former Material
KAPTON
Winding Type
Outside
T/S Parameters
Resonant Frequency (Fs)
76 Hz
DC Resistance (Re)
3.2 Ω
Electrical Q (Qes)
1.69
Mechanical Q (Qms)
11.02
Total Q (Qts)
1.46
Compliance Equivalent Volume (Vas)
5.53 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.08 Ltrs
Effective Surface Area of Cone (Sd)
143 cm^2
Reference Efficiency (no)
0.14%
Moving Mass including air load (Mms)
22.77 gms
Motor Strength (BL)
4.54 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.44 mH
Efficiency Bandwith Product (EBP)
45 Hz
Voice Coil Overhang (Xmax)
±5.88 mm
Mounting Info
Overall Diameter
170 mm
Baffle Cutout Diameter
146 mm
Depth
87 mm
Flange and Gasket Thickness
11 mm
Recone Kit
Recone Kit Number
REC6INCHSUB
