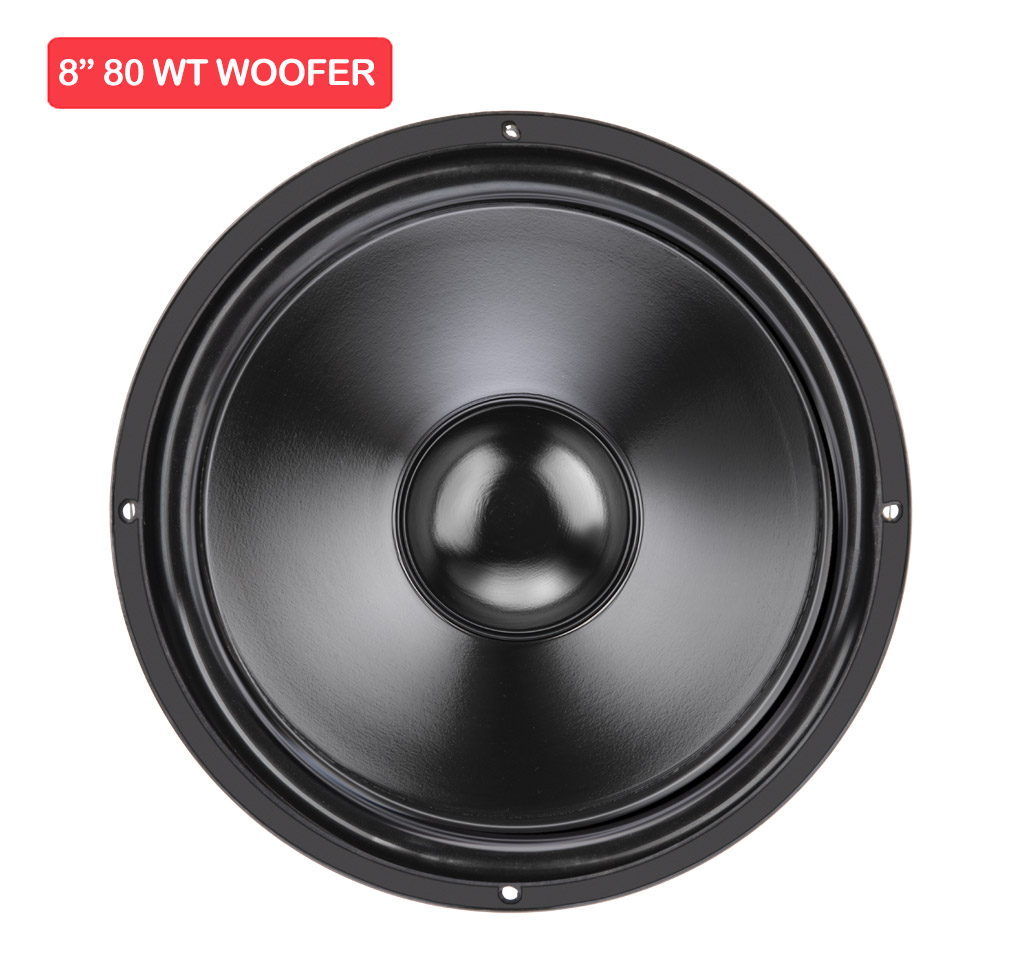

8" 80WT WOOFER
- 8 Ohm
- Program Power : 160 W
- Voice Coil Diameter : 25.4 mm
- Response : 58-5.7K Hz
- Sensitivity (1W/1m) : 88 dB
Specification
Nominal Diameter
215 mm
Nominal Impedance
8 Ω
Nominal Power Handling (AES)
80 W
Program Power (AES)
160 W
Sensitivity (1W/1m)
88 dB
Frequency Range
58-5.7K Hz
Magnet Material
Ferrite
Voice Coil Dia
25.4 mm
Winding Material
COPPER
Former Material
SV COATED KRAFT
Winding Type
Outside
T/S Parameters
Resonant Frequency (Fs)
58 Hz
DC Resistance (Re)
6.4 Ω
Electrical Q (Qes)
1.14
Mechanical Q (Qms)
5.48
Total Q (Qts)
0.94
Compliance Equivalent Volume (Vas)
23.16 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.13 Ltrs
Effective Surface Area of Cone (Sd)
227 cm^2
Reference Efficiency (no)
0.38%
Moving Mass including air load (Mms)
23.54 gms
Motor Strength (BL)
6.94 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.73 mH
Efficiency Bandwith Product (EBP)
51 Hz
Voice Coil Overhang (Xmax)
±5.88 mm
Mounting Info
Overall Diameter
215 mm
Baffle Cutout Diameter
195 mm
Depth
98.5 mm
Flange and Gasket Thickness
9.0 mm
Recone Kit
Recone Kit Number
REC8INCH80W
