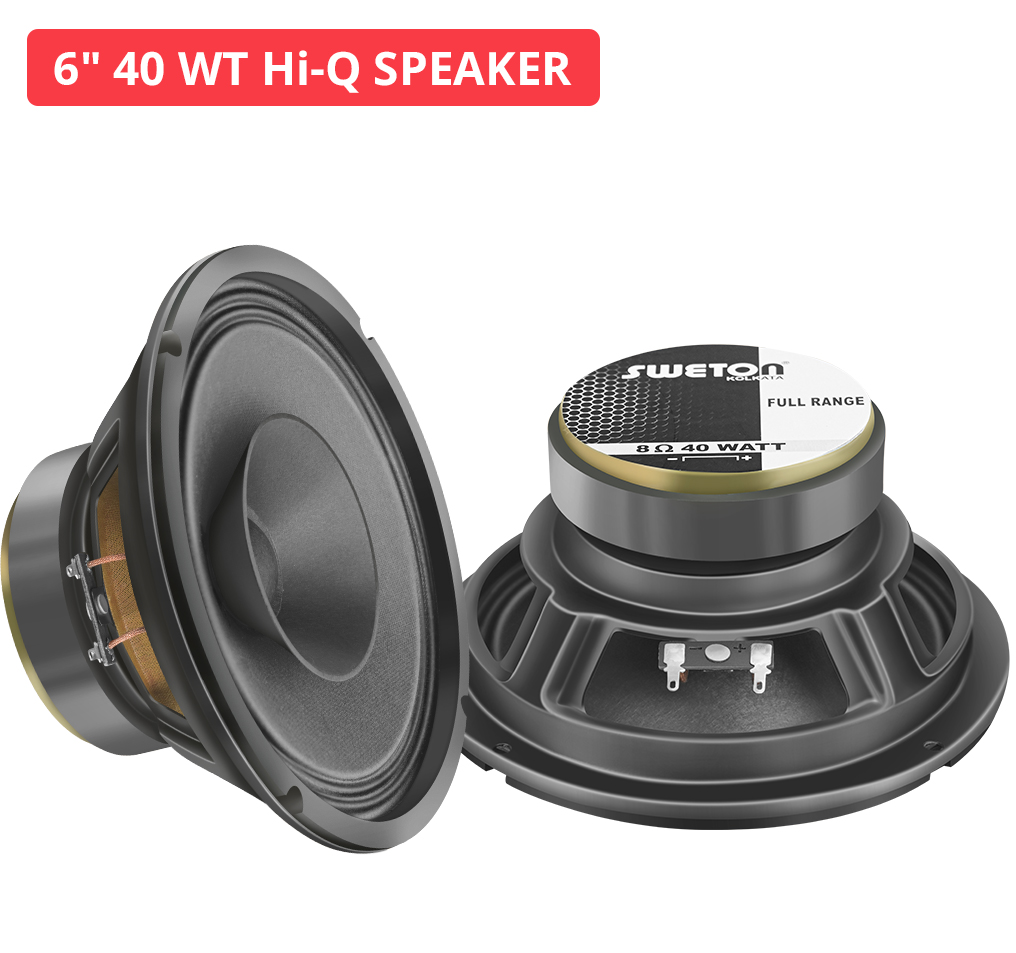

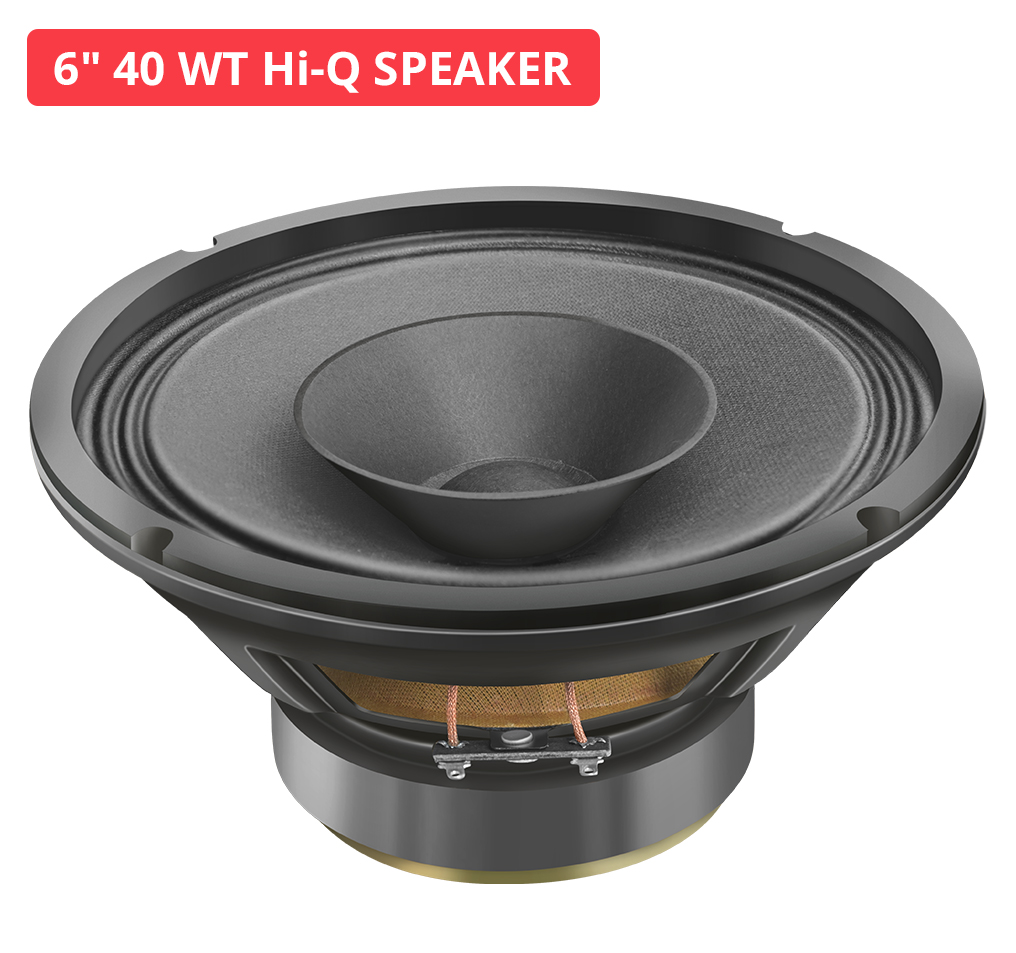

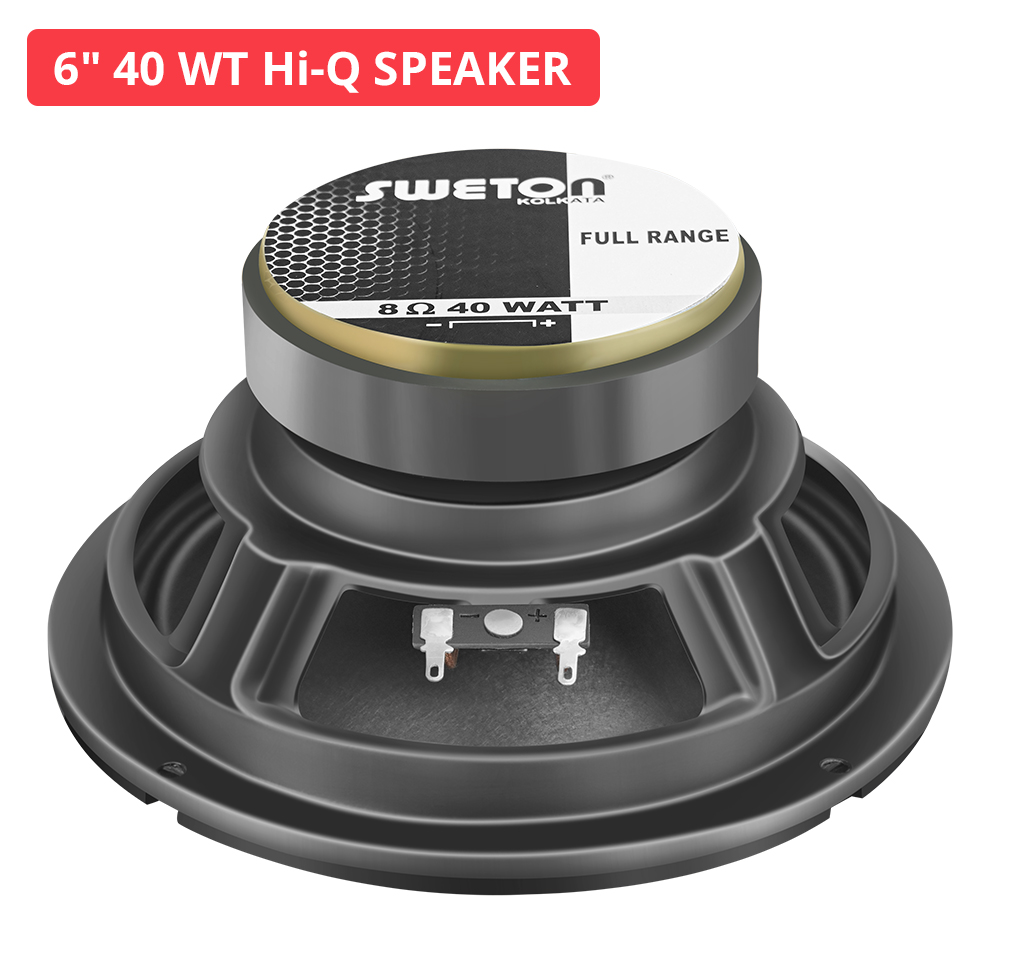

6" 40 WT FULL RANGE
- 8 Ohm
- Program Power : 80 W
- Voice Coil Diameter : 25.68 mm
- Response : 77-16.5K Hz
- Sensitivity (1W/1m) : 92 dB
Specification
Nominal Diameter
167.25 mm
Nominal Impedance
8.0 Ω
Nominal Power Handling (AES)
40 W
Program Power (AES)
80 W
Sensitivity (1W/1m)
92 dB
Frequency Range
77-16.5K Hz
Magnet Material
Ferrite
Voice Coil Dia
25.68 mm
Winding Material
COPPER
Former Material
NOMEX
Winding Type
Outside
T/S Parameters
Resonant Frequency (Fs)
77 Hz
DC Resistance (Re)
6 Ω
Electrical Q (Qes)
0.75
Mechanical Q (Qms)
8.61
Total Q (Qts)
0.69
Compliance Equivalent Volume (Vas)
18.20 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.03 Ltrs
Effective Surface Area of Cone (Sd)
143 cm^2
Reference Efficiency (no)
1.05%
Moving Mass including air load (Mms)
6.77 gms
Motor Strength (BL)
5.10 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.36 mH
Efficiency Bandwith Product (EBP)
102 Hz
Voice Coil Overhang (Xmax)
±1.69 mm
Mounting Info
Overall Diameter
167.25 mm
Baffle Cutout Diameter
147.25 mm
Depth
73 mm
Flange and Gasket Thickness
7.5 mm
Recone Kit
Recone Kit Number
REC6INCH40FR
