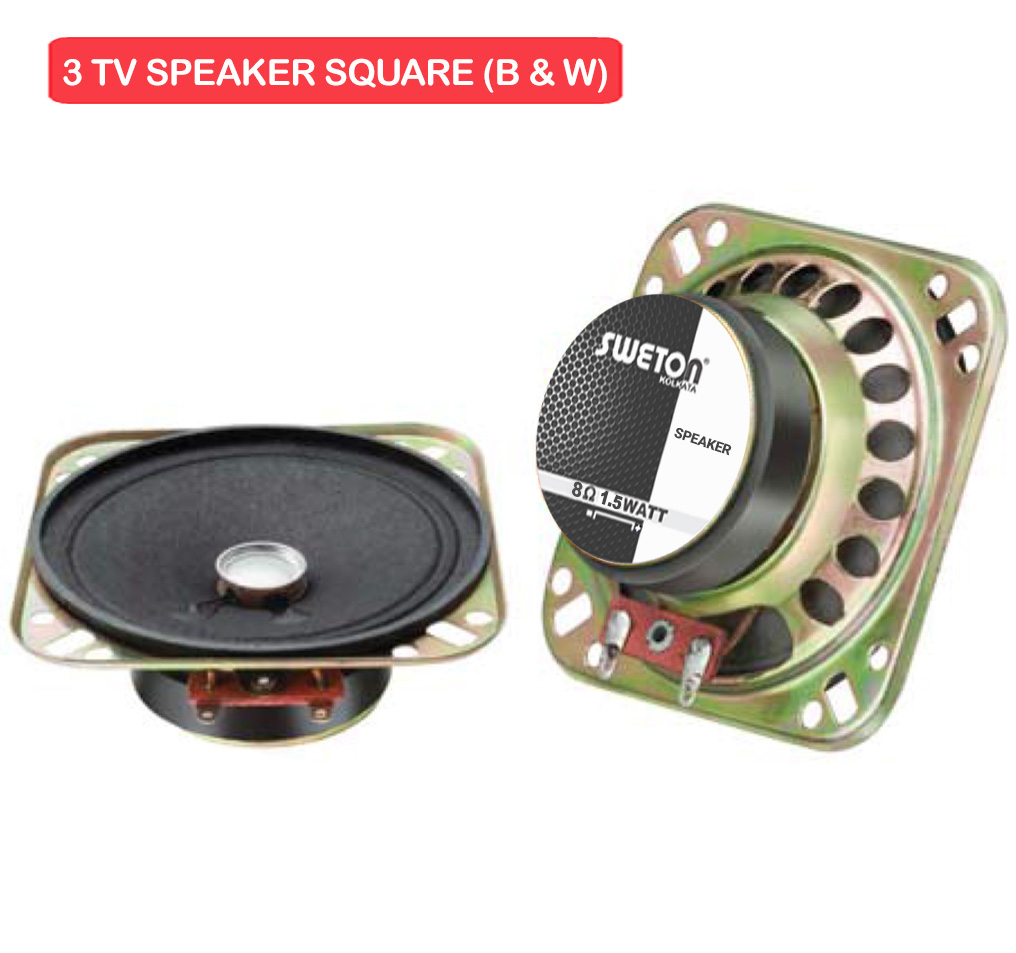

TV - CTV Series
Specification
| Nominal Diameter | 77mm |
| Nominal Impedance | 8Ω |
| Re | 7Ω |
| Power Handling(AES) | 1.5w |
| Continuous Program Power | 3w |
| Sensitivity I w/IM | 91db |
| Voice Coil Dia | 13.5mm |
| Le@1KHz | 0.07mH |
T/S Parameters
| FS | 242Hz |
| Qes | 2.13 |
| Qms | 3.87 |
| Qts | 1.37 |
| vas | 1.21lt |
| Mms | 0.96g |
| Mmd | 0.80g |
| Bl | 2.19T-m |
| Gross Weight | 0.164kg |
Specification
| Nominal Diameter | 105mm |
| Nominal Impedance | 8Ω |
| Re | 6Ω |
| Power Handling(AES) | 5w |
| Continuous Program Power | 10w |
| Sensitivity I w/IM | 92db |
| Voice Coil Dia | 14.5mm |
| Le@1KHz | 0.1mH |
T/S Parameters
| FS | 205Hz |
| Qes | 2.44 |
| Qms | 4.70 |
| Qts | 1.60 |
| vas | 2.87lt |
| Mms | 1.79g |
| Mmd | 1.40g |
| Bl | 2.38T-m |
| Gross Weight | 0.258kg |
