Subwoofer Series
Specification
| Nominal Diameter | 81 mm |
| Nominal Impedance | 4 Ω |
| Program Power | 10 w |
| Peak Power | 20 w |
| Sensitivity I W/IM | 85 db |
| Voice Coil Dia | 15 mm |
| Product Weight | 0.15 Kg |
T/S Parameters
| FS | 167 Hz |
| Qes | 1.88 |
| Qms | 3.91 |
| Qts | 1.27 |
| vas | 0.93 lt |
| Mms | 1.34 g |
| Mmd | 1 g |
| Bl | 1.62 T-m |
Specification
| Nominal Diameter | 105 mm |
| Nominal Impedance | 4 Ω |
| Program Power | 30 w |
| Peak Power | 60 w |
| Sensitivity I W/IM | 81 db |
| Voice Coil Dia | 25.4 mm |
| Product Weight | 0.50 Kg |
T/S Parameters
| FS | 90 Hz |
| Qes | 1.17 |
| Qms | 4.40 |
| Qts | 0.92 |
| vas | 1.58 lt |
| Mms | 7.23 g |
| Mmd | 7 g |
| Bl | 3.49 T-m |
Specification
| Nominal Diameter | 135 mm |
| Nominal Impedance | 4 Ω |
| Program Power | 50 w |
| Peak Power | 100 w |
| Sensitivity I W/IM | 84 db |
| Voice Coil Dia | 25.4 mm |
| Product Weight | 0.55 Kg |
T/S Parameters
| FS | 73 Hz |
| Qes | 1.14 |
| Qms | 5.00 |
| Qts | 0.93 |
| vas | 5.21 lt |
| Mms | 12.08 g |
| Mmd | 11 g |
| Bl | 3.89 T-m |
Specification
| Nominal Diameter | 170 mm |
| Nominal Impedance | 4 Ω |
| Program Power | 60 w |
| Peak Power | 120 w |
| Sensitivity I W/IM | 85 db |
| Voice Coil Dia | 25.5 mm |
| Product Weight | 1.20 Kg |
T/S Parameters
| FS | 63 Hz |
| Qes | 1.10 |
| Qms | 5.26 |
| Qts | 0.91 |
| vas | 9.36 lt |
| Mms | 19.48 g |
| Mmd | 18 g |
| Bl | 4.71 T- m |
Specification
| Nominal Diameter | 210 mm |
| Nominal Impedance | 4 Ω |
| Program Power | 100 w |
| Peak Power | 200 w |
| Sensitivity I W/IM | 88 db |
| Voice Coil Dia | 35 mm |
| Product Weight | 1.70 Kg |
T/S Parameters
| FS | 57 Hz |
| Qes | 0.76 |
| Qms | 5.12 |
| Qts | 0.66 |
| vas | 16.54 lt |
| Mms | 28.20 g |
| Mmd | 26 g |
| Bl | 6.84 T-m |
Specification
| Nominal Diameter | 256 mm |
| Nominal Impedance | 4 Ω |
| Program Power | 160 w |
| Peak Power | 320 w |
| Sensitivity I W/IM | 87 db |
| Voice Coil Dia | 44 mm |
| Product Weight | 2.70 Kg |
T/S Parameters
| FS | 44 Hz |
| Qes | 0.89 |
| Qms | 5.35 |
| Qts | 0.76 |
| vas | 33.83 lt |
| Mms | 58.08 g |
| Mmd | 54 g |
| Bl | 7.97 T-m |

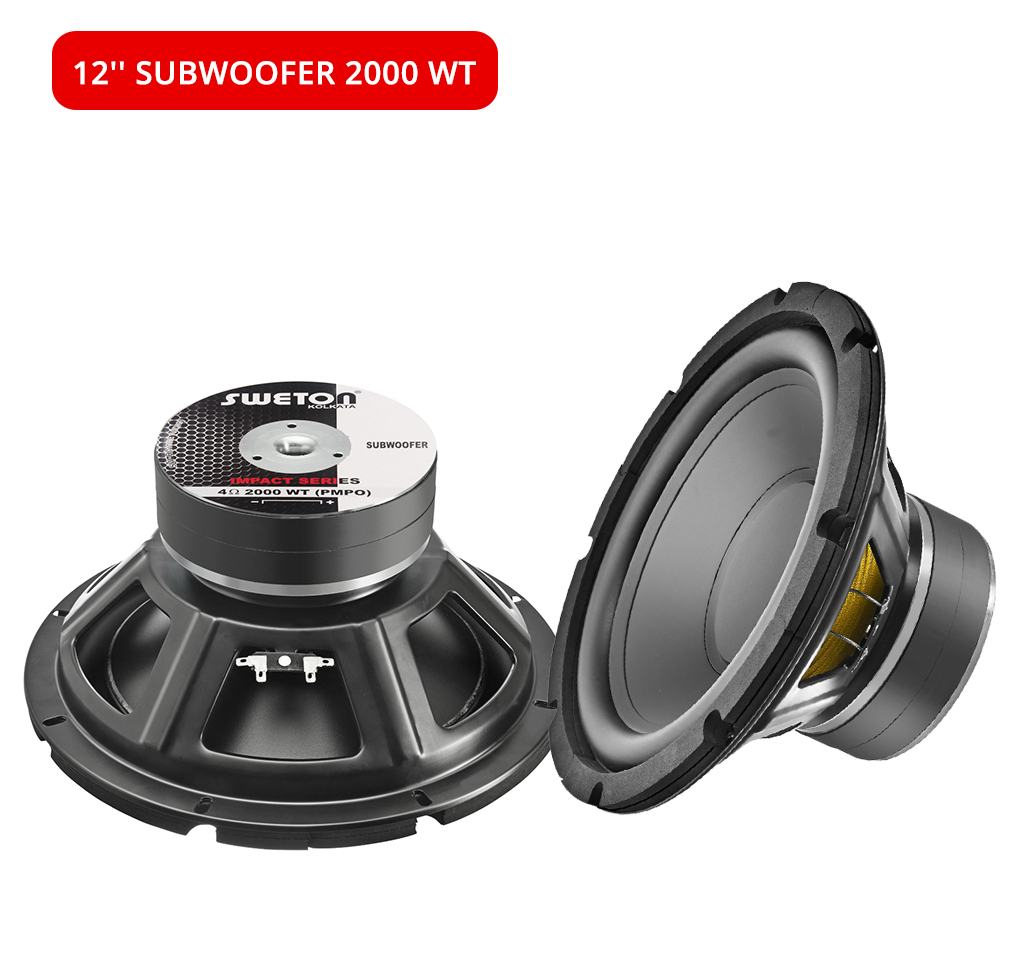

Specification
| Nominal Diameter | 320 mm |
| Nominal Impedance | 4 Ω |
| Power Handling(AES) | 500 w |
| Program Power | 2000 w |
| Sensitivity I W/IM | 89 db |
| Voice Coil Dia | 49.5 mm |
| Product Weight | 6.60 Kg |
T/S Parameters
| FS | 32 Hz |
| Qes | 0.5 |
| Qms | 4.42 |
| Qts | 0.45 |
| vas | 70 It |
| Mms | 118.36 g |
| Mmd | 111.98 g |
| Bl | 12.05 T-m |
