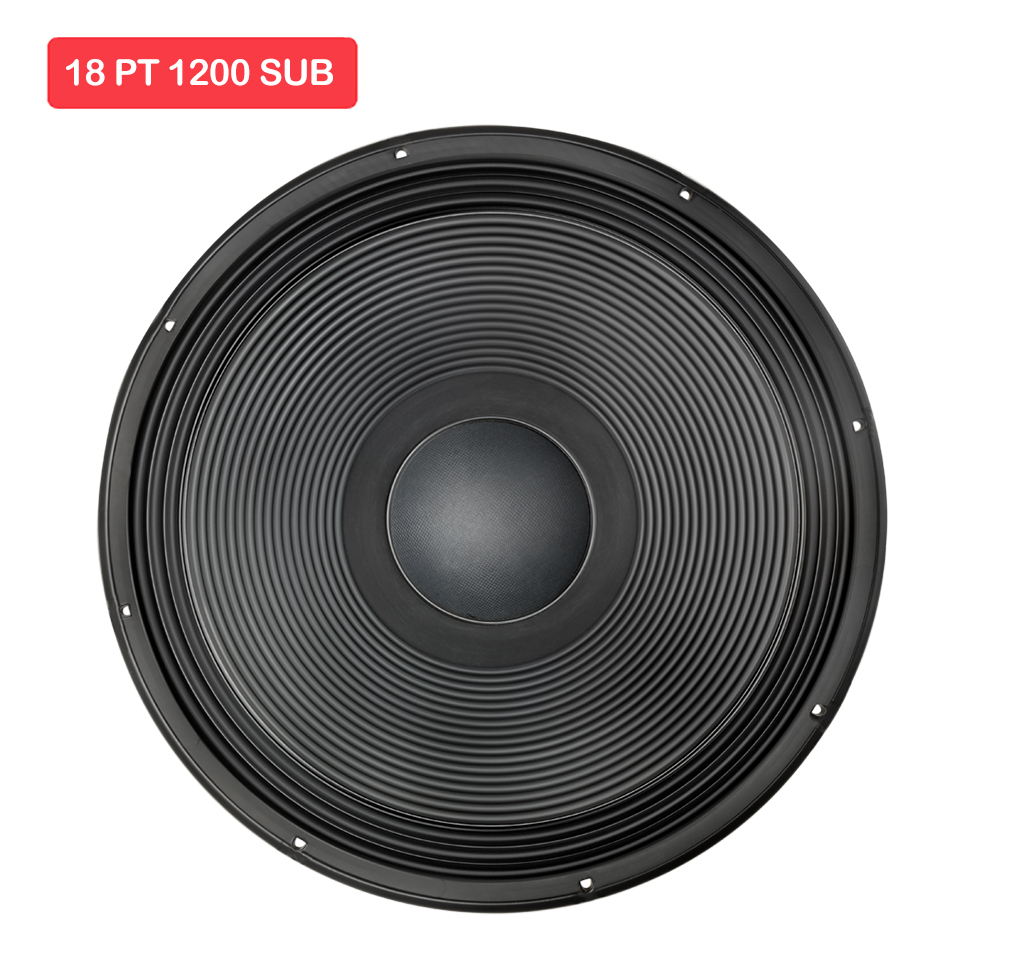

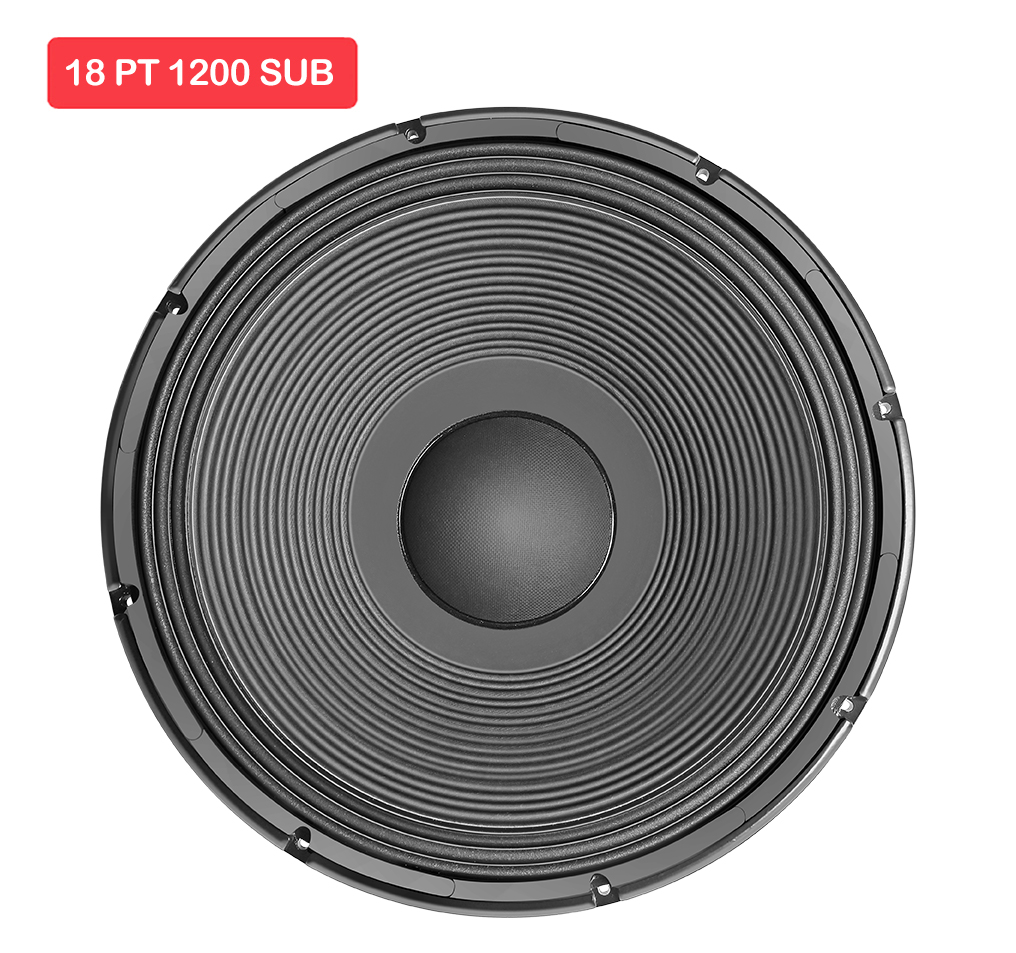

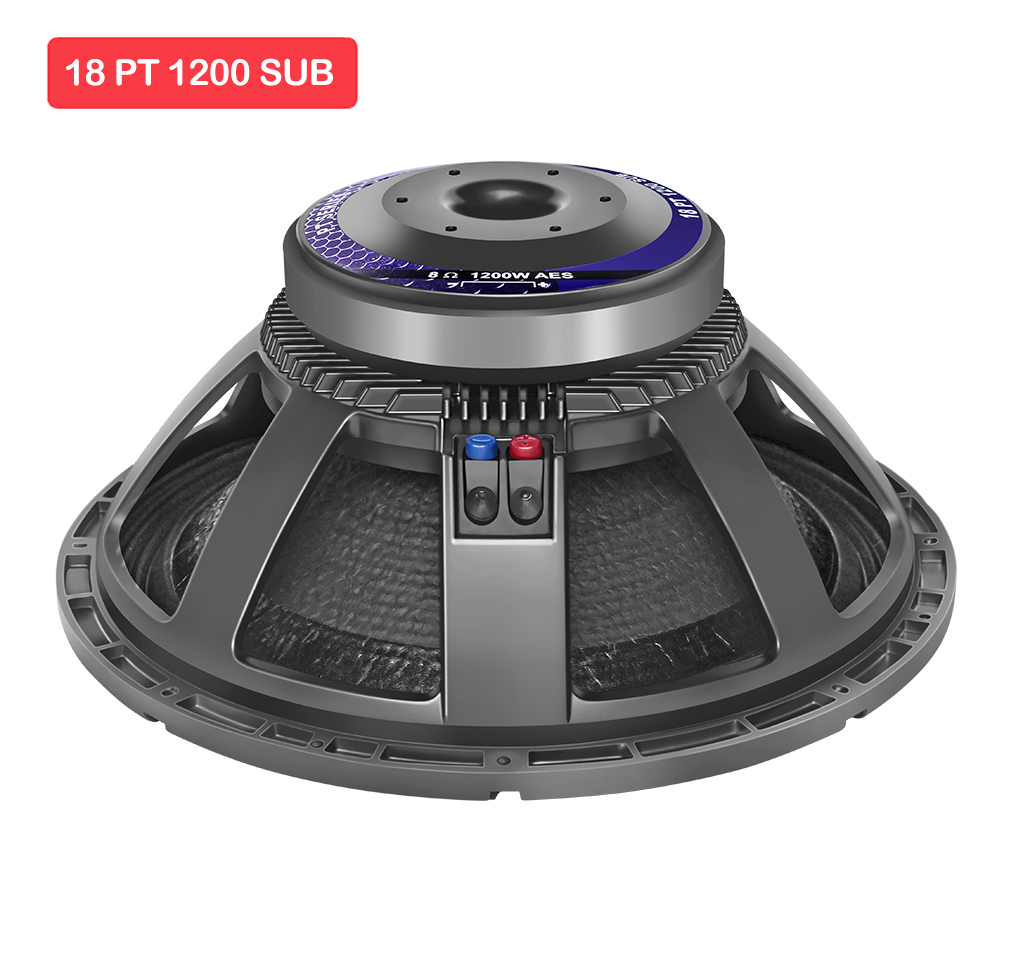

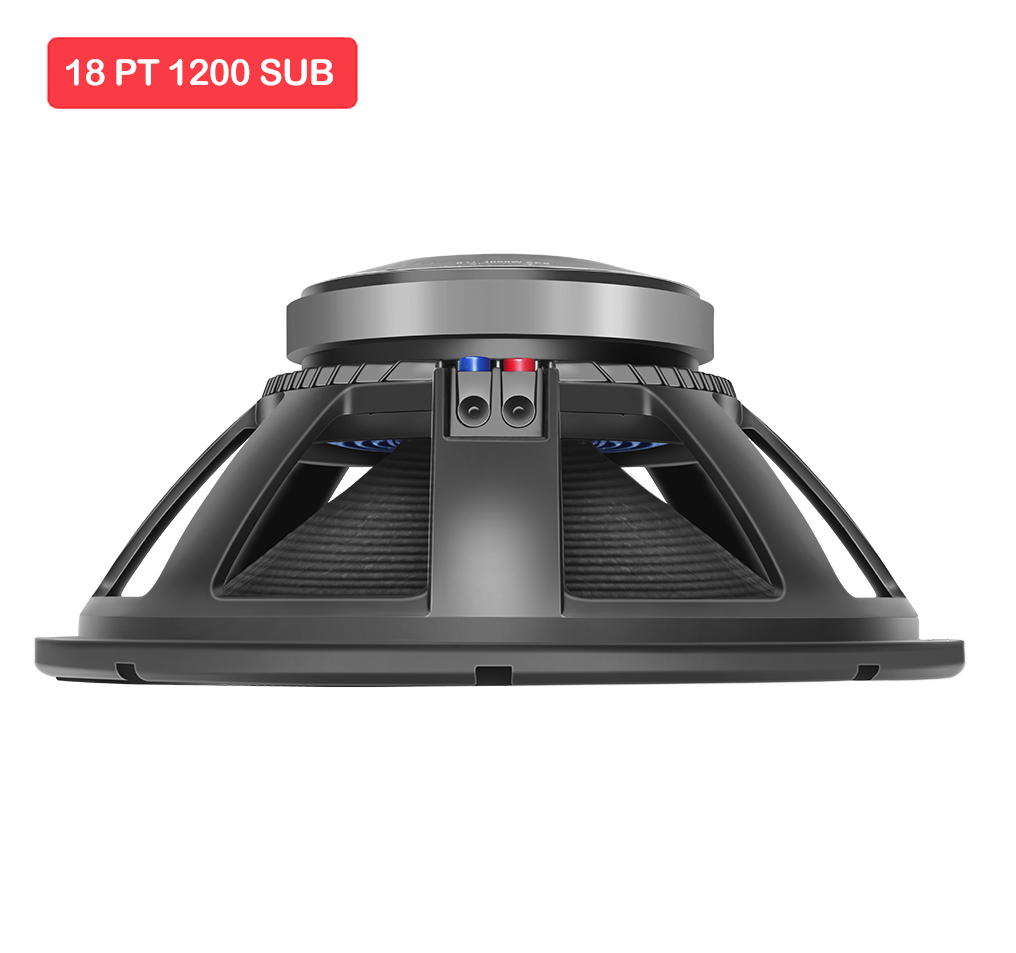

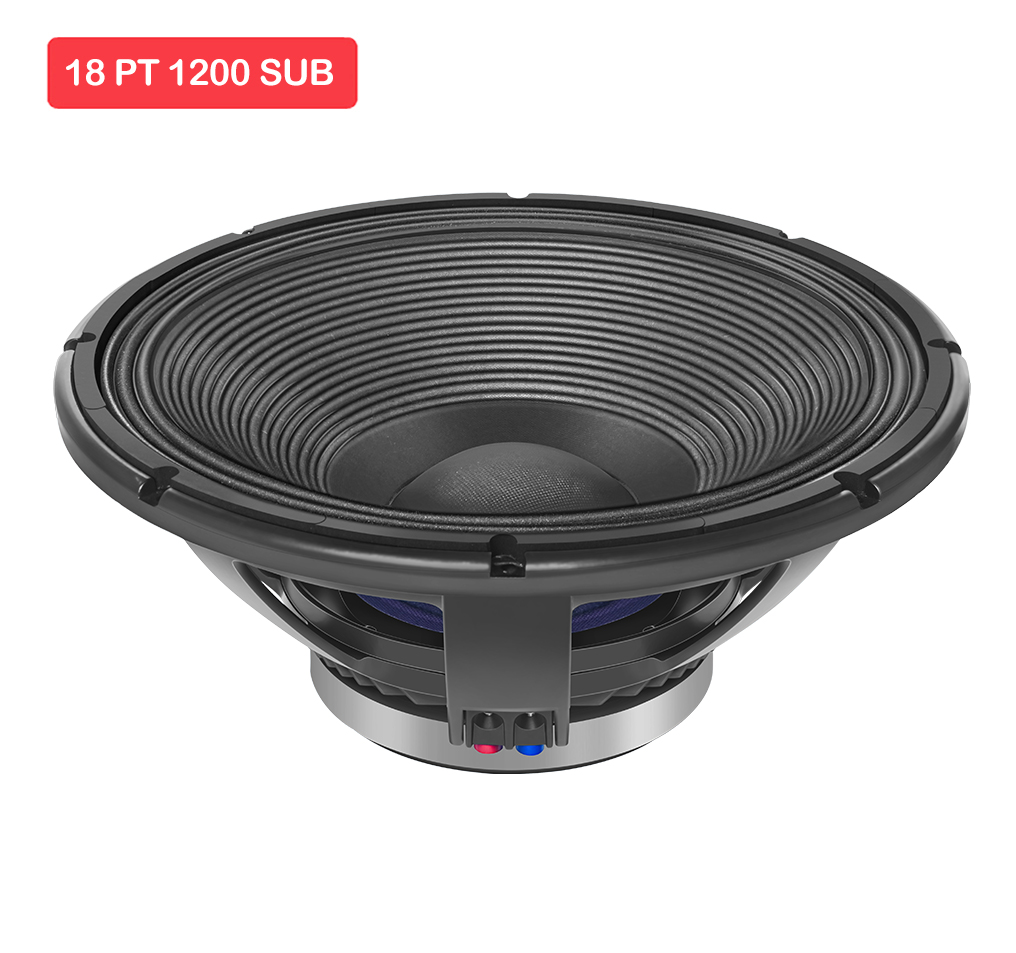

18 PT 1200 SUB
This Sub woofer transducer having good low frequency response and ideal for DJ and Live application. Can be used in Dual Subs and W Bin. Horn Loaded. Suitable for both Bass Reflex or Sealed Enclosure.
| Key Features | |
| Program Power | 2400 W |
| Voice Coil | 99.3 mm (4 in) |
| Response | 41-2000 Hz |
| Sensitivity 1W/1M | 94 dB |
Specification
| Nominal Diameter | 465 mm |
| Nominal Impedance | 8Ω |
| Nominal Power Handling(AES) | 1200 W |
| Program Power | 2400 W |
| Sensitivity (1W/1m) | 94 dB |
| Frequency Range | 41-2000 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 99.3 mm ( 4 in) |
| Winding Material | COPPER |
| Former Material | GLASS FIBRE |
| Winding Type | In/Out |
Parameters
| Resonant Frequency | FS | 41 Hz |
| DC Resistance | Re | 6.4 Ω |
| Electrical Q | Qes | 0.56 |
| Mechanical Q | Qms | 14.48 |
| Total Q | Qts | 0.54 |
| Compliance Equivalent Volume | vas | 135.14 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 1.55 Ltrs |
| Effective Surface Area of Cone | Sd | 1225.42 cm^2 |
| Reference Efficiency | ƞo | 1.66% |
| Moving Mass including air load | Mms | 229.7 gms |
| Motor Strength | Bl | 26.28 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.91 mH |
| Efficiency Bandwith Product | EBP | 73 Hz |
| Voice Coil Overhang | Xmax | ±6.3 mm |
Mounting Info
| Overall Diameter | 465 mm |
| Bolt Circle Diameter | 448 mm |
| Baffle Cutout Diameter | 426 mm |
| Depth | 190 mm |
| Flange and Gasket Thickness | 20 mm |
| Gross Weight | 17 Kg. |
Recone Kit
| Recone Kit Number | REC18PT1200SUB |
