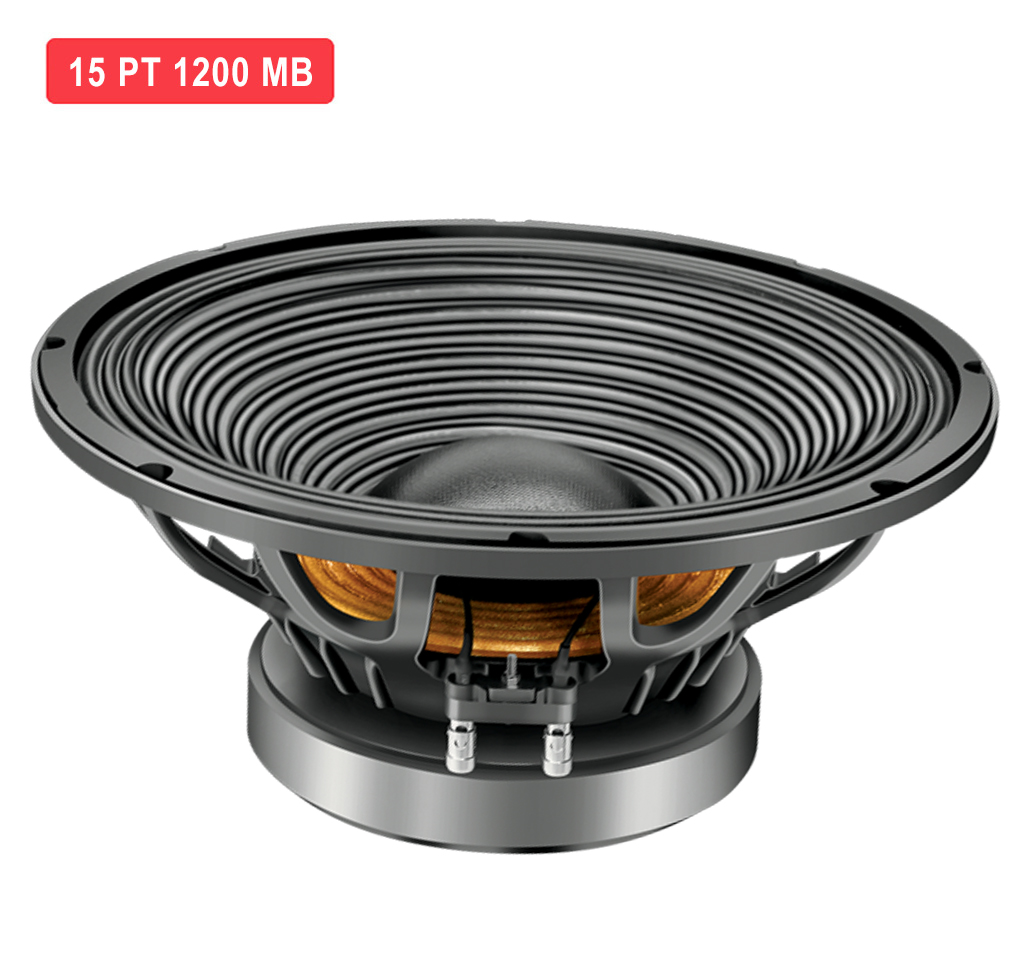

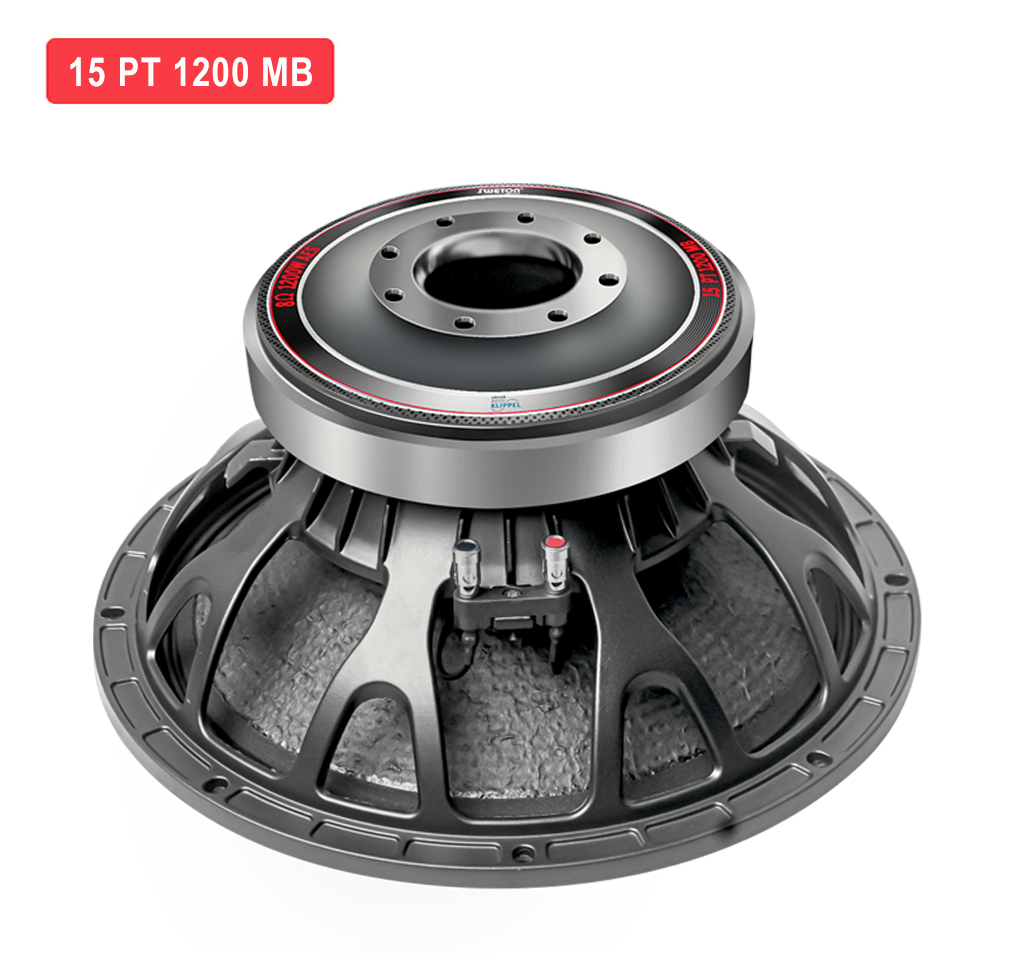

15 PT 1200 MB
15 PT 1200 MB is a mid bass transducer with extended low.This low mid transducer reproduces boomy bass with clear mid frequencies making it ideal for Single or Dual Top. This transducer is a perfect complement for any Sub Woofer used for competition or open fi eld application.Suitable for Bass Reflex / Ported Enclosure.
| Key Features | |
| Program Power | 2400 W |
| Voice Coil | 99.3 mm (4 in) |
| Response | 40-2800 Hz |
| Sensitivity 1W/1M | 95 dB |
Specification
| Nominal Diameter | 394 mm |
| Nominal Impedance | 8 Ω |
| Gross Weight | 13.900 Kg. |
| Nominal Power Handling(AES) | 1200W |
| Program Power | 2400W |
| Sensitivity (1W/1m) | 95 dB |
| Frequency Range | 40-2800 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 99.3 mm ( 4 in) |
| Winding Material | COPPER |
| Former Material | GLASS FIBRE |
| Winding Type | In/Out |
Parameters
| Resonant Frequency | FS | 40 Hz |
| DC Resistance | Re | 6.7 Ω |
| Electrical Q | Qes | 0.34 |
| Mechanical Q | Qms | 17.13 |
| Total Q | Qts | 0.34 |
| Compliance Equivalent Volume | vas | 115.97 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.41 Ltrs |
| Effective Surface Area of Cone | Sd | 876.16 cm^2 |
| Reference Efficiency | ƞo | 2.07% |
| Moving Mass including air load | Mms | 147.50 gms |
| Motor Strength | Bl | 26.89 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 1.18 mH |
| Efficiency Bandwith Product | EBP | 118 Hz |
| Voice Coil Overhang | Xmax | ±7 mm |
Mounting Info
| Overall Diameter | 394 mm |
| Bolt Circle Diameter | 375 mm |
| Baffle Cutout Diameter | 352 mm |
| Depth | 182 mm |
| Flange and Gasket Thickness | 13 mm |
| Gross Weight | 13.90 Kg. |
Recone Kit
| Recone Kit Number | REC15PT1200MB |
