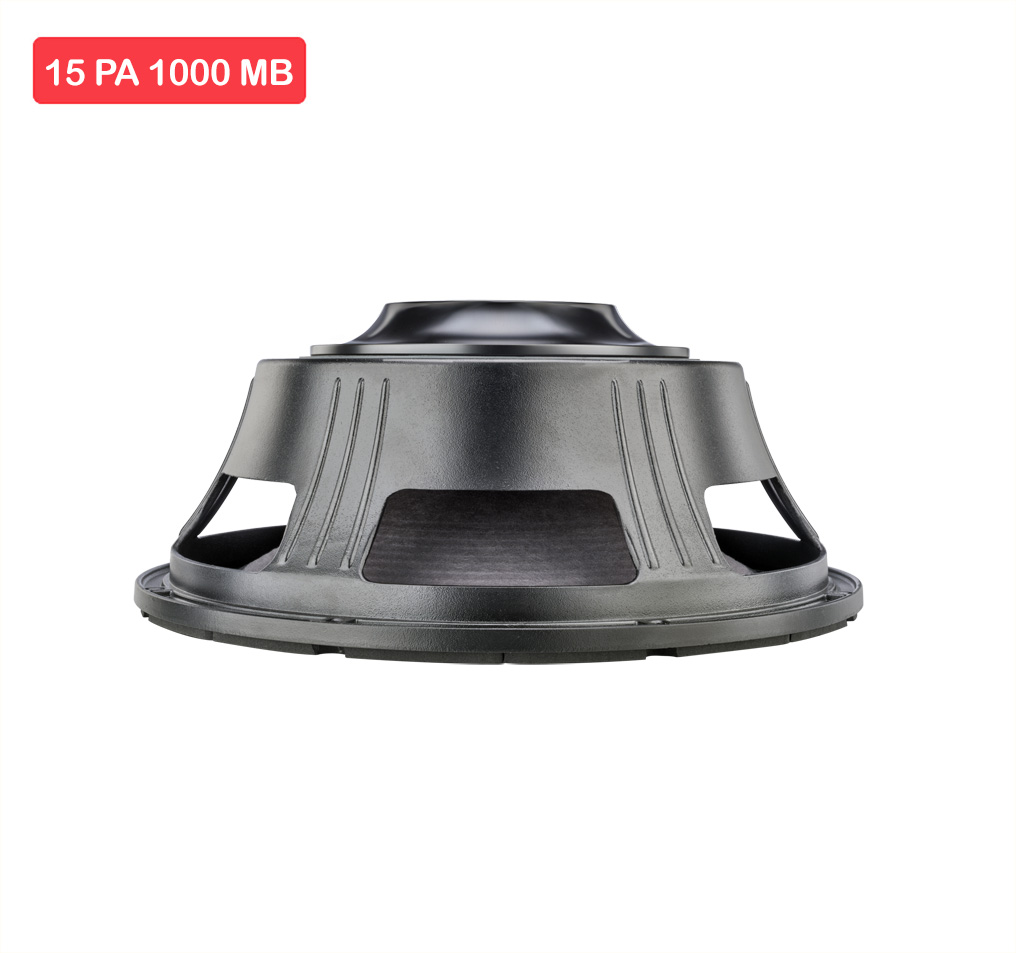

15 PA 1000 MB

- Very Powerful Mid Bass speaker.
- At par with imported one.
- Direct Rediating / Front firing cabinet.

Key Features
Program Power 2000w
Voice Coil 99.3 mm (4 in)
Response 46-2800 Hz
Sensitivity 1W/1M 97 dB

Specification

Nominal Diameter 395 mm
Nominal Impedance
Nominal Power Handling(AES) 1000w
Program Power 2000w
Sensitivity (1W/1m) 97db
Frequency Range 46-2800 Hz
Magnet Material Ferrite
Voice Coil Diameter 99.3 mm ( 4 in)
Winding Material CCAR
Former Material Glass Fibre
Winding Type Outside

Parameters

Resonant Frequency FS 46 Hz
DC Resistance Re 5.0 Ω
Electrical Q Qes 0.37
Mechanical Q Qms 9.69
Total Q Qts 0.35
Compliance Equivalent Volume vas 107 ltrs
Peak Diaphragm Displacement Volume Vd 0.41 Ltrs
Effective Surface Area of Cone Sd 913.3 cm^2
Reference Efficiency ƞo 2.77%
Moving Mass including air load Mms 128.82 gms
Motor Strength Bl 22.59 T-m
Voice Coil Inductance @ 1 KHz Le 1.66 mH
Efficiency Bandwith Product EBP 124 Hz
Voice Coil Overhang Xmax ±4.5 mm

Mounting Info

Overall Diameter 395 mm
Bolt Circle Diameter 380 mm
Baffle Cutout Diameter 361 mm
Depth 160 mm
Flange and Gasket Thickness 16 mm
Gross Weight 15.280 Kg.

Recone Kit

Recone Kit Number REC15PA1000MB
