15 PA 300 XP MB
Very good Mid Bass speaker with excellent Mid. Direct Rediating / Front firing Single / Dual top.
| Key Features | |
| Program Power | 600w |
| Voice Coil | 76.2 mm (3 in) |

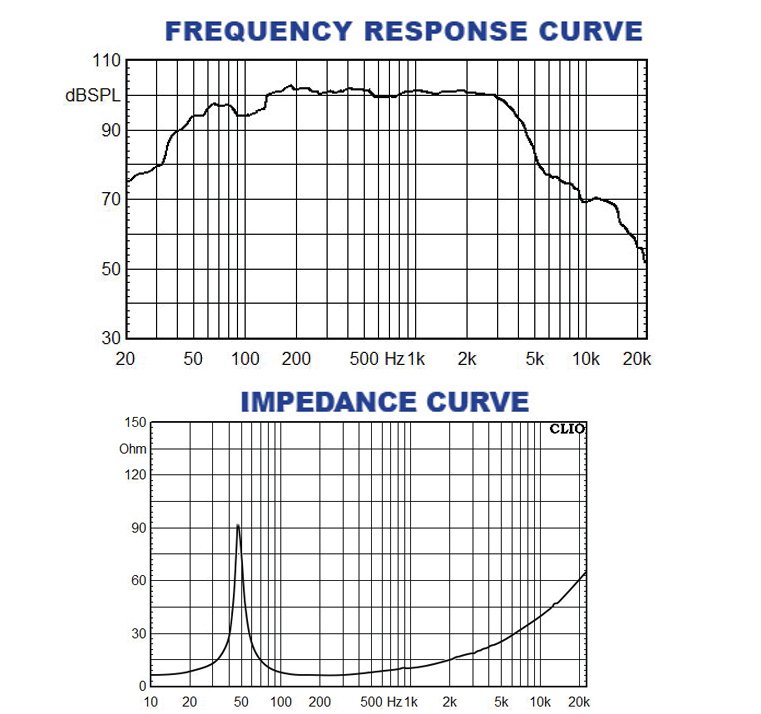

| Response | 47-4100 Hz |
| Sensitivity 1W/1M | 98 dB |
Specification
| Nominal Diameter | 390 mm |
| Nominal Impedance | 8Ω |
| Gross Weight | 10.170 Kg. |
| Nominal Power Handling(AES) | 300w |
| Program Power | 600w |
| Sensitivity (1W/1m) | 98db |
| Frequency Range | 47-4100 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 76.2 mm ( 3 in) |
| Winding Material | CCAW |
| Former Material | GLASS FIBRE |
| Winding Type | OUTSIDE |
Parameters
| Resonant Frequency | FS | 47 Hz |
| DC Resistance | Re | 5.2 Ω |
| Electrical Q | Qes | 0.47 |
| Mechanical Q | Qms | 7.93 |
| Total Q | Qts | 0.44 |
| Compliance Equivalent Volume | vas | 162 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.36 Ltrs |
| Effective Surface Area of Cone | Sd | 907.9 cm^2 |
| Reference Efficiency | ƞo | 3.48% |
| Moving Mass including air load | Mms | 90.4g |
| Motor Strength | Bl | 16.26 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.88 mH |
| Efficiency Bandwith Product | EBP | 100 Hz |
| Voice Coil Overhang | Xmax | ±3.95 mm |
Mounting Info
| Overall Diameter | 390 mm |
| Bolt Circle Diameter | 375 mm |
| Baffle Cutout Diameter | 356 mm |
| Depth | 164 mm |
| Flange and Gasket Thickness | 12 mm |
| Gross Weight | 10.170 Kg. |
Recone Kit
| Recone Kit Number | REC15PA300XP |
