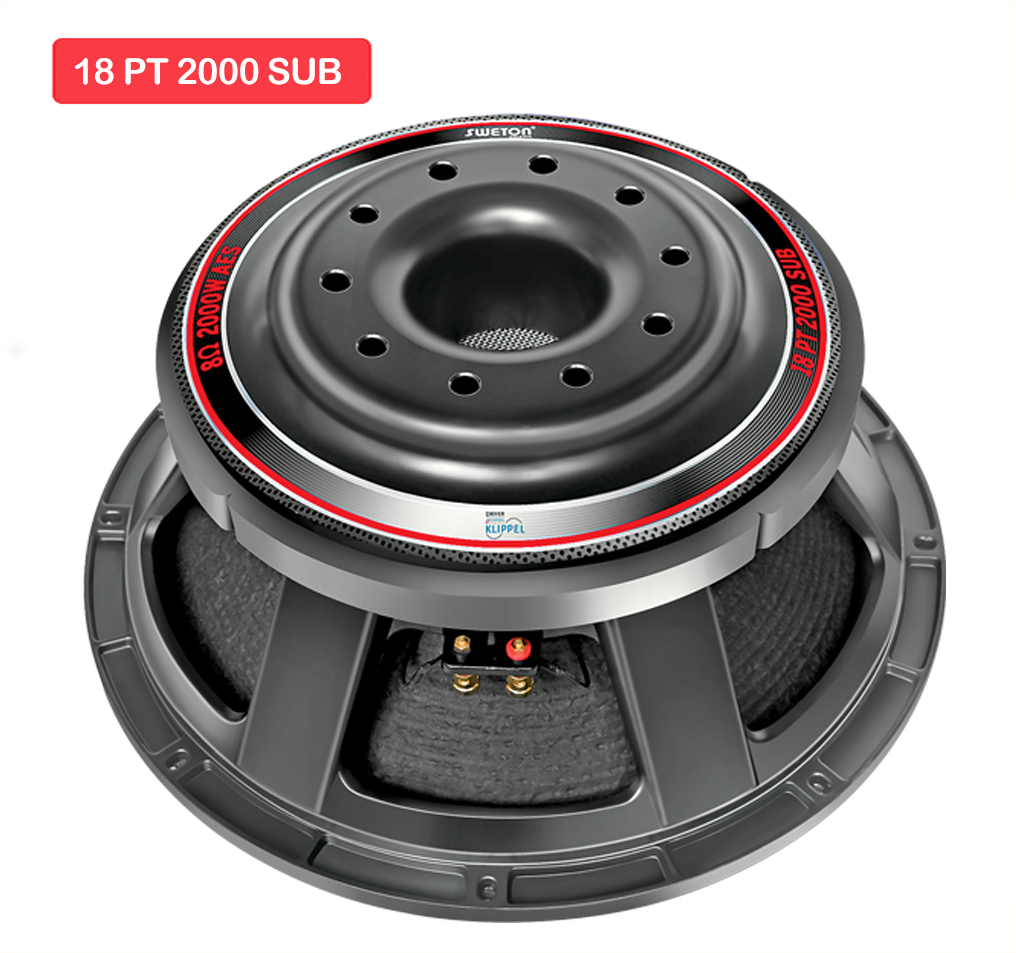

18 PT 2000 SUB
The ultimate 18” Subwoofer transducer with 152 mm voice coil & 330 mm magnet produces unbelievable 2000 wt AES power.
Better than any other similar product available in Indian market. It can reproduce low frequency from 32 Hz.
Excellent transducer for outdoor performance , DJ & Competition. Ideal for Horn loaded , Bass reflex cabinet.
| Key Features | |
| Program Power | 4000 W |
| Voice Coil | 152 mm (6 in) |

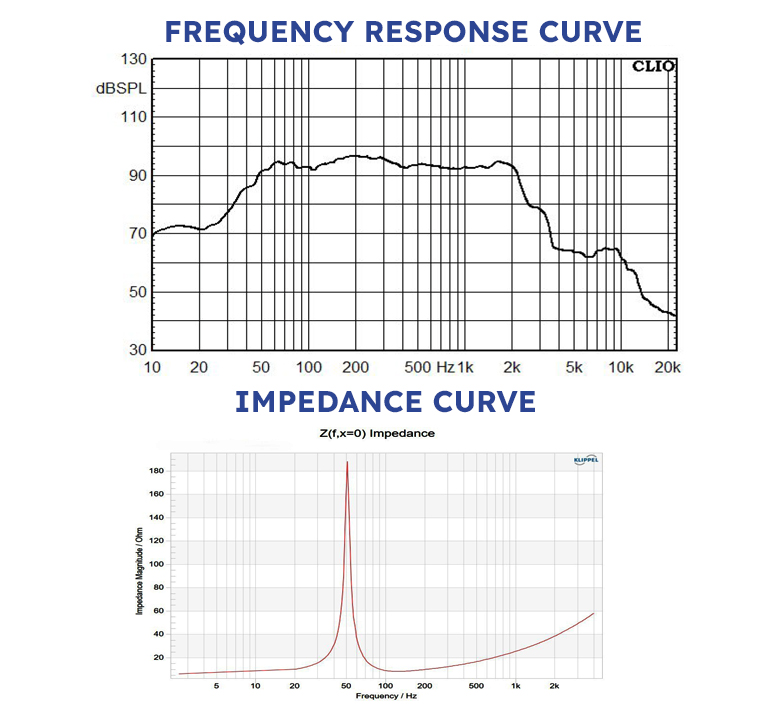

| Response | 50-1600 Hz |
| Sensitivity 1W/1M | 94 dB |
Specification
| Nominal Diameter | 464 mm |
| Nominal Impedance | 8Ω |
| Nominal Power Handling(AES) | 2000w |
| Program Power | 4000w |
| Sensitivity (1W/1m) | 94 dB |
| Frequency Range | 50-1600 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 152 mm ( 6.0 in) |
| Winding Material | COPPER |
| Former Material | GLASS FIBRE |
| Winding Type | In/Out |
Parameters
| Resonant Frequency | FS | 51 Hz |
| DC Resistance | Re | 6.09 Ω |
| Electrical Q | Qes | 0.47 |
| Mechanical Q | Qms | 13.98 |
| Total Q | Qts | 0.45 |
| Compliance Equivalent Volume | vas | 61.29 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 3.01 Ltrs |
| Effective Surface Area of Cone | Sd | 1237.86 cm^2 |
| Reference Efficiency | ƞo | 1.63% |
| Moving Mass including air load | Mms | 347 gms |
| Motor Strength | Bl | 37.88 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 1.27 mH |
| Efficiency Bandwith Product | EBP | 108 Hz |
| Voice Coil Overhang | Xmax | ±12.10 mm |
Mounting Info
| Overall Diameter | 464 mm |
| Bolt Circle Diameter | 445 mm |
| Baffle Cutout Diameter | 420 mm |
| Depth | 214 mm |
| Flange and Gasket Thickness | 16 mm |
| Gross Weight | 48 Kg. |
Recone Kit
| Recone Kit Number | REC18PT2000SUB |
