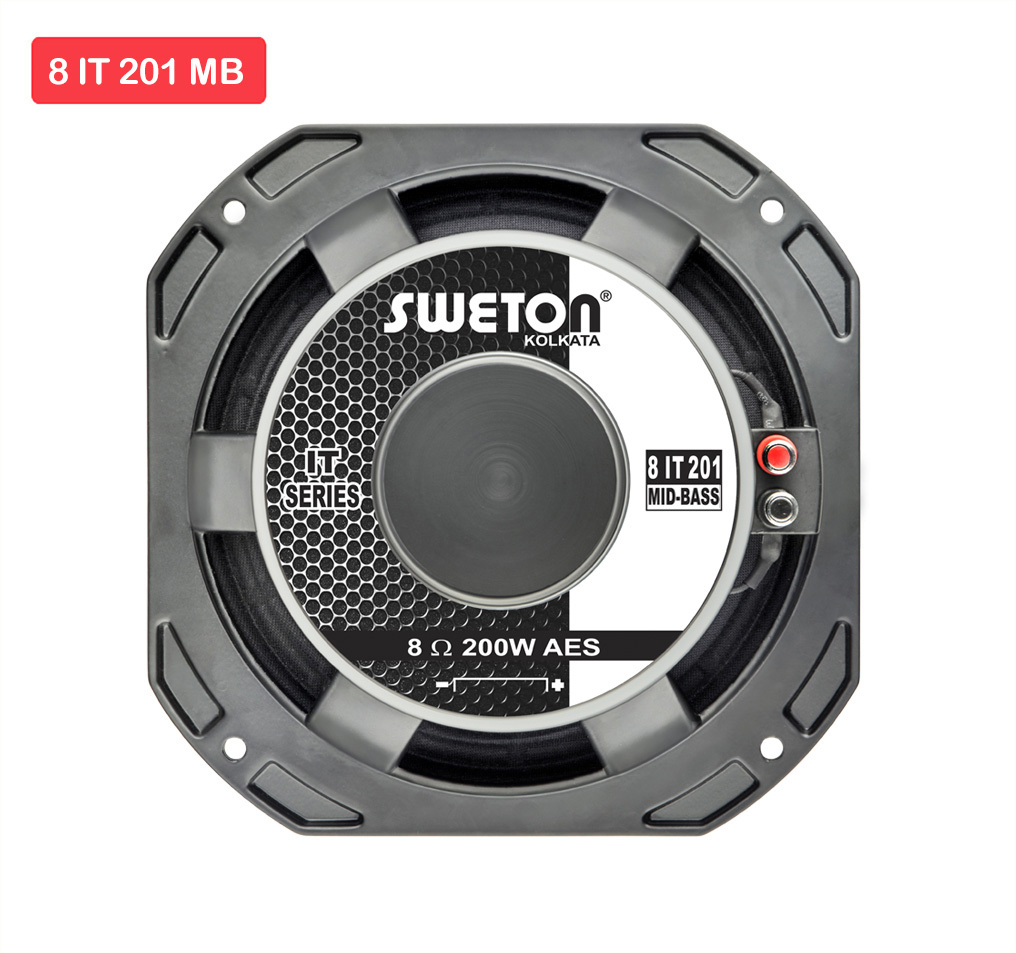

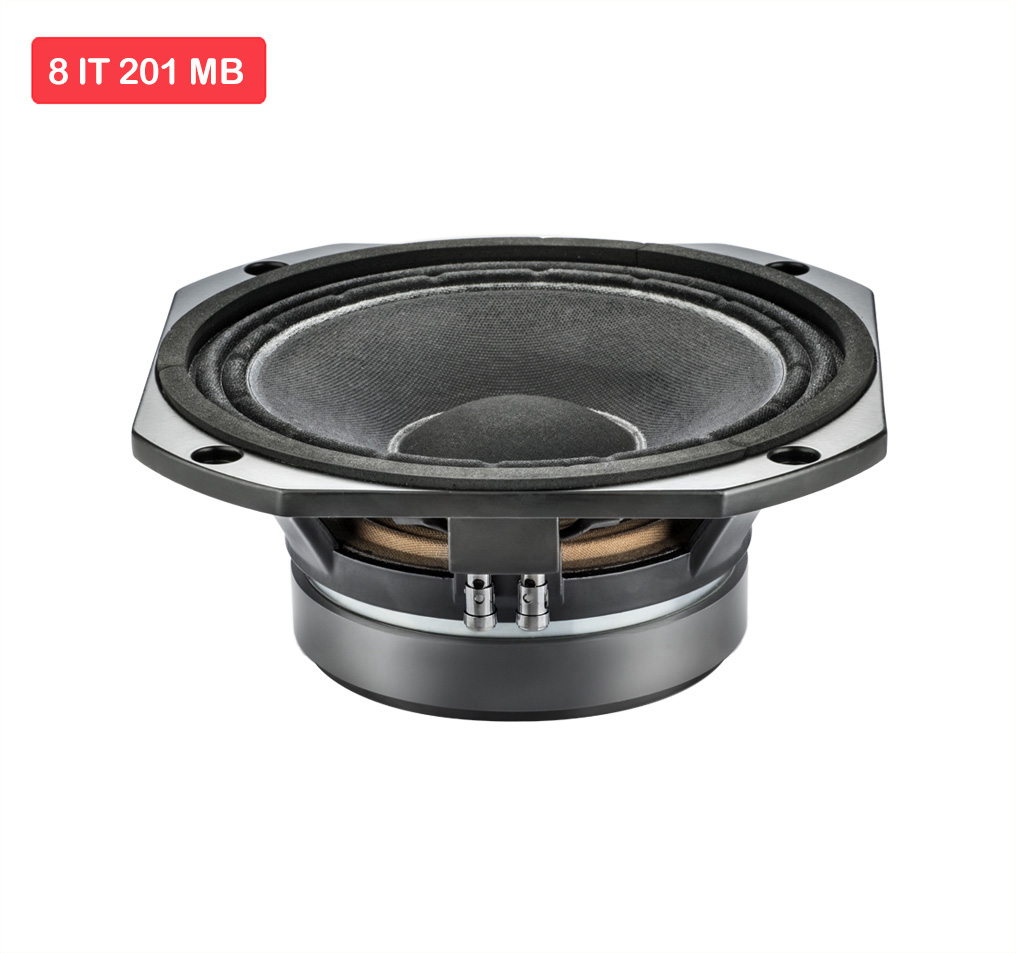

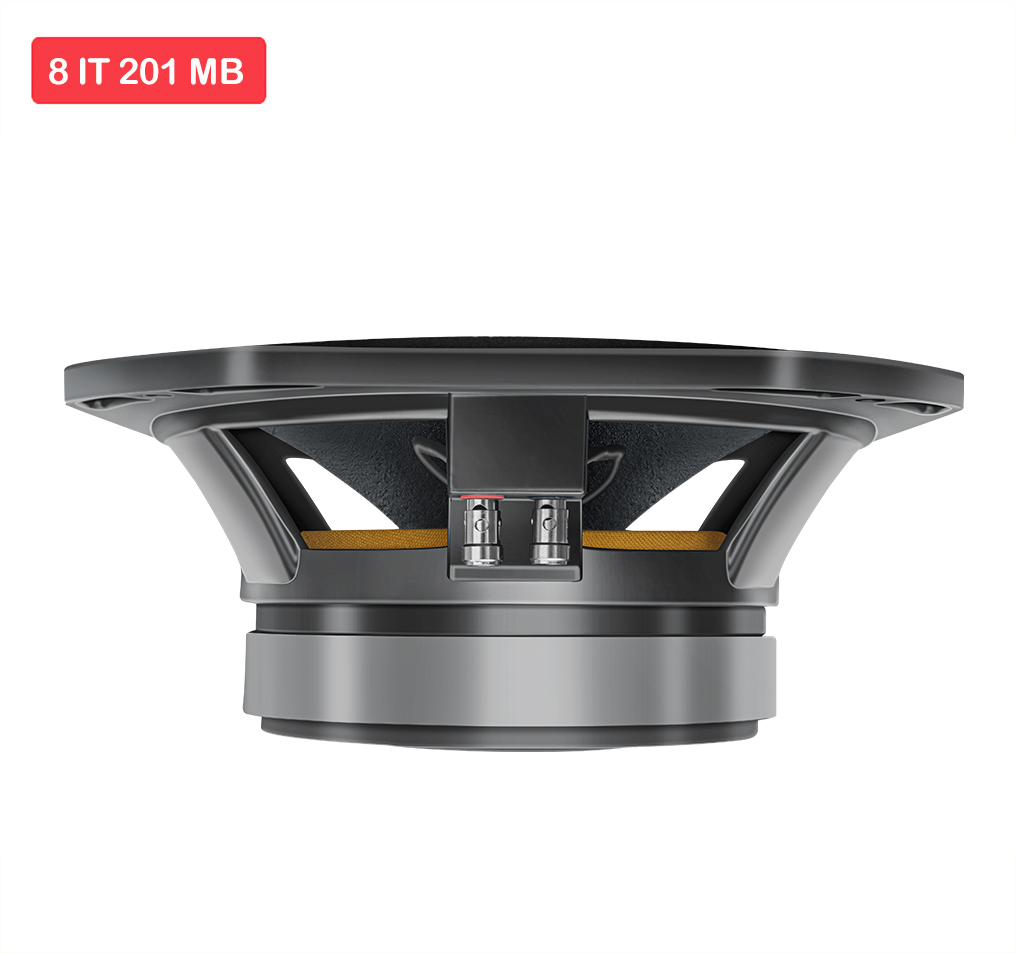

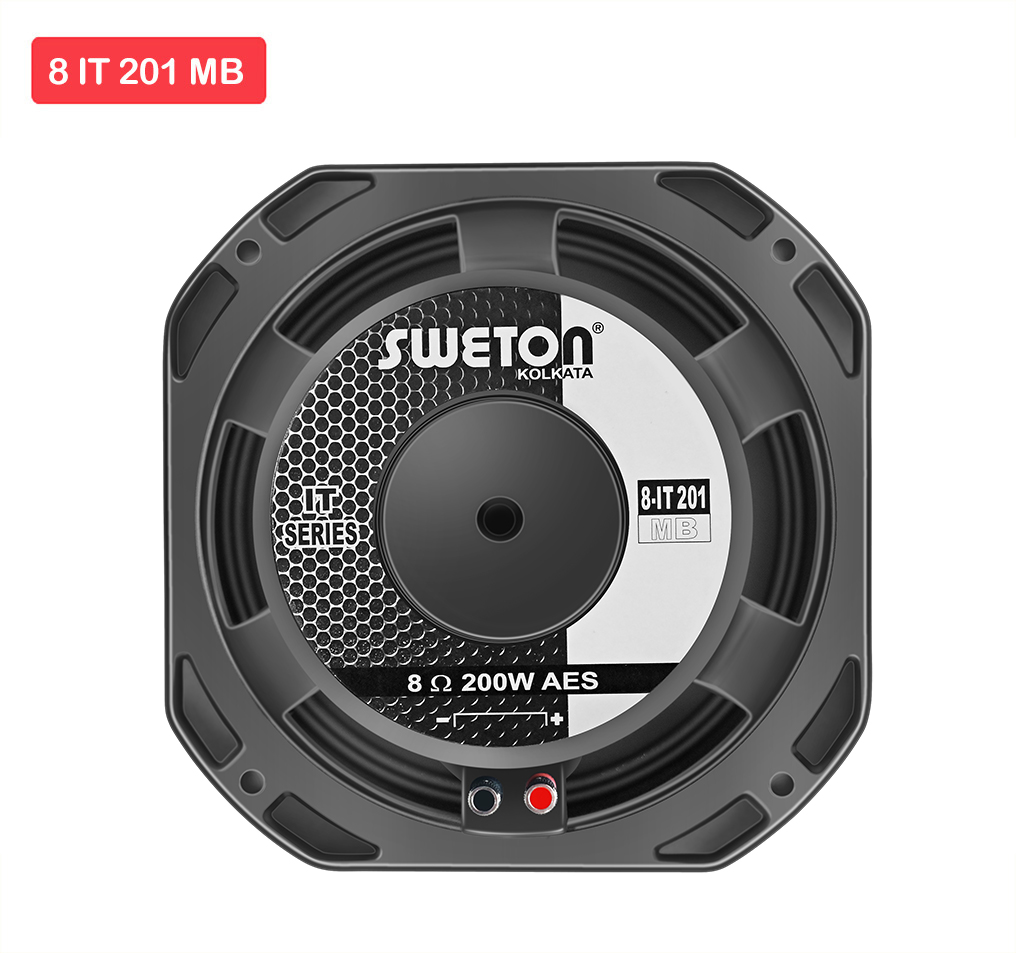

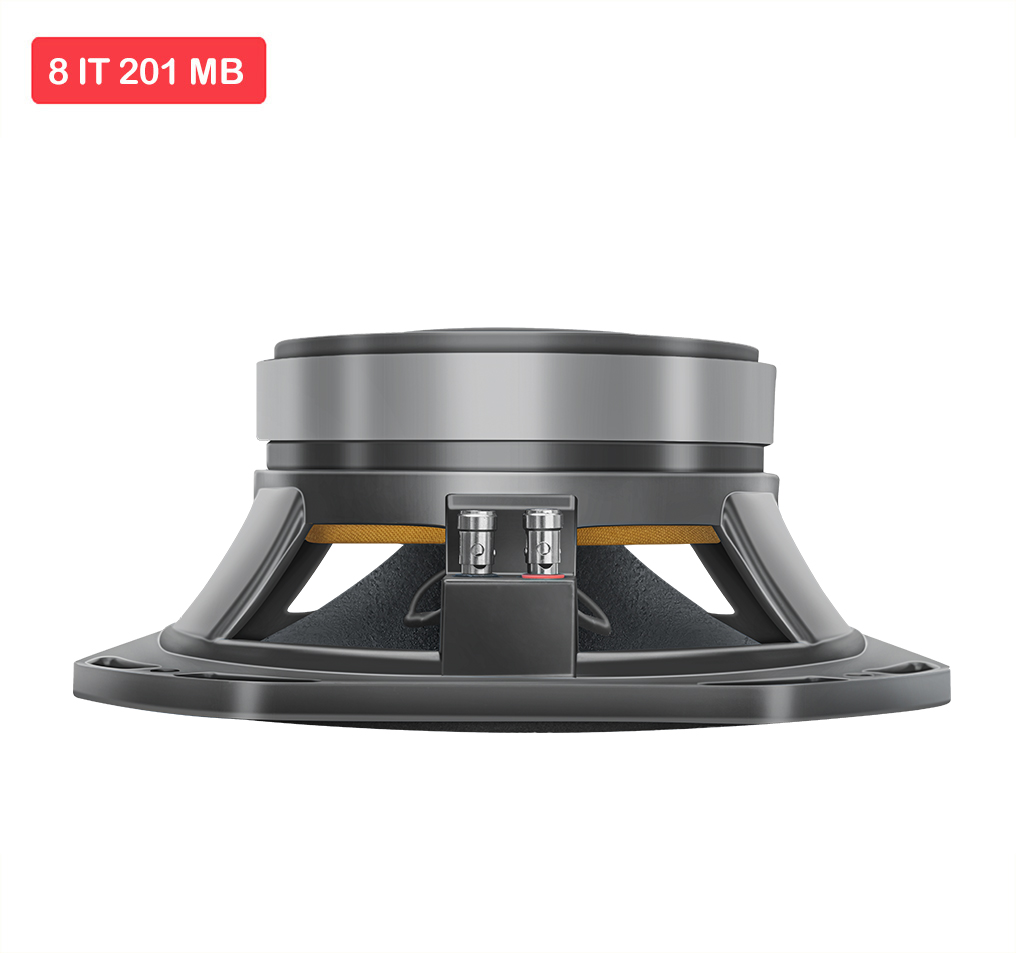

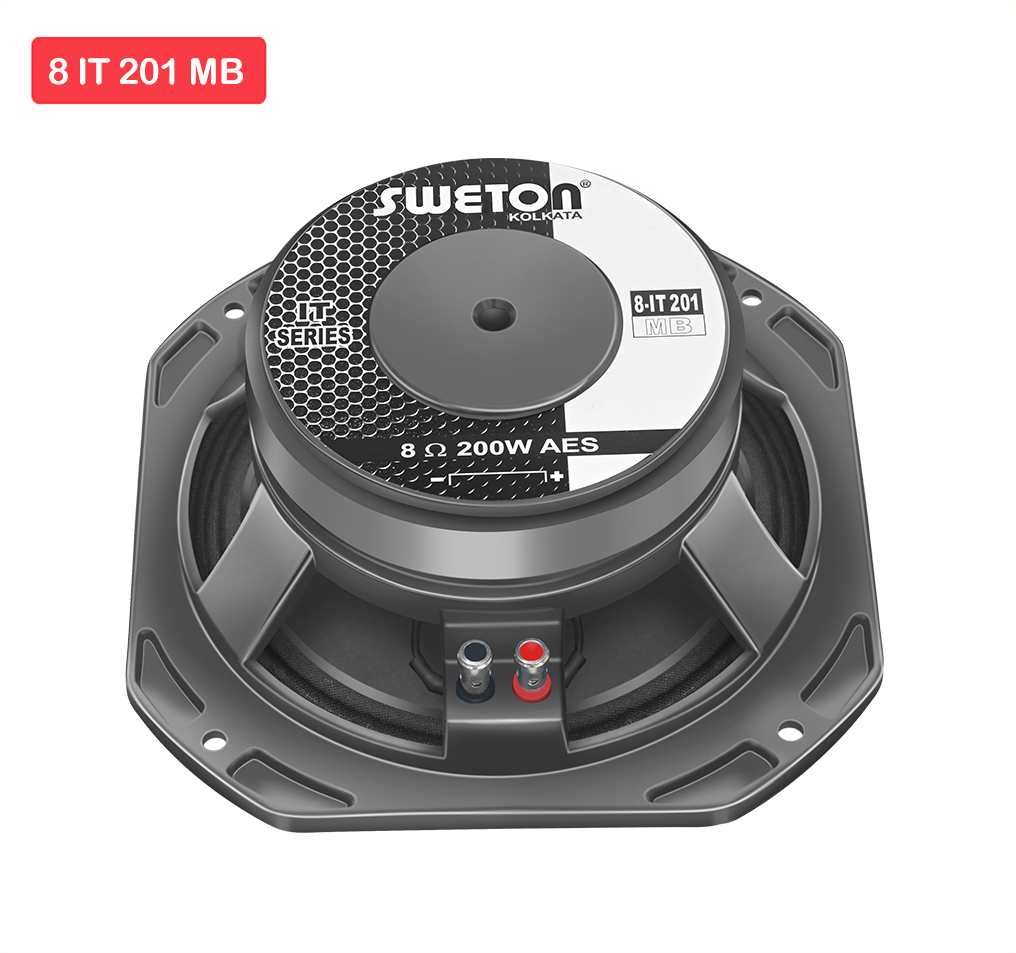

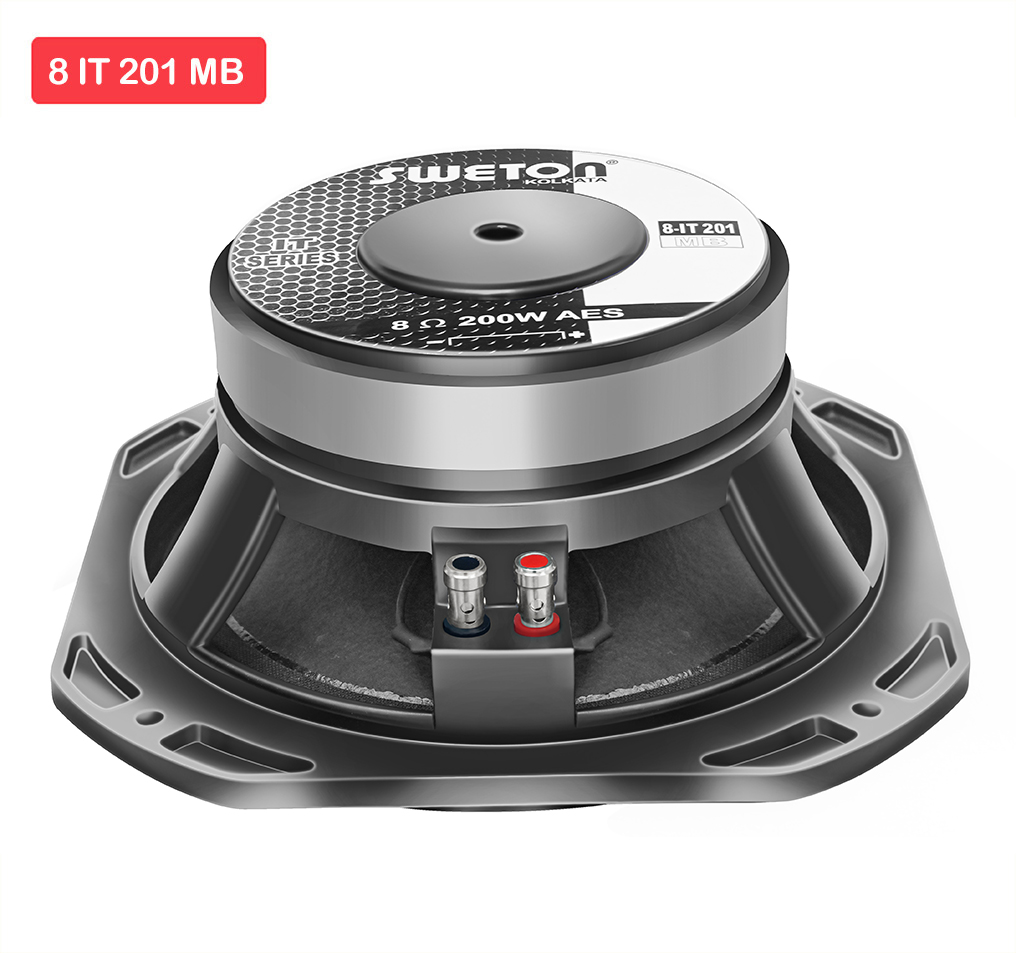

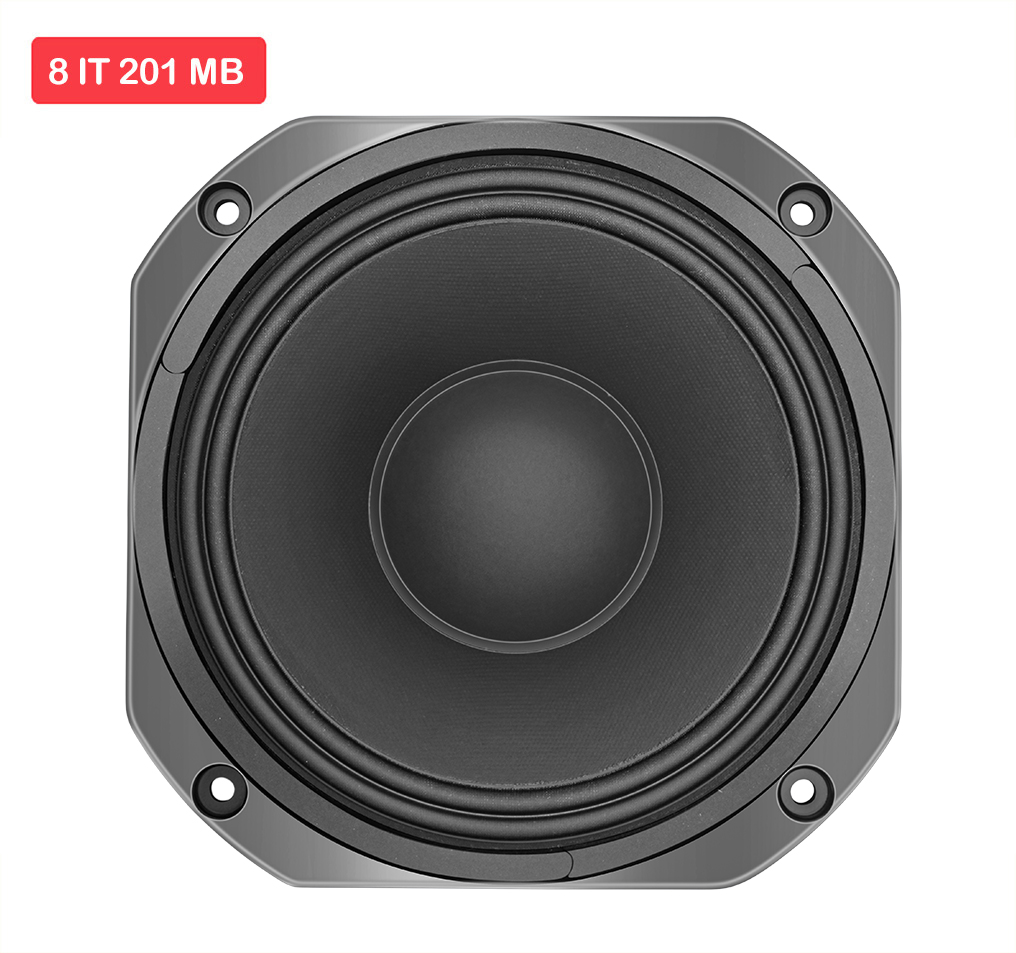

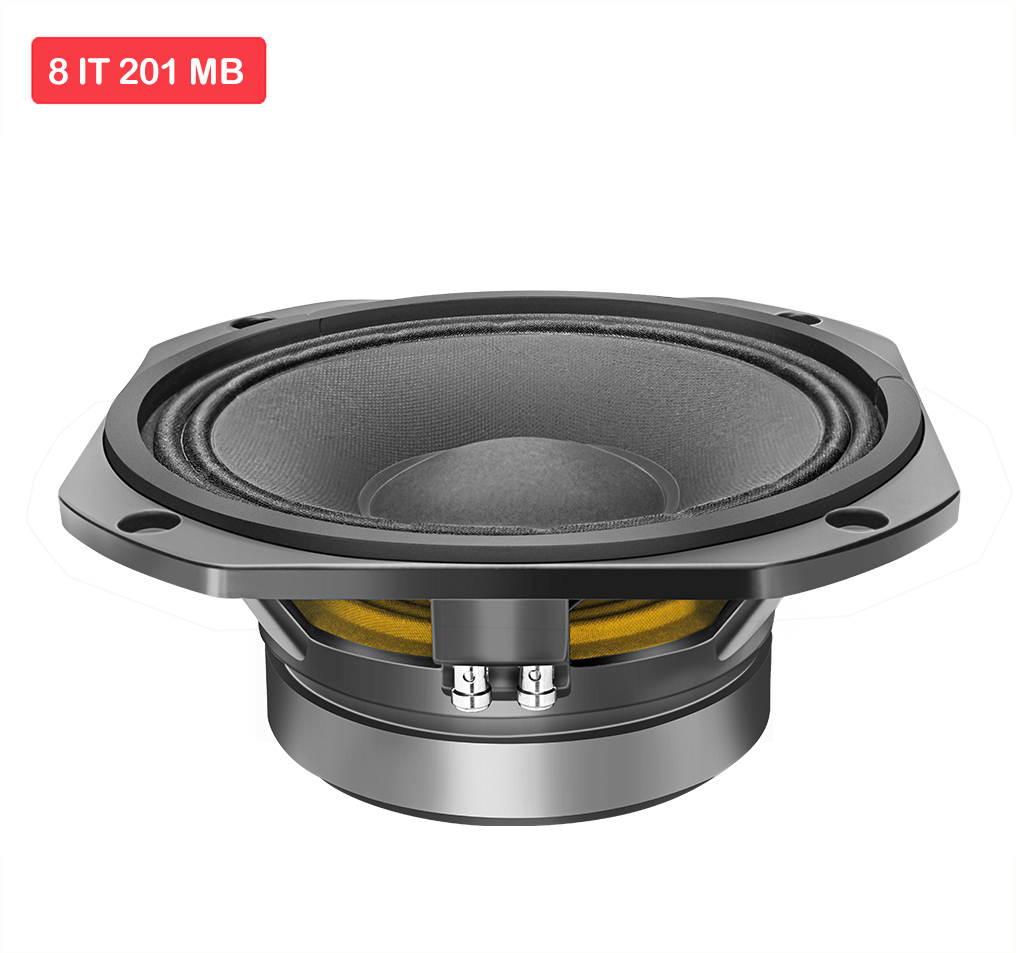

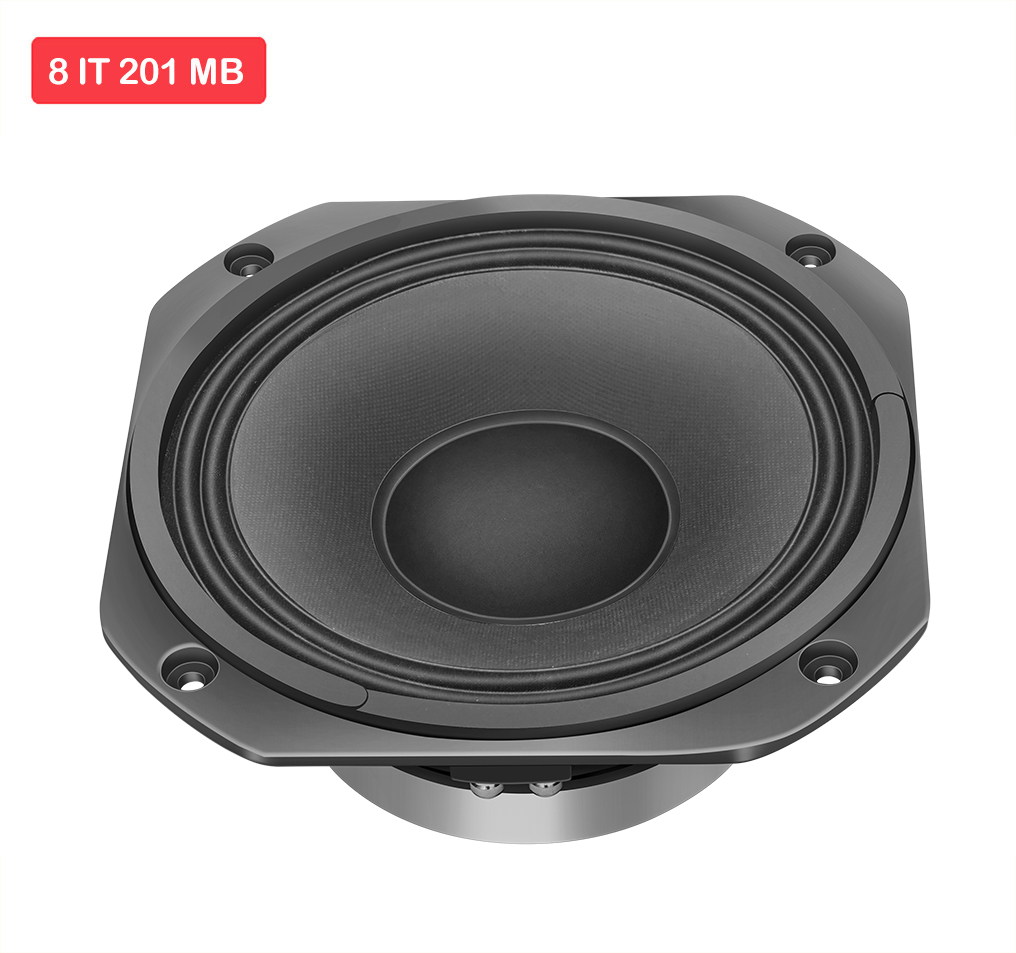

8 IT 201 MB
8 IT 201 MB is a Mid Bass transducer which is designed for line array system.This transducer reproduces mid frequencies linearly with prominent short distance bass making it ideal mid bass transducer. Suitable for Bass Reflex / Ported Enclosure.
| Key Features | |
| Program Power | 400 W |
| Voice Coil | 51.2 mm (2 in) |
| Response | 80- 6000 Hz |
| Sensitivity 1W/1M | 95 dB |
Specification
| Nominal Diameter | 208 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 200 W |
| Program Power | 400 W |
| Sensitivity (1W/1m) | 95 dB |
| Frequency Range | 80-6000 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 51.2 mm ( 2 in) |
| Winding Material | CCAW |
| Former Material | Kapton |
| Winding Type | In/Out |
Parameters
| Resonant Frequency | FS | 81 Hz |
| DC Resistance | Re | 7 Ω |
| Electrical Q | Qes | 0.42 |
| Mechanical Q | Qms | 4.81 |
| Total Q | Qts | 0.39 |
| Compliance Equivalent Volume | vas | 16 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.03 Ltrs |
| Effective Surface Area of Cone | Sd | 227 cm^2 |
| Reference Efficiency | ƞo | 1.92% |
| Moving Mass including air load | Mms | 17.40 gms |
| Motor Strength | Bl | 12.11 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.60 mH |
| Efficiency Bandwith Product | EBP | 193 Hz |
| Voice Coil Overhang | Xmax | ±1.5 mm |
Mounting Info
| Overall Diameter | 208 mm |
| Baffle Cutout Diameter | 186 mm |
| Depth | 89 mm |
| Flange and Gasket Thickness | 11 mm |
| Gross Weight | 3.720 Kg. |
Recone Kit
| Recone Kit Number | REC8IT201MB |
