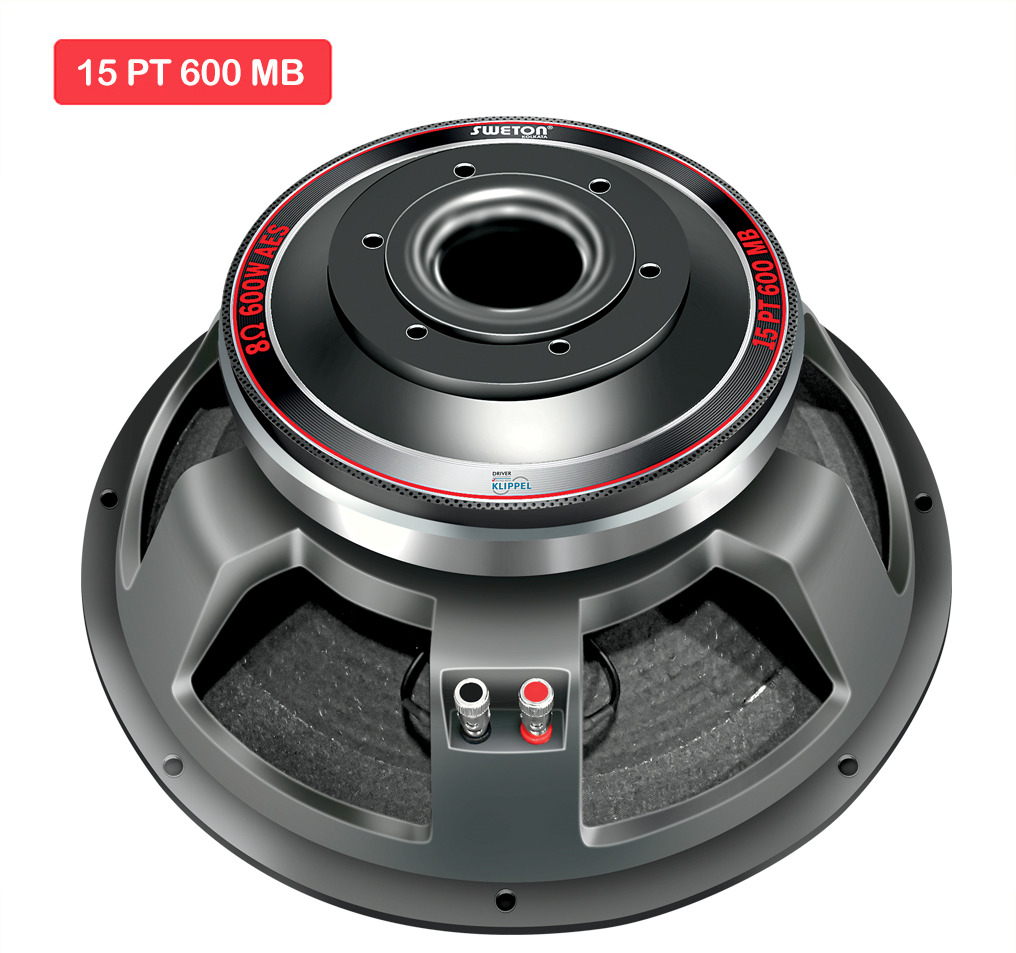

15 PT 600 MB
15PT600 MB is a Mid Bass transducer which has extended low with prominent Mid. This transducer is suitable for Live Programs / Orchestra.
Suitable for both Sealed and Bass Reflex Enclosure.
| Key Features | |
| Program Power | 1200 W |
| Voice Coil | 99.3 mm (4 in) |
| Response | 55-3500 Hz |
| Sensitivity 1W/1M | 96 dB |
Specification
| Nominal Diameter | 388 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 600w |
| Program Power | 1200w |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 55-3500 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 99.3 mm ( 4 in) |
| Winding Material | CCAR |
| Former Material | GLASS FIBRE |
| Winding Type | OUTSIDE |
Parameters
| Resonant Frequency | FS | 57 Hz |
| DC Resistance | Re | 5.4 Ω |
| Electrical Q | Qes | 0.46 |
| Mechanical Q | Qms | 13.27 |
| Total Q | Qts | 0.45 |
| Compliance Equivalent Volume | vas | 71.70 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.41 Ltrs |
| Effective Surface Area of Cone | Sd | 918.63 cm^2 |
| Reference Efficiency | ƞo | 2.69% |
| Moving Mass including air load | Mms | 130.60 gms |
| Motor Strength | Bl | 23.23 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.53 mH |
| Efficiency Bandwith Product | EBP | 124 Hz |
| Voice Coil Overhang | Xmax | ±4.0 mm |
Mounting Info
| Overall Diameter | 388 mm |
| Bolt Circle Diameter | 373 mm |
| Baffle Cutout Diameter | 358 mm |
| Depth | 151 mm |
| Flange and Gasket Thickness | 13 mm |
| Gross Weight | 12.85 Kg. |
Recone Kit
| Recone Kit Number | REC15PT600MB |
