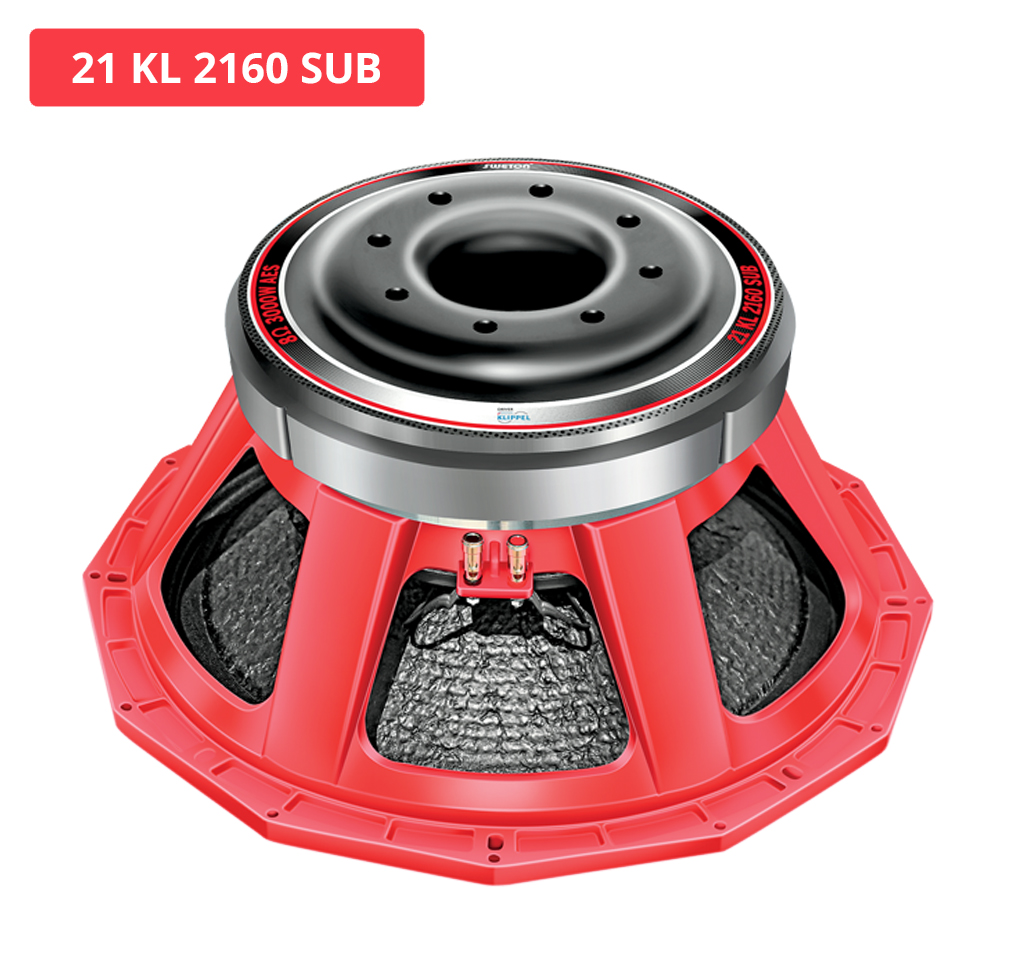

21 KL 2160 SUB
The most powerful Sub Woofer in 21” category in 6 inch Voice Coil with massive power handling of 3000 Watt AES.
The punch and the low frequency reproduced is very powerful and unparallel . Truly BASS KA BAAP.
| Key Features | |
| Program Power | 6000 W |
| Voice Coil | 152 mm (6 in) |
| Response | 40-1000 Hz |
| Sensitivity 1W/1M | 96 dB |
Specification
| Nominal Diameter | 575 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 3000 W |
| Program Power | 6000 W |
| Sensitivity (1W/1m) | 95 dB |
| Frequency Range | 40-1000 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 152 mm ( 6 in) |
| Winding Material | COPPER |
Parameters
| Resonant Frequency | FS | 47 Hz |
| DC Resistance | Re | 5.79 Ω |
| Electrical Q | Qes | 0.55 |
| Mechanical Q | Qms | 15.54 |
| Total Q | Qts | 0.53 |
| Compliance Equivalent Volume | vas | 102.11 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 2.31 Ltrs |
| Effective Surface Area of Cone | Sd | 1698.23 cm^2 |
| Reference Efficiency | ƞo | 1.85% |
| Moving Mass including air load | Mms | 448.30 gms |
| Motor Strength | Bl | 37.51 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 1.91 mH |
| Efficiency Bandwith Product | EBP | 85 Hz |
| Voice Coil Overhang | Xmax | ±13.75 mm |
Mounting Info
| Overall Diameter | 575 mm |
| Bolt Circle Diameter | 555 mm |
| Baffle Cutout Diameter | 502 mm |
| Depth | 215 mm |
| Flange and Gasket Thickness | 14.5 mm |
| Gross Weight | 50 Kgs |
Recone Kit
| Recone Kit Number | REC21kl2160SUB |
