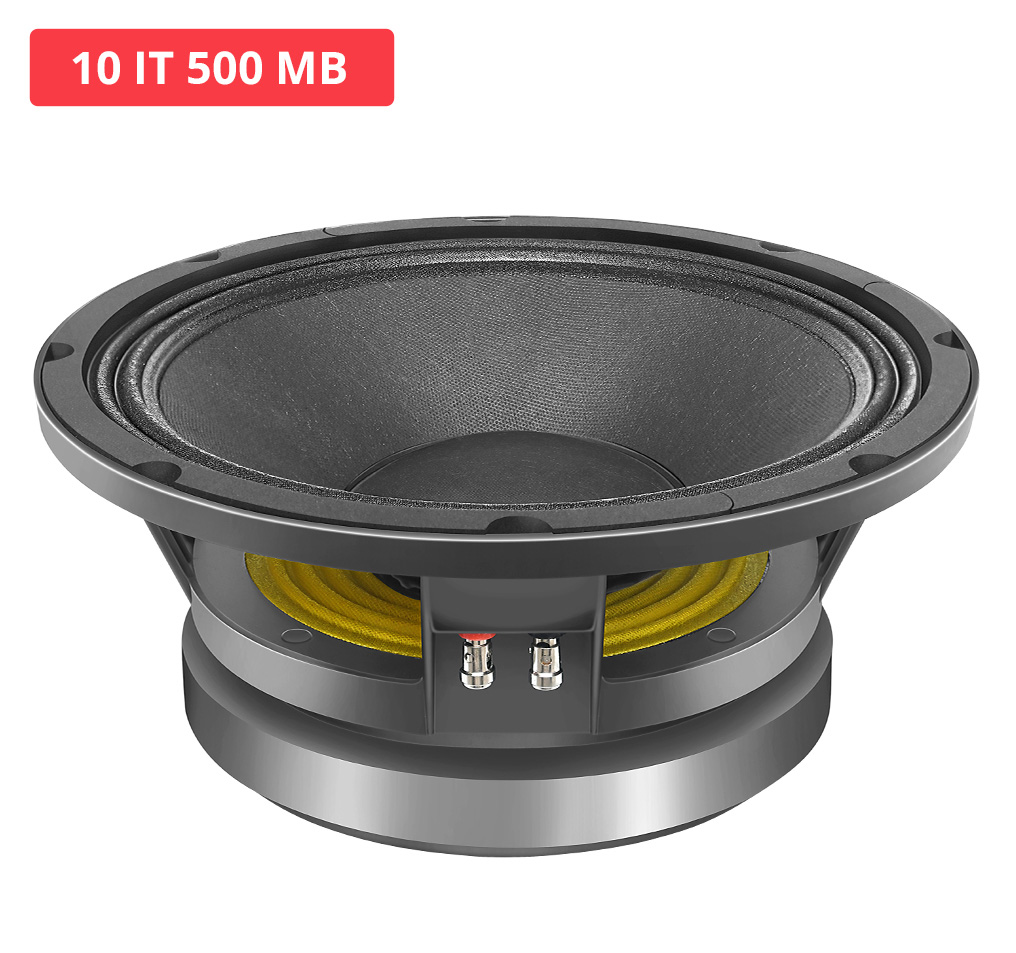

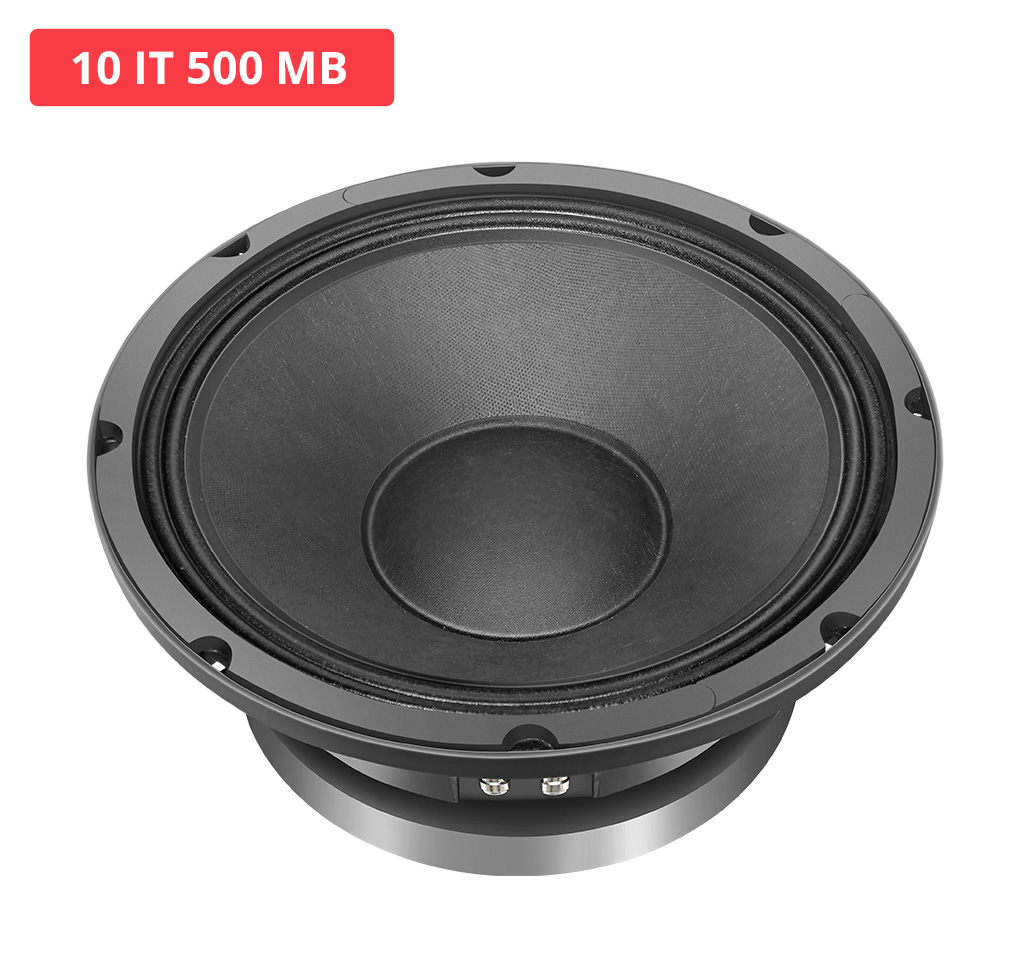

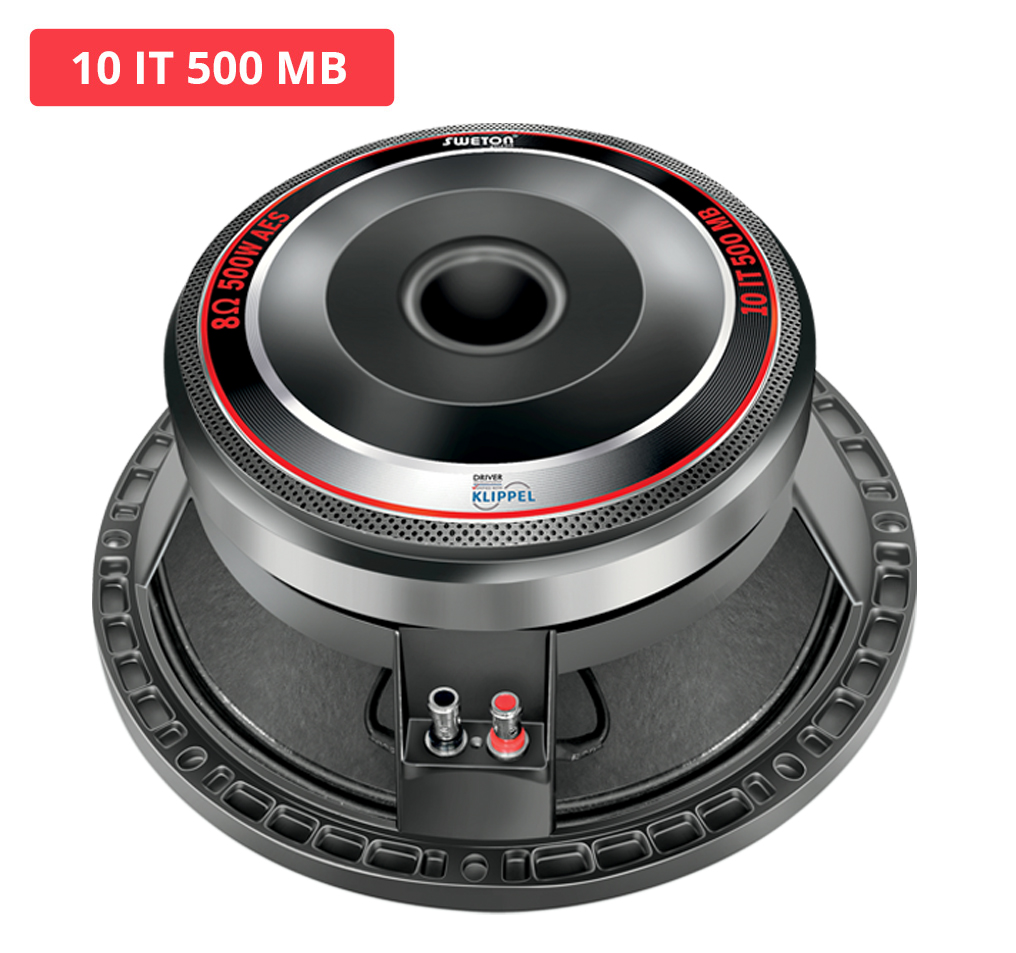

10 IT 500 MB
This transducer in 3 Inch voice coil makes it one of the sharpest Mid Bass transducers with lower bass element which makes the sound balanced in its category. Tonal quality is very sharp and is advisable to use this in large format Line Array or Point source. Suitable for Bass Reflex/Ported Enclosures.
| Key Features | |
| Program Power | 1000 W |
| Voice Coil | 76.2 mm (3 in) |
| Response | 88-6500 Hz |
| Sensitivity 1W/1M | 97 dB |
Specification
| Nominal Diameter | 261 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 500 W |
| Program Power | 1000 W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Range | 88-6500 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 76.2 mm ( 3 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Type | In/Out |
Parameters
| Resonant Frequency | FS | 92 Hz |
| DC Resistance | Re | 6.6 Ω |
| Electrical Q | Qes | 0.47 |
| Mechanical Q | Qms | 9.08 |
| Total Q | Qts | 0.45 |
| Compliance Equivalent Volume | vas | 17 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.05 Ltrs |
| Effective Surface Area of Cone | Sd | 363.1 cm^2 |
| Reference Efficiency | ƞo | 2.83% |
| Moving Mass including air load | Mms | 31.37 gms |
| Motor Strength | Bl | 15.93 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.68 mH |
| Voice Coil Overhang | Xmax | ±1.50 mm |
Mounting Info
| Overall Diameter | 261 mm |
| Bolt Circle Diameter | 248 mm |
| Baffle Cutout Diameter | 234 mm |
| Depth | 110 mm |
| Flange and Gasket Thickness | 14 mm |
| Gross Weight | 8.80 KG |
Recone Kit
| Recone Kit Number | REC10IT500MID |
