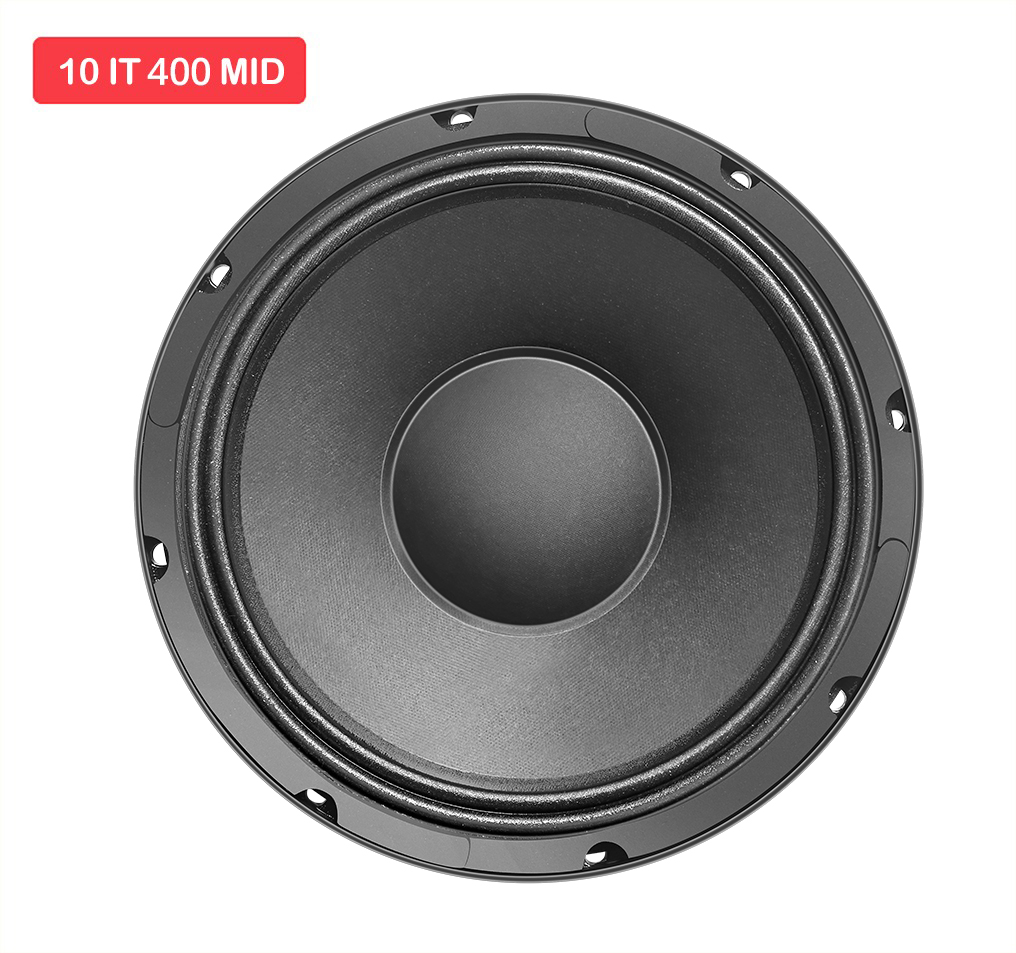

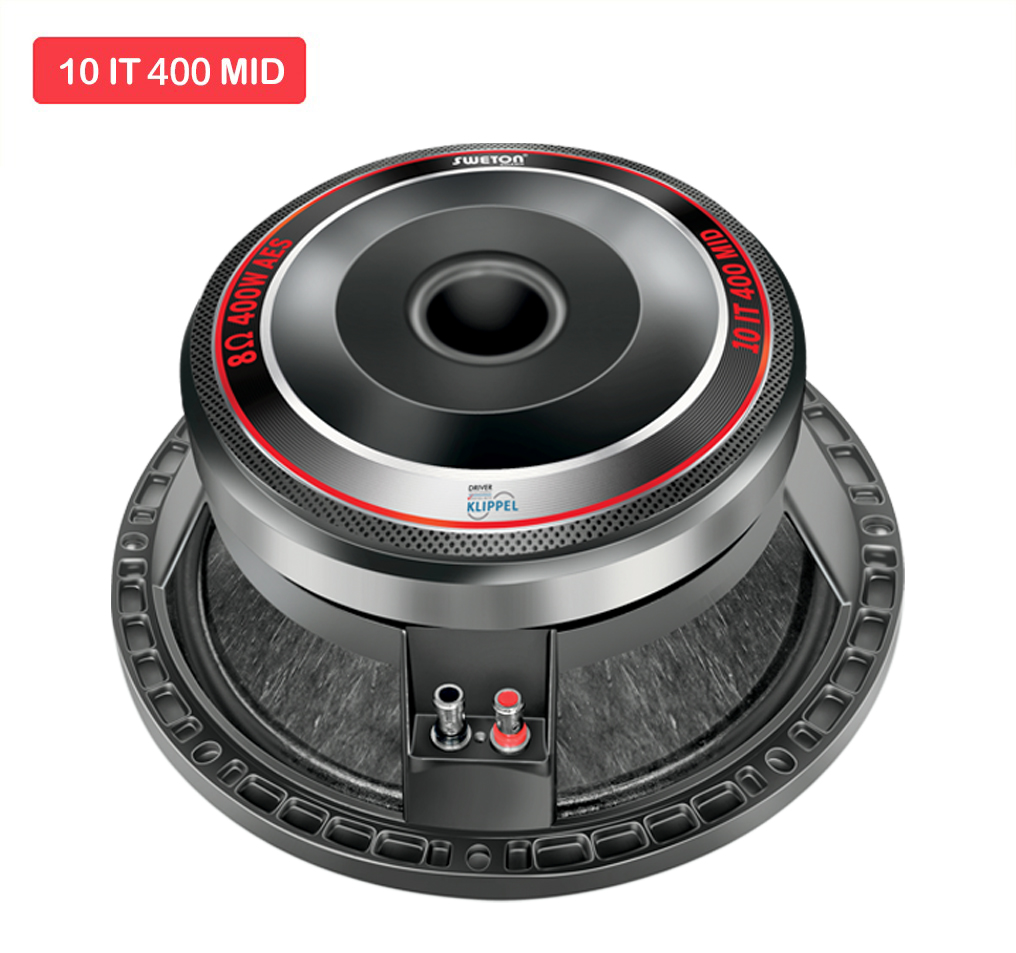

10 IT 400 MID
This transducer in 3 Inch voice coil (underhung design) makes it one of the sharpest Mid-range transducers in its category.
Tonal quality is crystal clear & very sharp and is advisable to use this in Line Array or Point source. Suitable for Bass Refl ex/Ported Enclosure.
.jpeg)
| Key Features | |
| Program Power | 800 W |
| Voice Coil | 76.2 mm (3 in) |
| Response | 89-7000 Hz |
| Sensitivity 1W/1M | 97 dB |
Specification
| Nominal Diameter | 261 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 400 W |
| Program Power | 800 W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Range | 89-7000 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 76.2 mm ( 3 in) |
| Winding Material | CCAW |
| Former Material | Glass Fibre |
| Winding Type | In/Out |
Parameters
| Resonant Frequency | FS | 89 Hz |
| DC Resistance | Re | 6.6 Ω |
| Electrical Q | Qes | 0.41 |
| Mechanical Q | Qms | 14.4 |
| Total Q | Qts | 0.4 |
| Compliance Equivalent Volume | vas | 19 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.05 Ltrs |
| Effective Surface Area of Cone | Sd | 363.1 cm^2 |
| Reference Efficiency | ƞo | 2.97% |
| Moving Mass including air load | Mms | 34 gms |
| Motor Strength | Bl | 17.95 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.33 mH |
| Efficiency Bandwith Product | EBP | 217 Hz |
| Voice Coil Overhang | Xmax | ±1.50 mm |
Mounting Info
| Overall Diameter | 261 mm |
| Bolt Circle Diameter | 248 mm |
| Baffle Cutout Diameter | 234 mm |
| Depth | 110 mm |
| Flange and Gasket Thickness | 14 mm |
| Gross Weight | 7.76 Kgs |
Recone Kit
| Recone Kit Number | REC10IT400MID |
