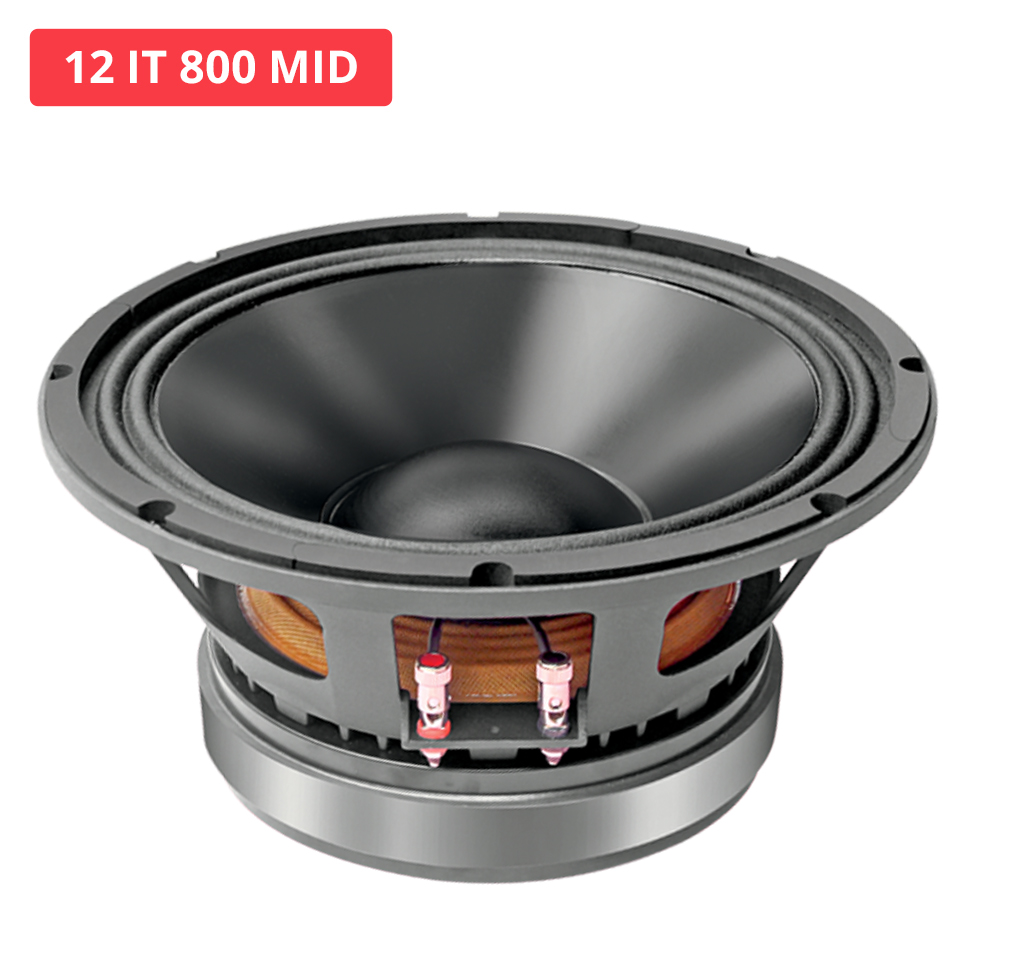

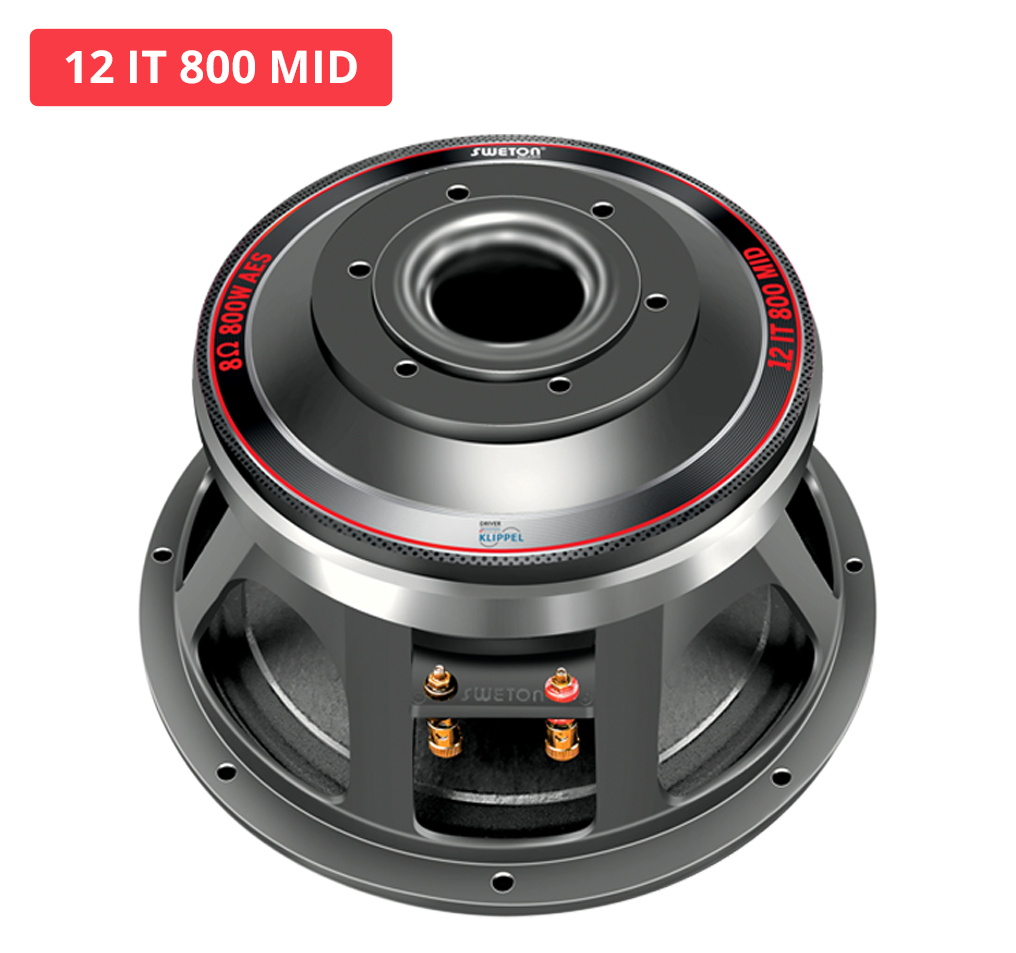

12 IT 800 MID
12 IT 800 MID is a very powerful MID transducer which has a very balanced and soothing output can be used in a large 3 way line array format system. Suitable for Bass Reflex /Ported Enclosures.
| Key Features | |
| Program Power | 1600 W |
| Voice Coil | 99.3 mm (4 in) |
| Response | 50-4500 Hz |
| Sensitivity 1W/1M | 96 dB |
Specification
| Nominal Diameter | 315 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 800 W |
| Program Power | 1600 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 50-4500 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 99.3 mm ( 4 in) |
| Winding Material | CCAL |
| Former Material | GLASS FIBRE |
| Winding Type | IN/OUT |
Parameters
| Resonant Frequency | FS | 63 Hz |
| DC Resistance | Re | 5.4 Ω |
| Electrical Q | Qes | 0.26 |
| Mechanical Q | Qms | 13.17 |
| Total Q | Qts | 0.26 |
| Compliance Equivalent Volume | vas | 28.22 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.15 Ltrs |
| Effective Surface Area of Cone | Sd | 522.79 cm^2 |
| Reference Efficiency | ƞo | 2.59% |
| Moving Mass including air load | Mms | 87.0 gms |
| Motor Strength | Bl | 26.76 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.63 mH |
| Efficiency Bandwith Product | EBP | 242 Hz |
| Voice Coil Overhang | Xmax | ±5.77 mm |
Mounting Info
| Overall Diameter | 315 mm |
| Bolt Circle Diameter | 298 mm |
| Baffle Cutout Diameter | 277 mm |
| Depth | 156 mm |
| Flange and Gasket Thickness | 10 mm |
| Gross Weight | 13.80 Kgs |
Recone Kit
| Recone Kit Number | REC 12IT 800MB |
