16 Ω

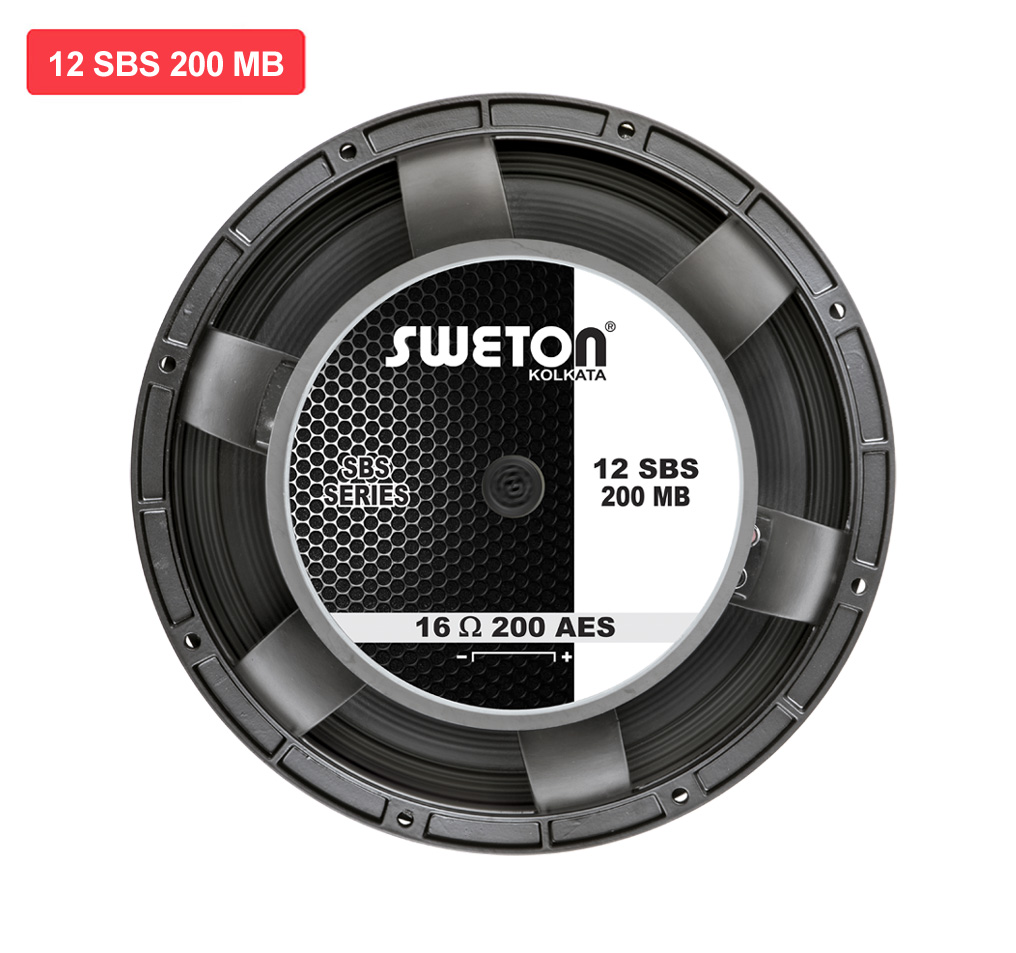

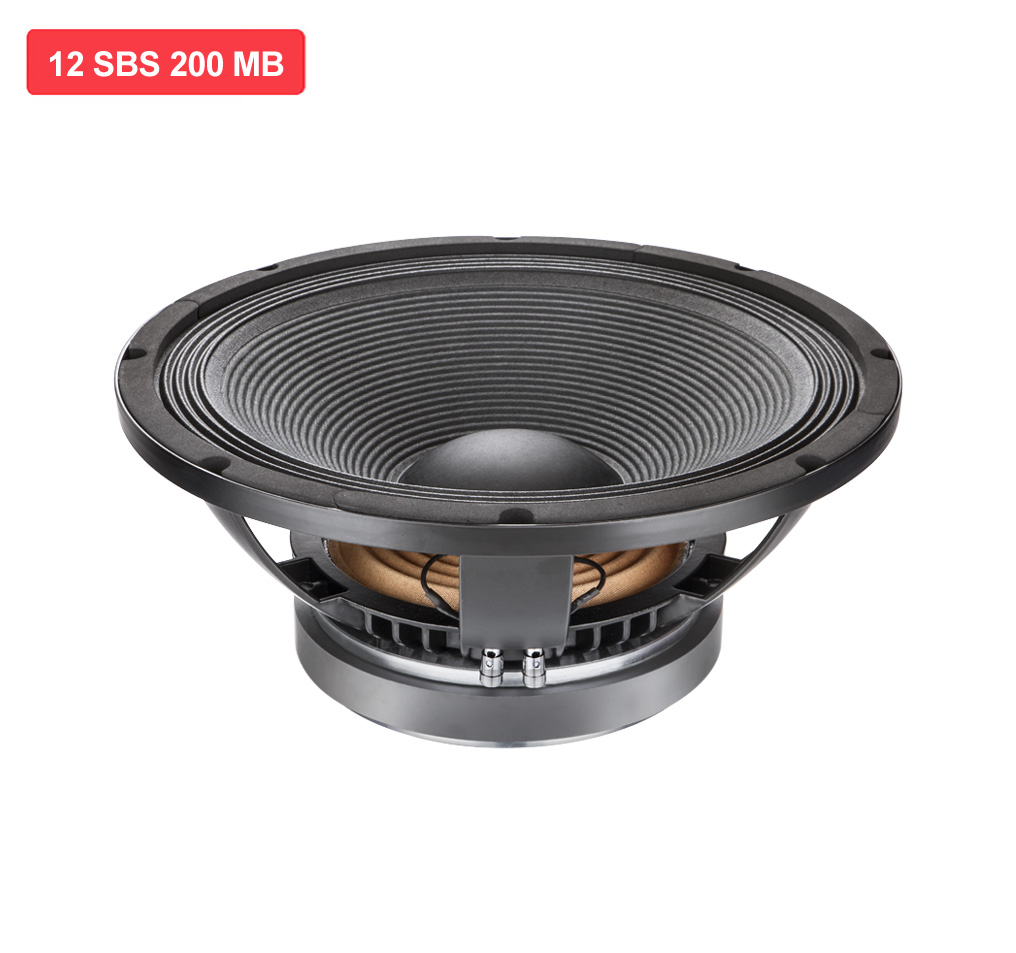

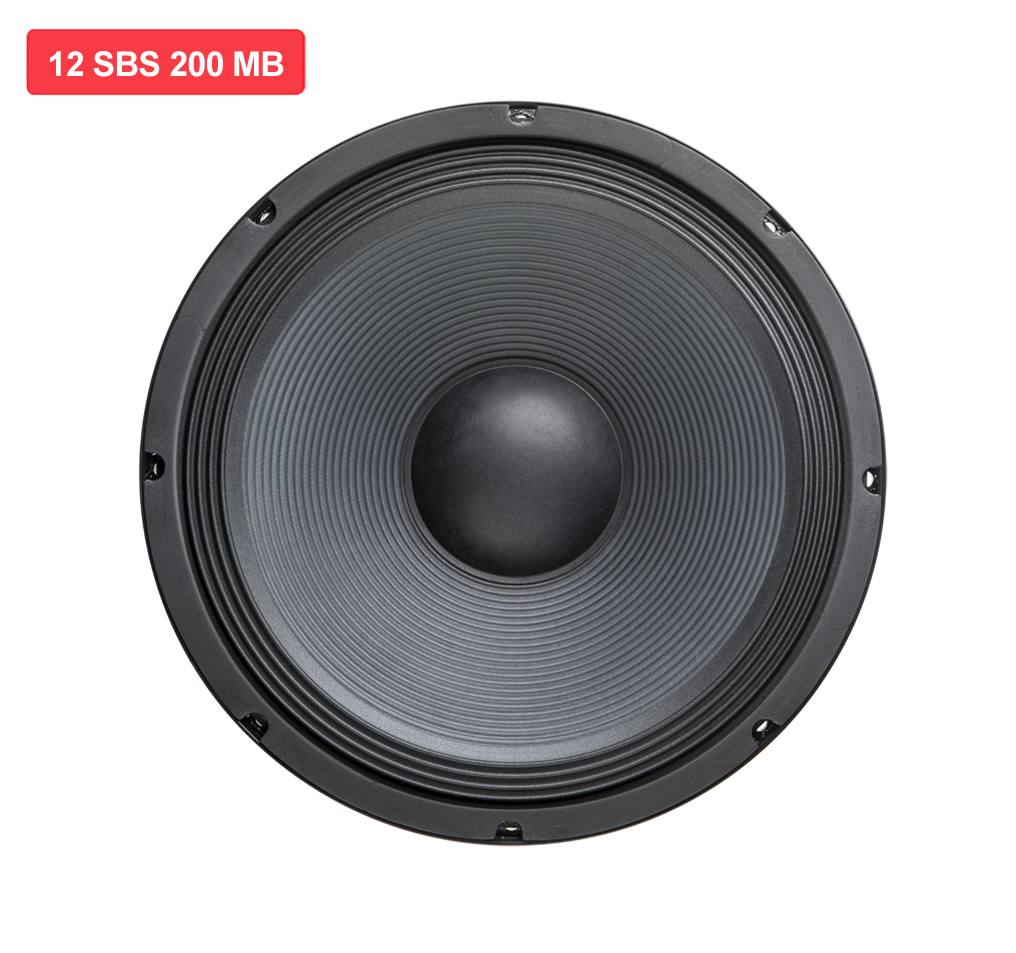

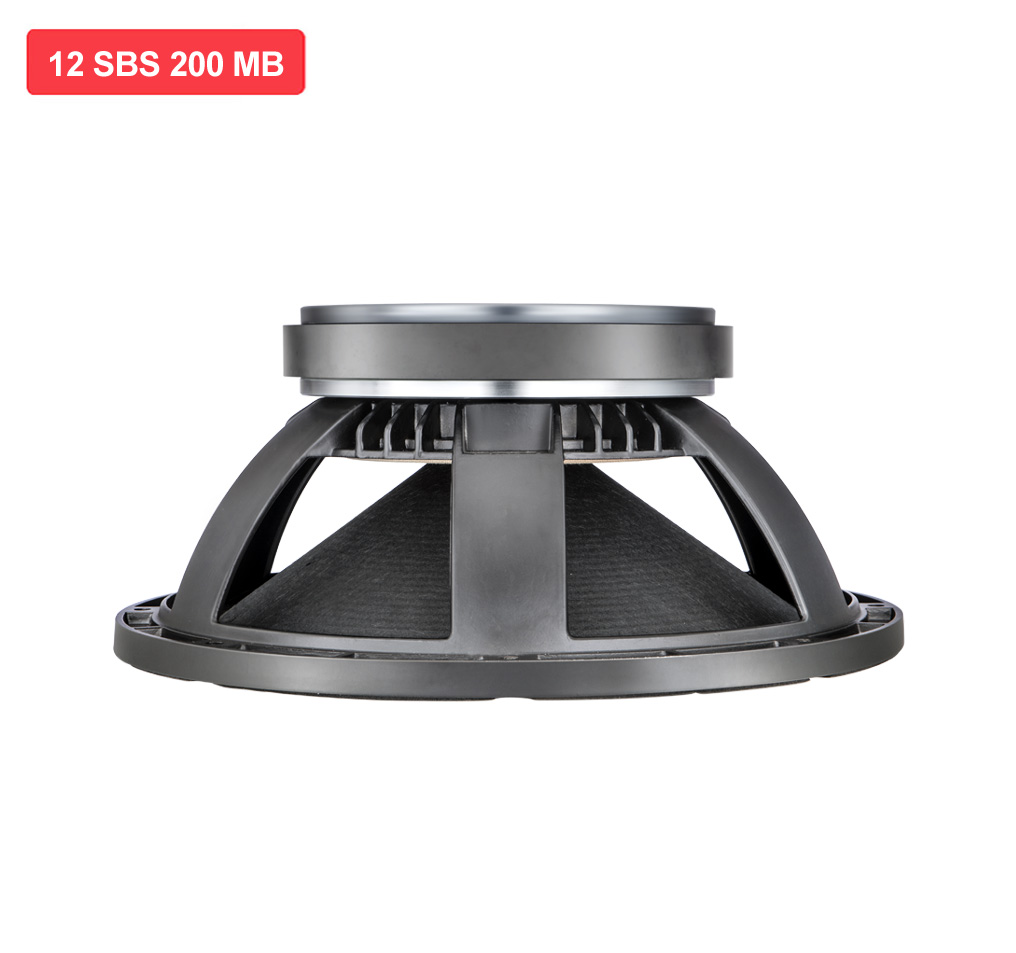

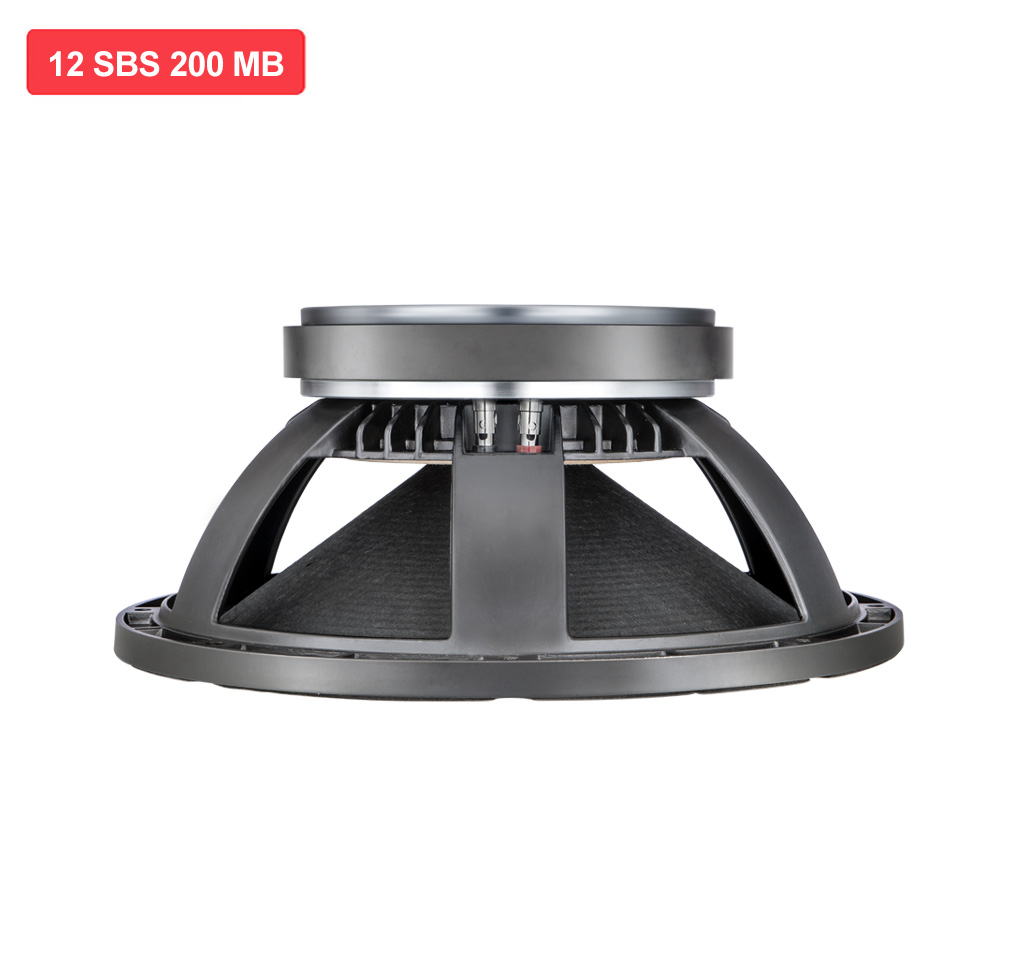

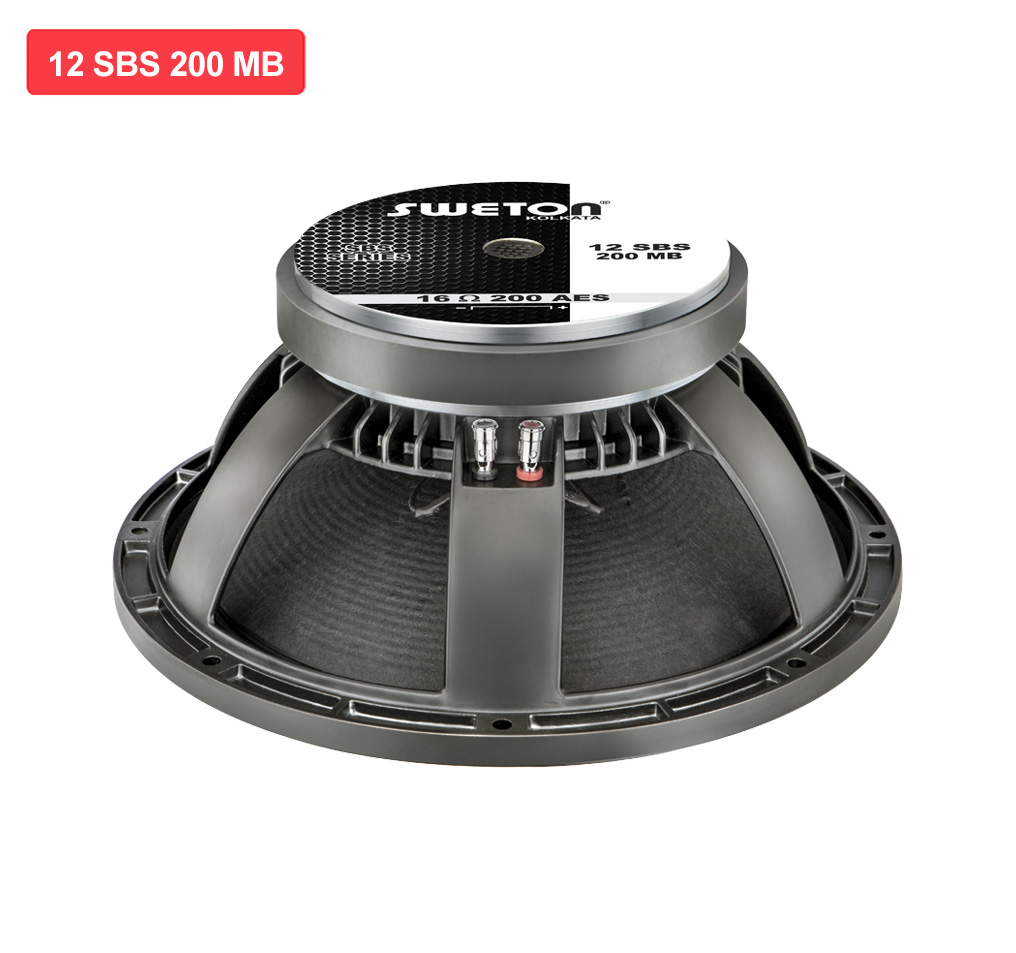

12 SBS 200 MB
This low mid transducer with linear mid frequency upto 3300 Hz is suitable for outdoor application.
Suitable for both Bass Reflex / Sealed Enclosure.
Key Features
- Program Power : 400 W
- Voice Coil Diameter : 53 mm (2.08 in)

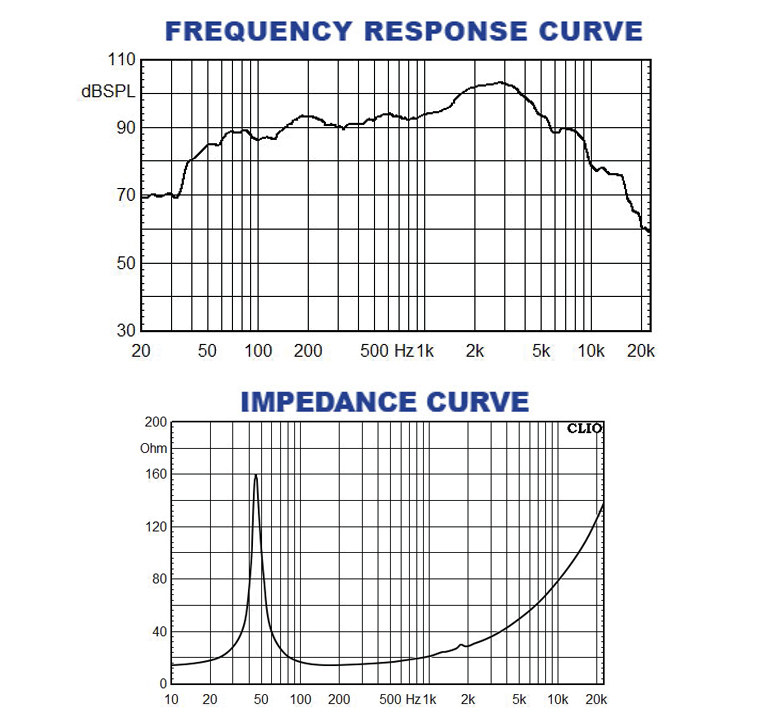

- Response : 45-3300 Hz
- Response : 94 dB
- Nominal Diameter 313 mm
- Nominal Impedence 16 Ω
- Gross Weight 6.8 Kg
- Nominal Power Handling(AES) 200w
- Program Power 400w
- Sensitivity (1W/1m) 94 dB
- Frequency Range 45-3300 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 53mm ( 2.08 in)
- Winding Material CCAW
- Former Material Kapton
- Winding Type Outside
- Resonant Frequency (FS) 45 Hz
- DC Resistance (Re) 12 Ω
- Electrical Q (Qes) 0.55
- Mechanical Q (Qms) 6.86
- Total Q (Qts) 0.51
- Compliance Equivalent Volume (vas) 103 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.41 Ltrs
- Effective Surface Area of Cone (Sd) 564.1 cm^2
- Reference Efficiency (ƞo) 1.64%
- Moving Mass including air load (Mms) 53.51 gms
- Motor Strength (Bl) 18.11 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.83 mH
- Efficiency Bandwith Product (EBP) 82 Hz
- Voice Coil Overhang (Xmax) ±7.25 mm
- Overall Diameter 314 mm
- Bolt Circle Diameter 296 mm
- Baffle Cutout Diameter 282 mm
- Depth 133 mm
- Flange and Gasket Thickness 15 mm
- Gross Weight 6.8 Kg
- Recone Kit Number REC12SBS200MB
