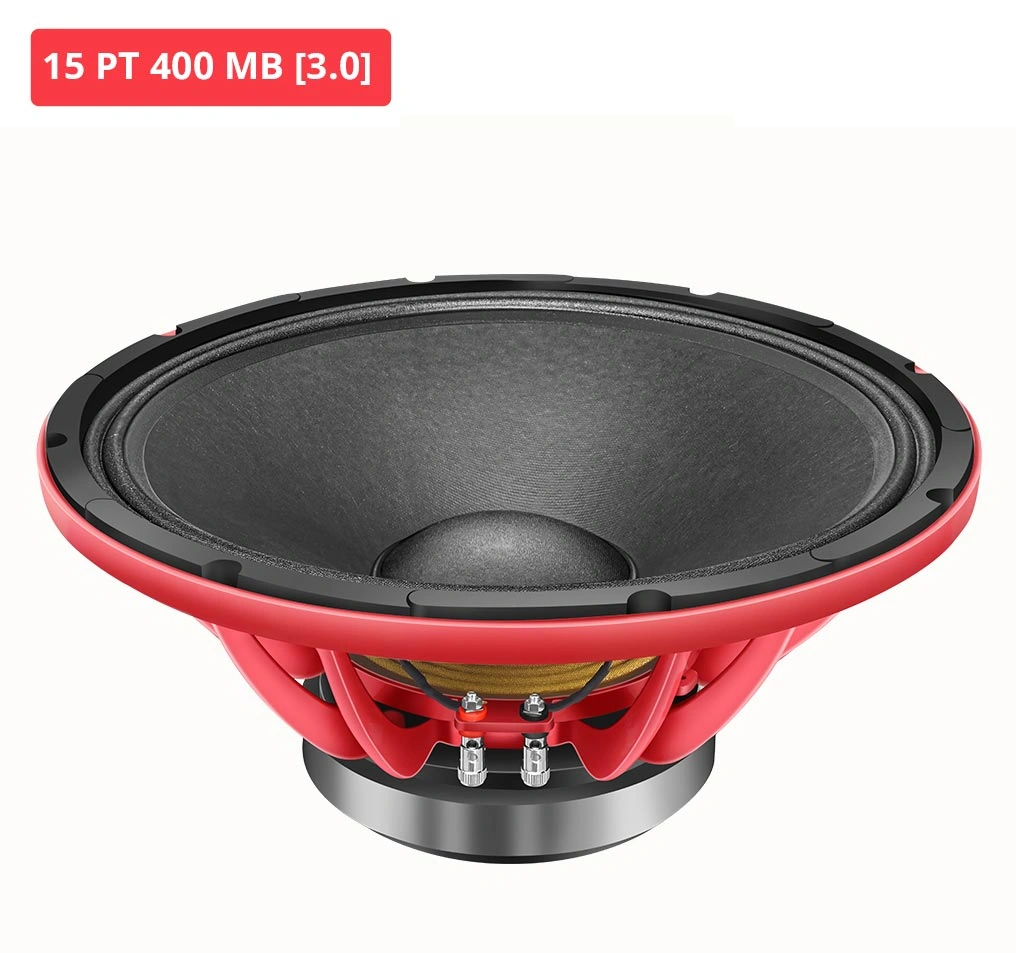

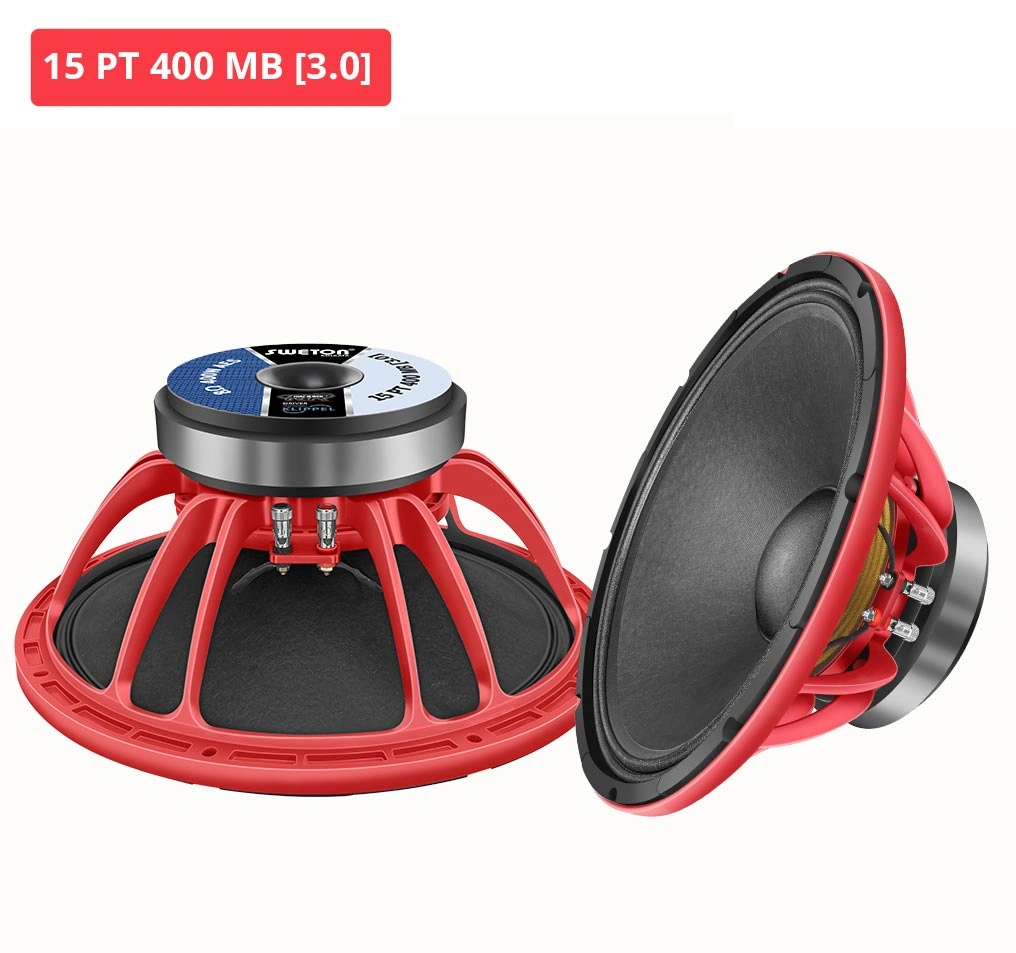

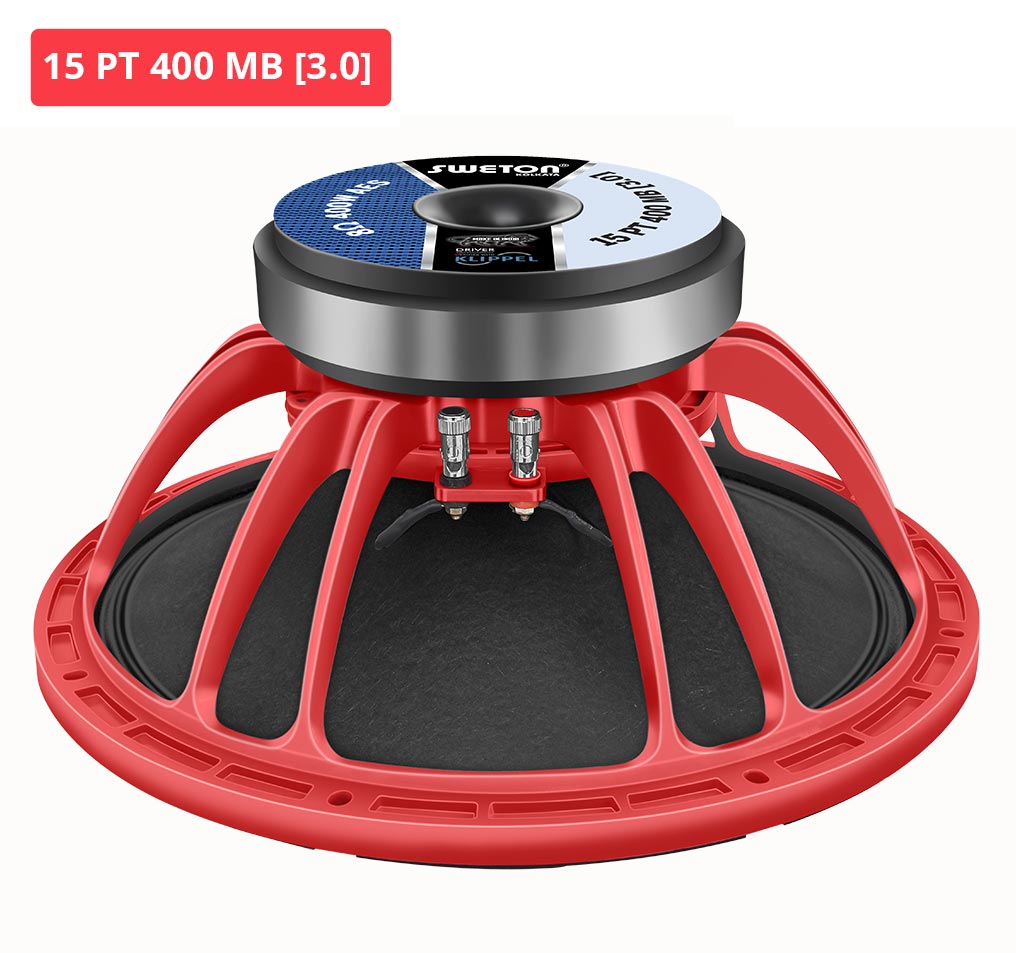

15 PT 400 MB [3.0]
The Sweton 15 PT 400 MB [3.0] is a 15- inch professional mid-bass transducer engineered for high-output live-sound and installed systems. It pairs a powerful, highly symmetric motor (Bl = 20.4 N/A) with a moderately stiff, well-damped suspension to deliver high sensitivity (≈100 dB, 2.83 V/1 m) together with low largesignal distortion. The driver is intended to cover the low-mid to mid band – nominally 100 Hz to 2 kHz – where its flat, controlled response and high efficiency let it produce high sound-pressure levels from modest amplifier power.
Key Features
- Program Power : 800 W
- Sensitivity 1W/1M : 100 dB
- Voice Coil Diameter : 76.2 mm ( 3 in)
- Response : 50 - 2 KHz
- Nominal Diameter 395 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 400 W
- Program Power 800 W
- Sensitivity (1W/1m) 100 dB
- Frequency Range 50 - 2 KHz
- Magnet Material Ferrite
- Voice Coil Diameter 76.2 mm ( 3 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type OUTSIDE

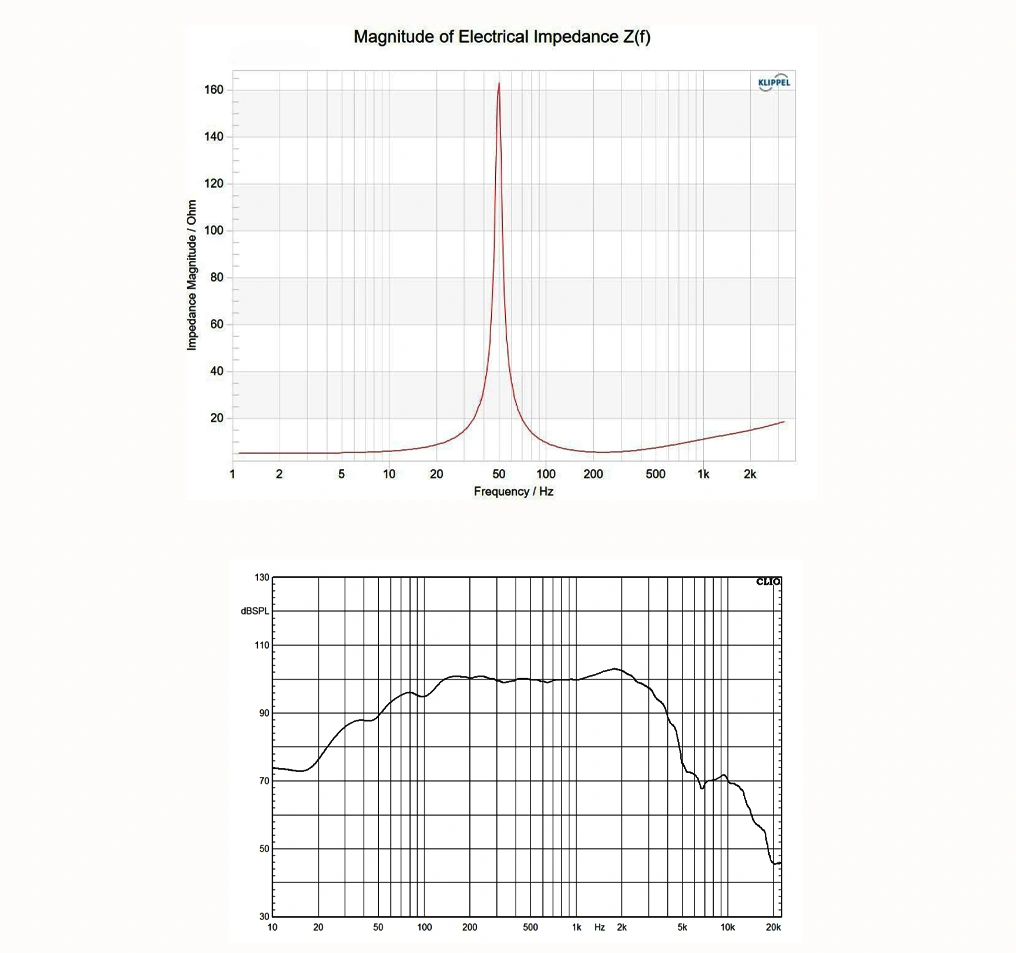

- Resonant Frequency (FS) 50 Hz
- DC Resistance (Re) 5.18 Ω
- Electrical Q (Qes) 0.39
- Mechanical Q (Qms) 12.27
- Total Q (Qts) 0.37
- Compliance Equivalent Volume (vas) 121 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.39 Ltrs
- Effective Surface Area of Cone (Sd) 907.9 cm^2
- Reference Efficiency (ƞo) 3.67%
- Moving Mass including air load (Mms) 99.37 gms
- Motor Strength (Bl) 20.38 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.62 mH
- Efficiency Bandwith Product (EBP) 128 Hz
- Voice Coil Overhang (Xmax) ±5.25 mm
- Overall Diameter 395 mm
- Bolt Circle Diameter 373 mm
- Baffle Cutout Diameter 355 mm
- Depth 150 mm
- Flange and Gasket Thickness 16 mm
- Gross Weight 8.8 Kgs
- Recone Kit Number REC15PT400MB
