15 PT 1000 MB [4.0]

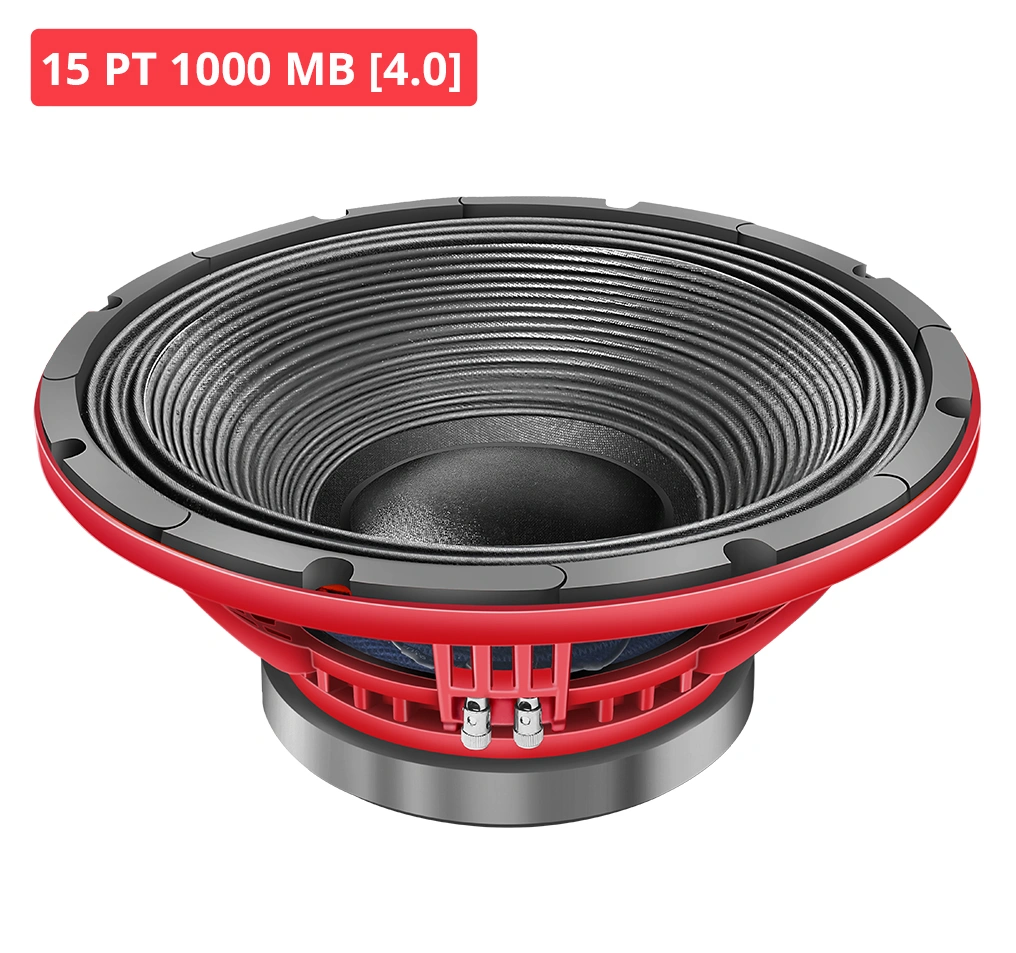

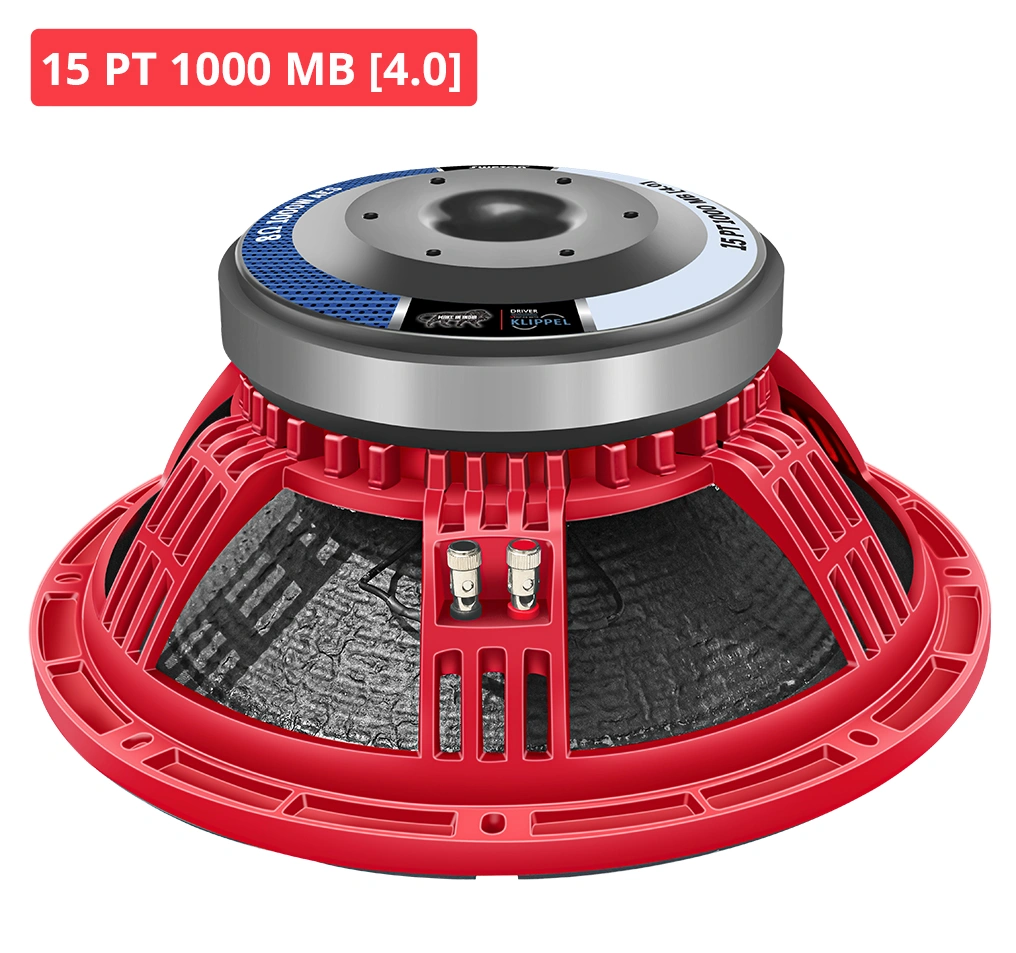

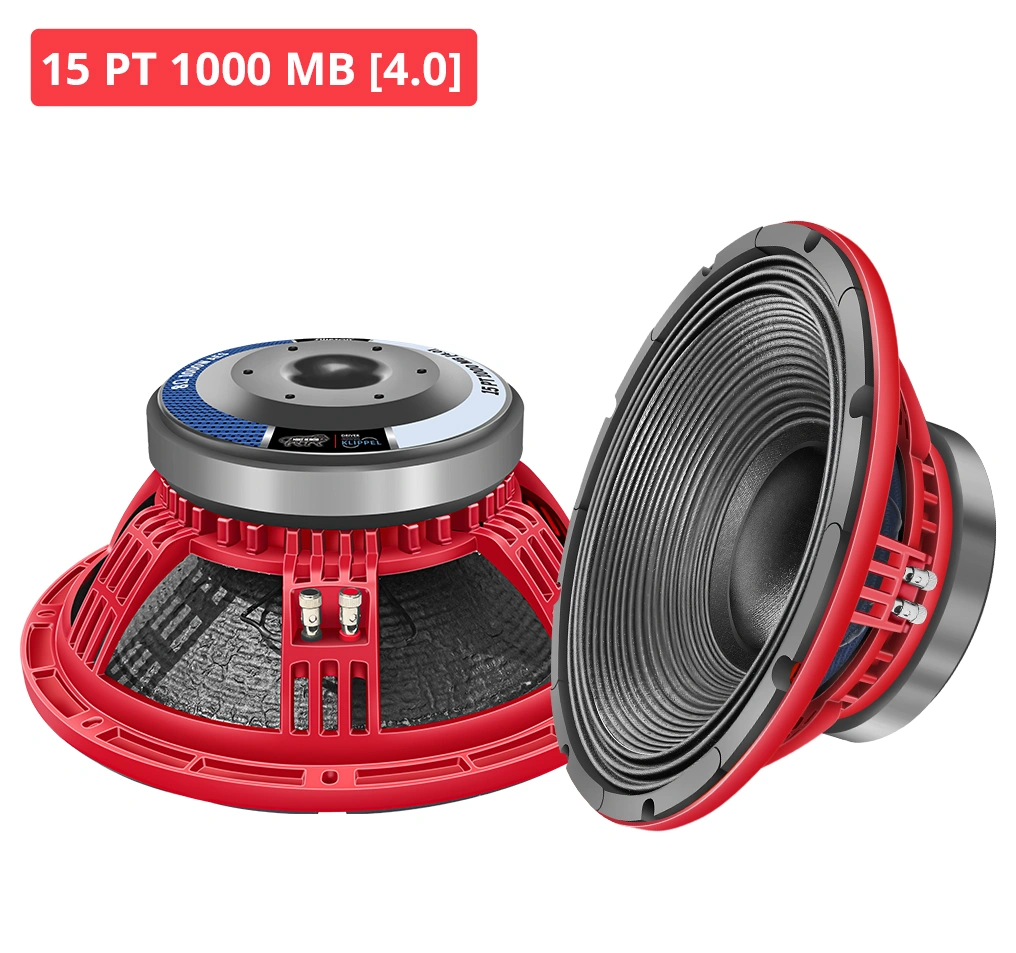

The SWETON 15 PT 1000 MB [4.0] is a high-output 15-inch pro speaker built for the low-mid engine room of two-way tops and three-way mid-bass cabinets.
Key Features
- Program Power : 2000 W
- Voice Coil Diameter : 99.3 mm
- Response : 84- 5500 Hz
- Sensitivity 1W/1M : 96 dB
- Nominal Diameter 392 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 1000 W
- Program Power 2000 W
- Frequency Range 45-4000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm
- Winding Material Copper
- Former Material Glass Fibre
- Winding Type Outside
- Resonant Frequency (FS) 52.8 Hz
- DC Resistance (Re) 5.44 Ω
- Electrical Q (Qes) 0.475
- Mechanical Q (Qms) 14.54
- Total Q (Qts) 0.460
- Compliance Equivalent Volume (vas) 59.92 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.79 Ltrs
- Effective Surface Area of Cone (Sd) 881.41 cm^2
- Reference Efficiency (ƞo) 1.79%
- Moving Mass including air load (Mms) 166.77 gms
- Motor Strength (Bl) 25.19 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.21 mH
- Efficiency Bandwith Product (EBP) 111 Hz
- Voice Coil Overhang (Xmax) ±9.00 mm
- Overall Diameter 392 mm
- Bolt Circle Diameter 376 mm
- Baffle Cutout Diameter 360 mm
- Depth 160 mm
- Flange and Gasket Thickness 18.5 mm
- Gross Weight 13.60 Kgs
- Recone Kit Number REC15PT10008E
