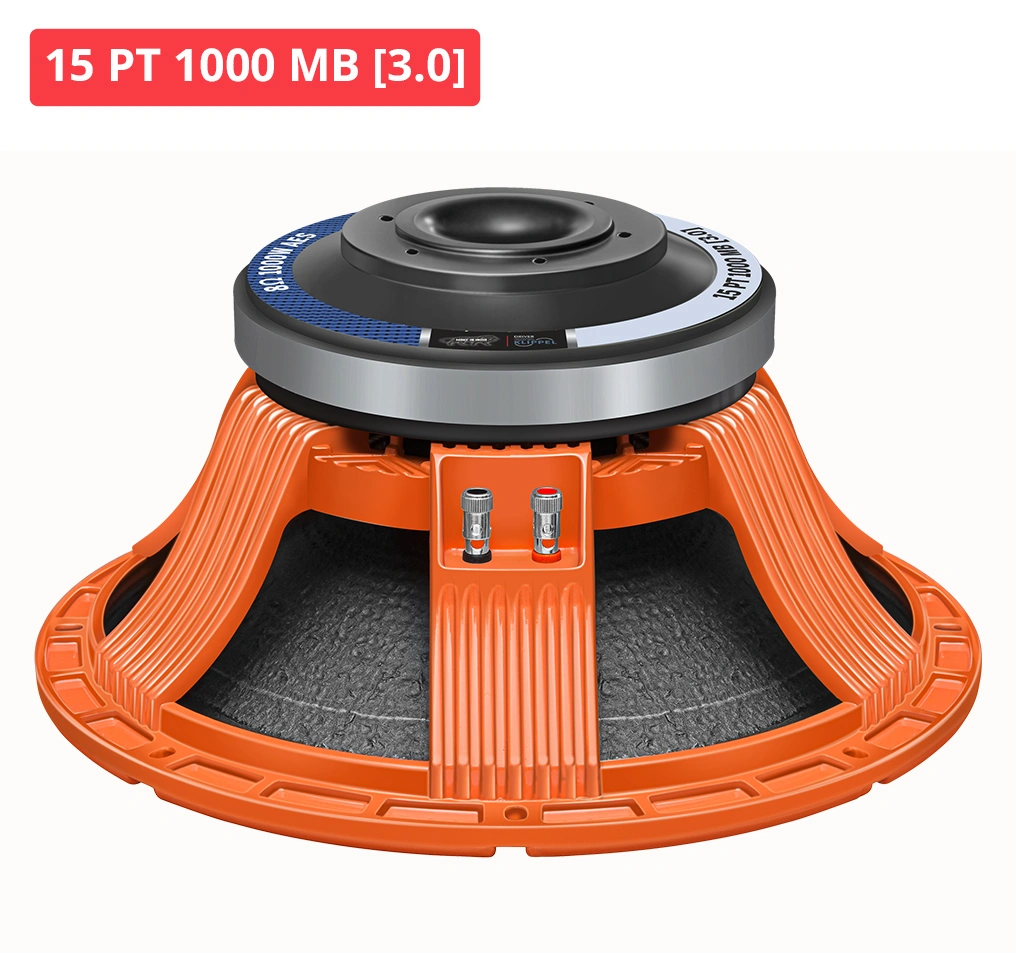

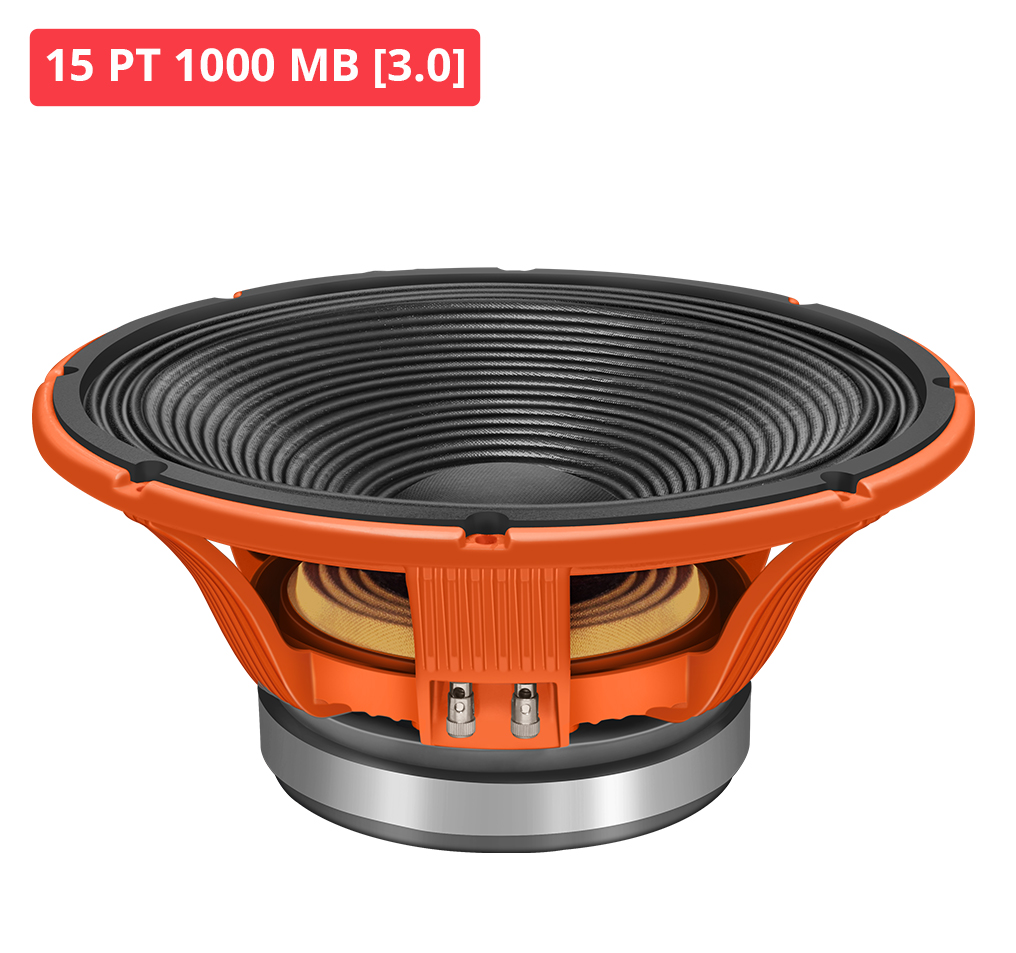

15 PT 1000 MB [3.0]
High-performance 15-inch mid-bass driver engineered for demanding low-frequency applications such as stage monitors, roadshows, and PA bass bins.
Key Features
- Program Power : 2000 W
- Voice Coil Diameter : 99.3 mm (4 in)
- Response : 45-3200 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 405 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 1000 W
- Program Power 2000 W
- Sensitivity (1W/1m) 95 dB
- Frequency Range 45-3200 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type IN/OUT
- Resonant Frequency (FS) 45 Hz
- DC Resistance (Re) 6.75 Ω
- Electrical Q (Qes) 0.37
- Mechanical Q (Qms) 15.18
- Total Q (Qts) 0.36
- Compliance Equivalent Volume (vas) 92.10 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.41 Ltrs
- Effective Surface Area of Cone (Sd) 876.16 cm^2
- Reference Efficiency (ƞo) 2.14%
- Moving Mass including air load (Mms) 148.20 gms
- Motor Strength (Bl) 27.56 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.02 mH
- Efficiency Bandwith Product (EBP) 122 Hz
- Voice Coil Overhang (Xmax) ±6.2 mm
- Overall Diameter 405 mm
- Bolt Circle Diameter 381 mm
- Baffle Cutout Diameter 361 mm
- Depth 178 mm
- Flange and Gasket Thickness 14 mm
- Gross Weight 14.40 Kgs
- Recone Kit Number REC15PT1000MB[3.0]
