4.0 Ω

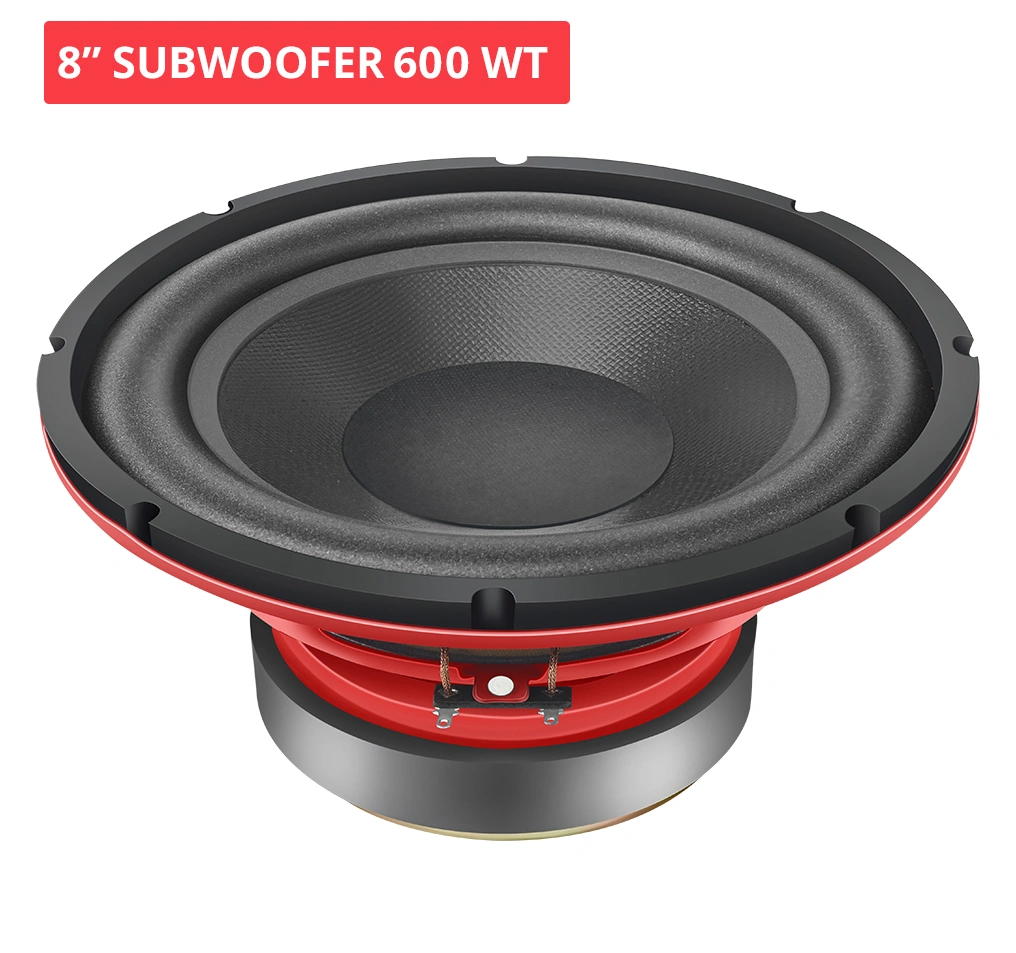

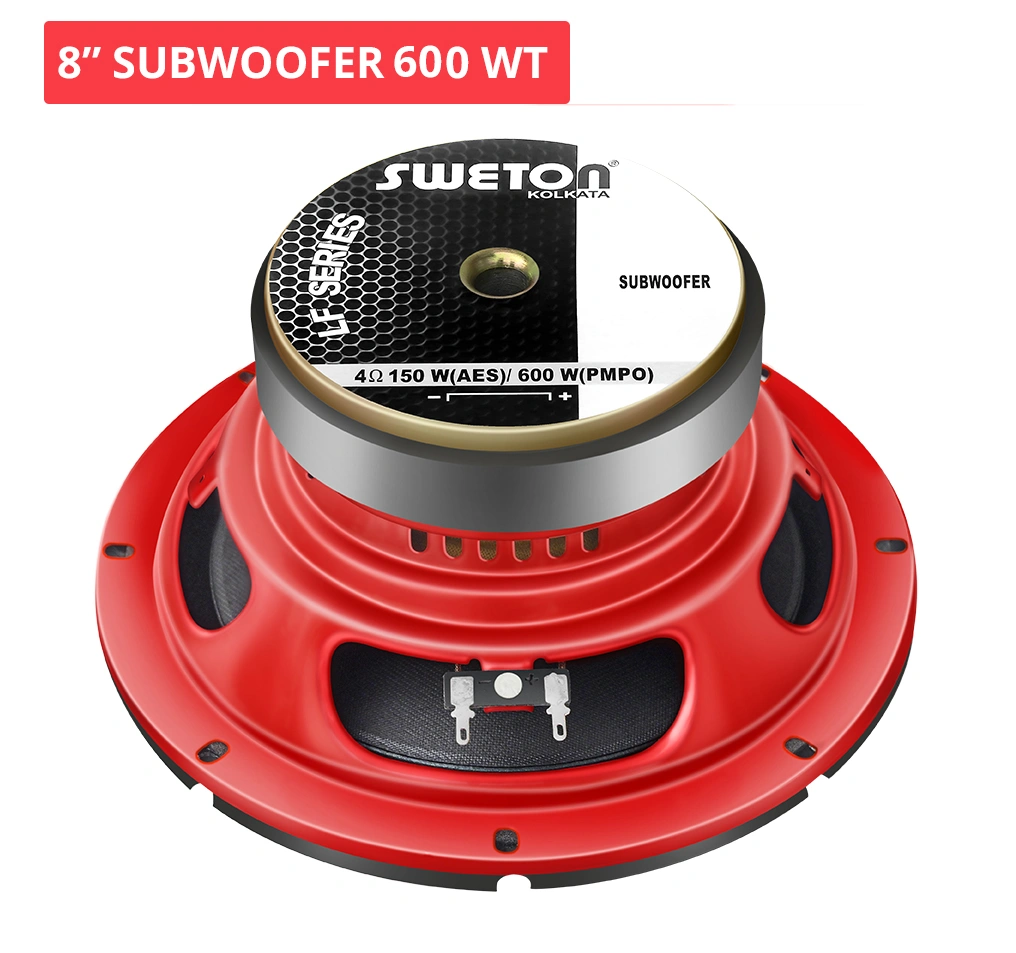

8" Subwoofer 600 WT PMPO
Key Features
- Program Power : 300 W
- Voice Coil Diameter : 35 mm

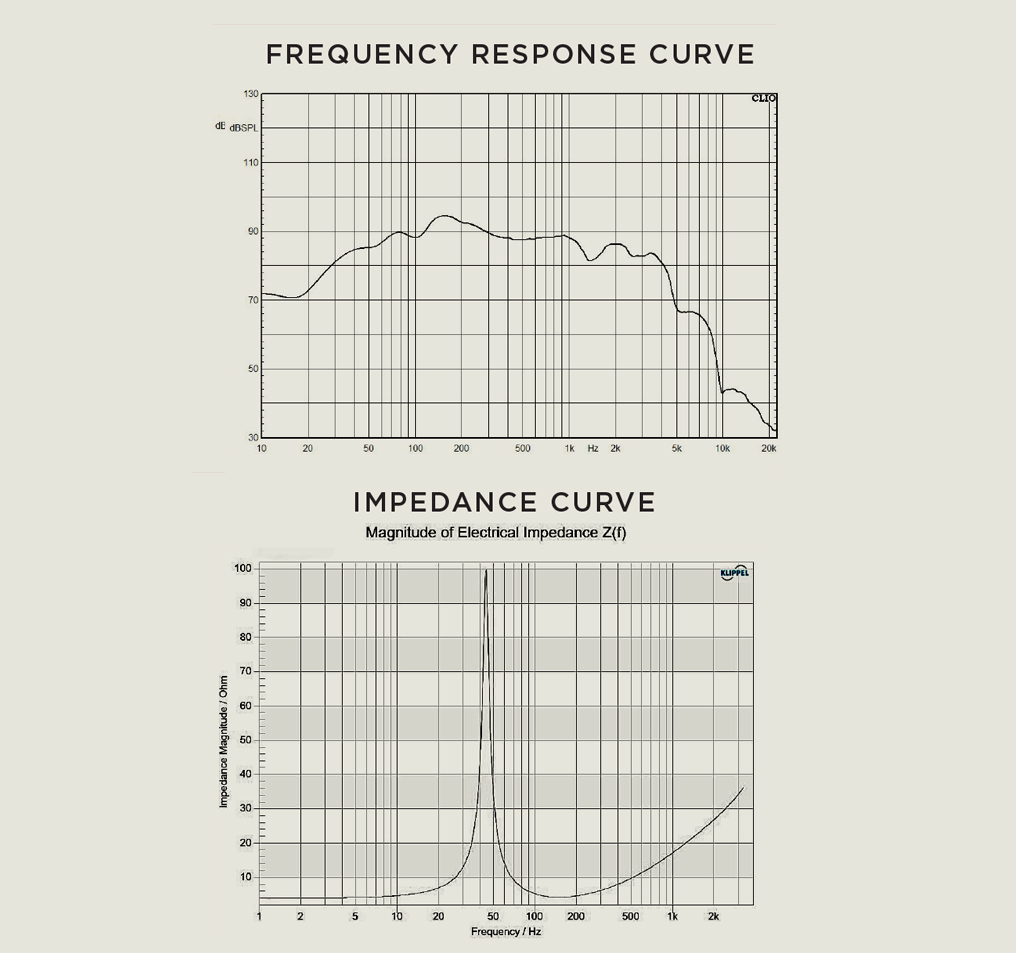

- Response : 34-1.5K Hz
- Sensitivity 1W/1M : 88 dB
- Nominal Diameter 210 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 150 W
- Program Power 300 W
- Sensitivity (1W/1m) 88 dB
- Frequency Range 34-1.5 KHz
- Magnet Material Ferrite
- Voice Coil Diameter 35 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 44 Hz
- DC Resistance (Re) 3.9 Ω
- Electrical Q (Qes) 0.44
- Mechanical Q (Qms) 11.14
- Total Q (Qts) 0.43
- Compliance Equivalent Volume (vas) 19.17 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.19 Ltrs
- Effective Surface Area of Cone (Sd) 227 cm^2
- Reference Efficiency (ƞo) 0.36%
- Moving Mass including air load (Mms) 49.39 gms
- Motor Strength (Bl) 11.04 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.34 mH
- Efficiency Bandwith Product (EBP) 100 Hz
- Voice Coil Overhang (Xmax) ±8.4 mm
- Overall Diameter 210 mm
- Baffle Cutout Diameter 180 mm
- Depth 96 mm
- Flange and Gasket Thickness 12 mm
- Gross Weight 2.63 Kgs
- Recone Kit Number REC8INCHSUB600
