Products
8.0 Ω

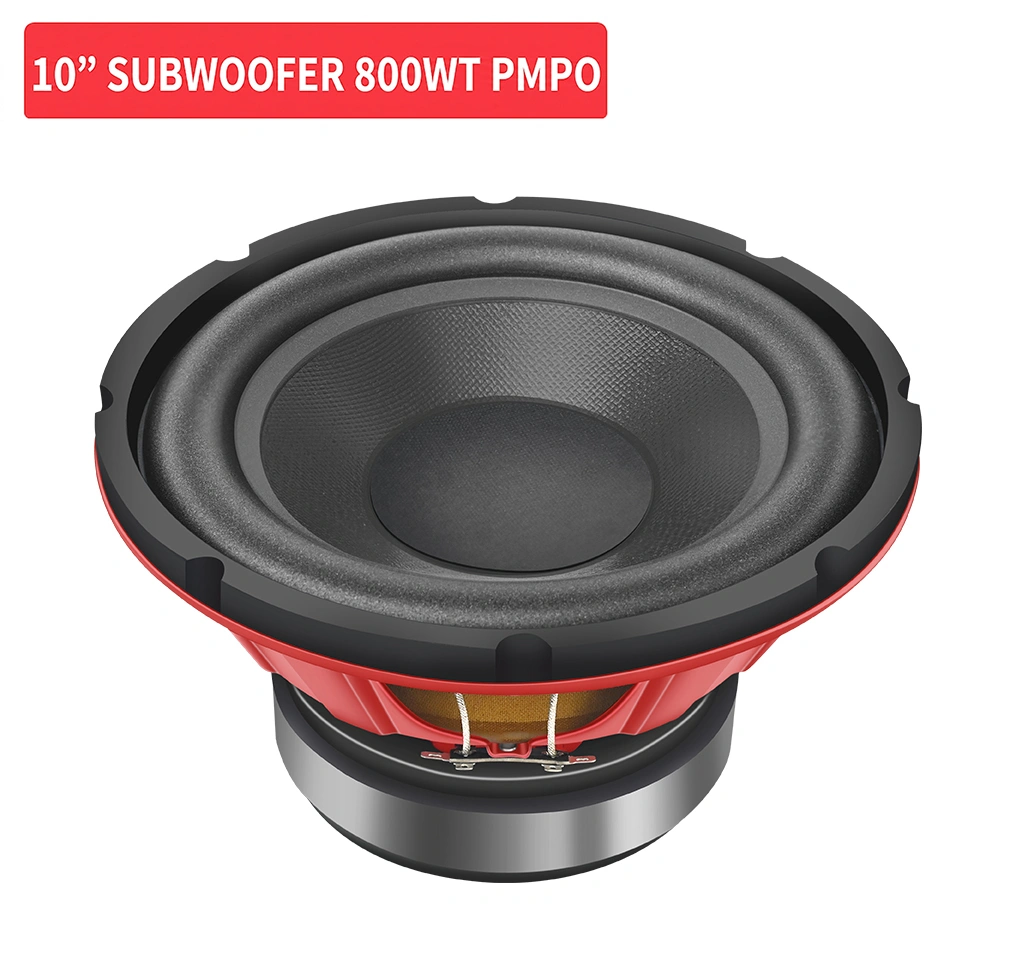

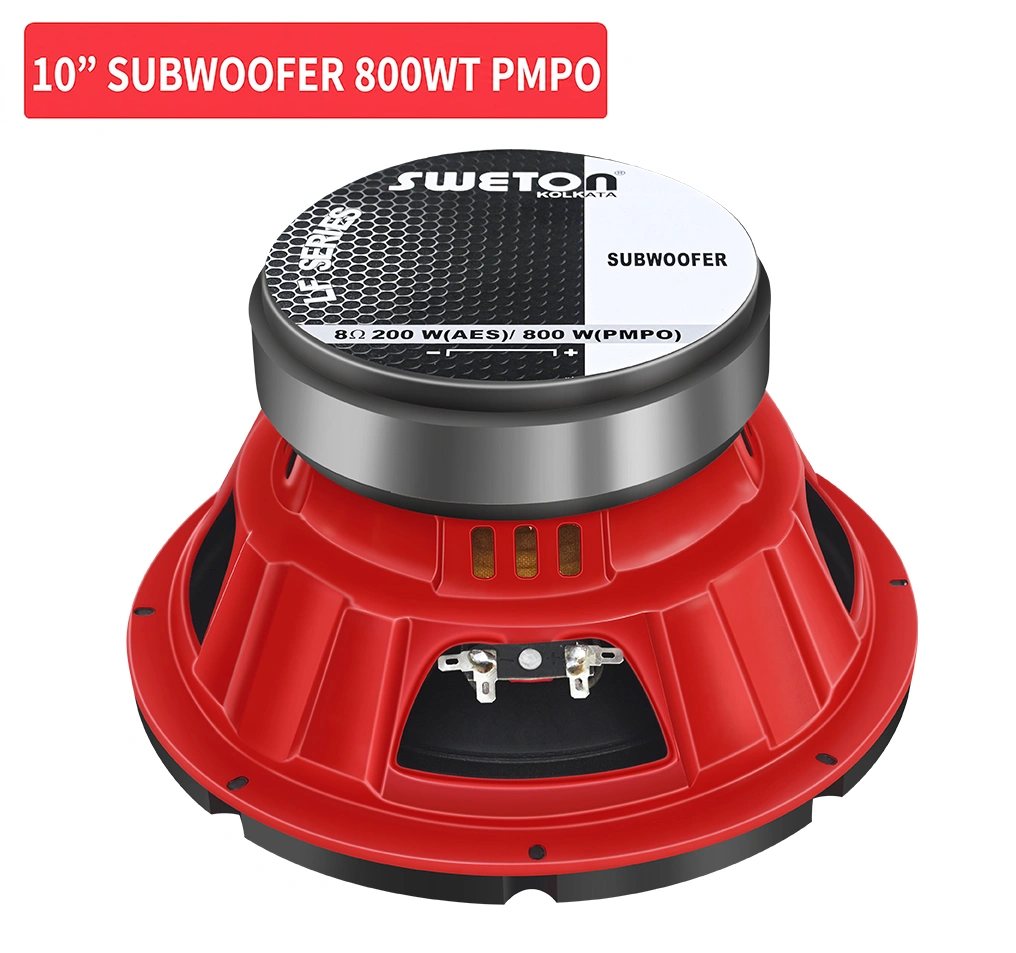

10" SUBWOOFER 800WT PMPO
Key Features
- Program Power : 400 W
- Voice Coil Diameter : 49.3 mm
- Response : 27-1.2K Hz
- Sensitivity 1W/1M : 89 dB
- Nominal Diameter 255 mm
- Nominal Impedence 8.0 Ω
- Nominal Power Handling(AES) 200 W
- Program Power 400 W
- Sensitivity (1W/1m) 89 dB
- Frequency Range 27-1.2K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 49.3 mm
- Winding Material COPPER
- Former Material TIL
- Winding Type Outside
- Resonant Frequency (FS) 30 Hz
- DC Resistance (Re) 7.55 Ω
- Electrical Q (Qes) 0.24
- Mechanical Q (Qms) 5.56
- Total Q (Qts) 0.23
- Compliance Equivalent Volume (vas) 47.23 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.39 Ltrs
- Effective Surface Area of Cone (Sd) 346.36 cm^2
- Reference Efficiency (ƞo) 0.52%
- Moving Mass including air load (Mms) 100 gms
- Motor Strength (Bl) 24.45 T-m
- Voice Coil Inductance @ 1 KHz (Le) 2.75 mH
- Efficiency Bandwith Product (EBP) 125 Hz
- Voice Coil Overhang (Xmax) ±11.4 mm
- Voice Coil Overhang (Xmax) ±11.4 mm
- Overall Diameter 255 mm
- Baffle Cutout Diameter 227 mm
- Depth 130 mm
- Flange and Gasket Thickness 14 mm
- Gross Weight 5.60 Kgs
- Recone Kit Number REC10INCHSUB800
