Products
4.0 Ω

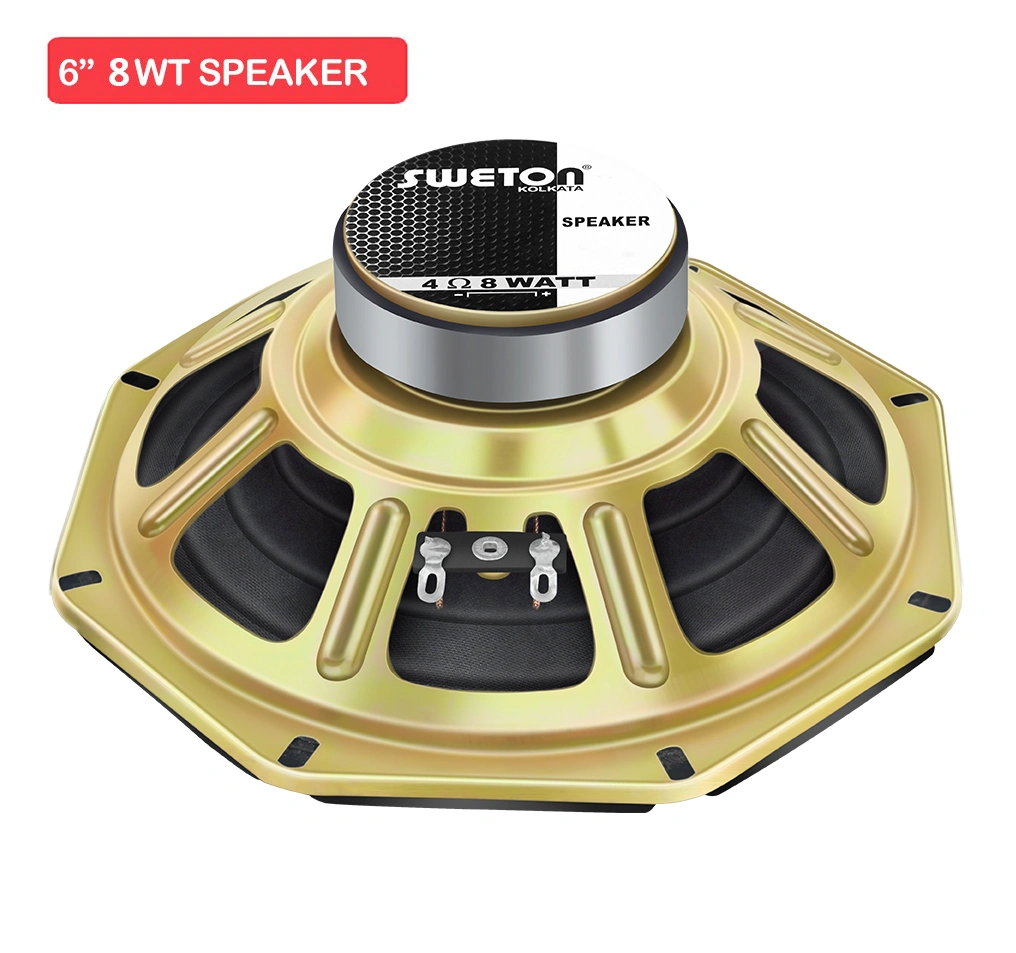

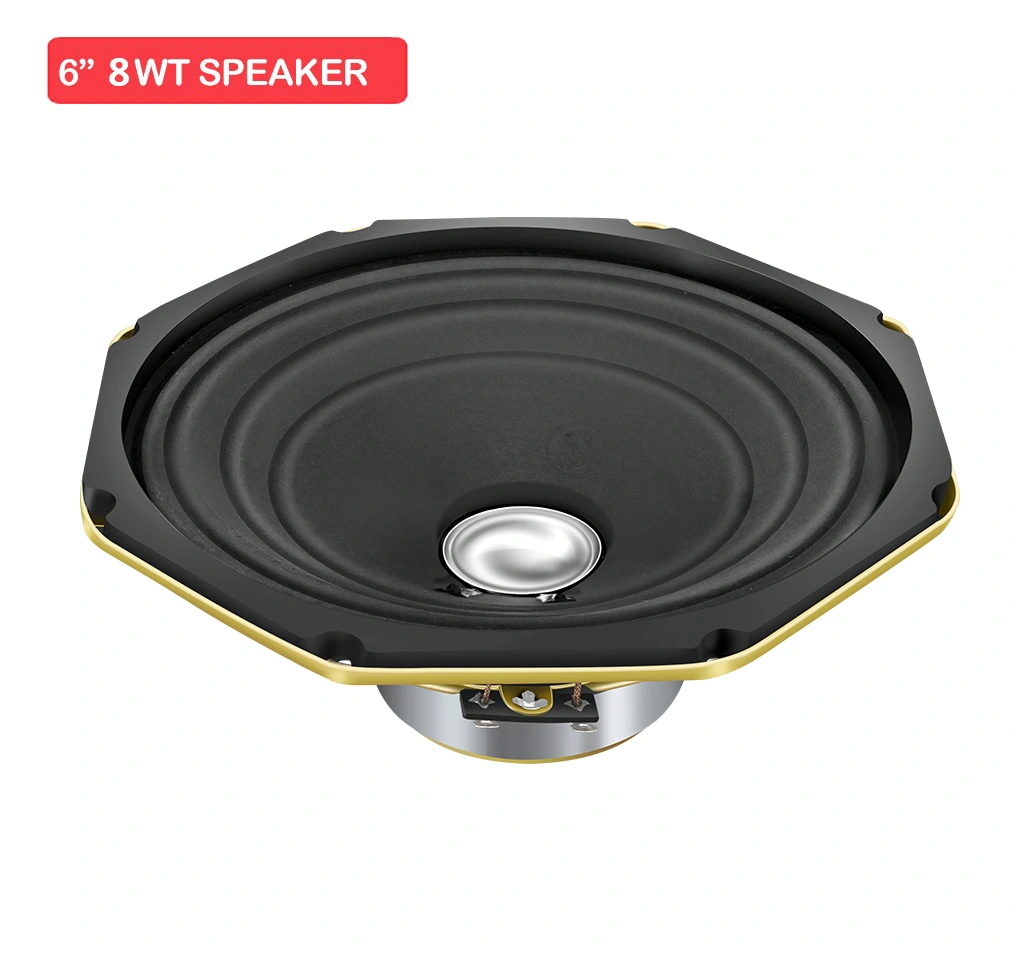

SPEAKER 6” 8 WT
Key Features
- Program Power : 16 W
- Voice Coil Diameter : 19.1 mm
- Response : 156-9.3K Hz
- Sensitivity 1W/1M : 91 dB s
- Nominal Diameter 167 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 8 W
- Program Power 16 W
- Sensitivity (1W/1m) 91 dB
- Frequency Range 156-9.3K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 19.10 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 156 Hz
- DC Resistance (Re) 3.8 Ω
- Electrical Q (Qes) 3.15
- Mechanical Q (Qms) 4.92
- Total Q (Qts) 1.92
- Compliance Equivalent Volume (vas) 6.56 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.02 Ltrs
- Effective Surface Area of Cone (Sd) 136 cm^2
- Reference Efficiency (ƞo) 0.77%
- Moving Mass including air load (Mms) 4.11 gms
- Motor Strength (Bl) 2.12 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.18 mH
- Efficiency Bandwith Product (EBP) 50 Hz
- Voice Coil Overhang (Xmax) ±1.65 mm
- Overall Diameter 167 mm
- Baffle Cutout Diameter 148 mm
- Depth 61 mm
- Flange and Gasket Thickness 7 mm
- Recone Kit Number REC6INCH8W
