8.0 Ω

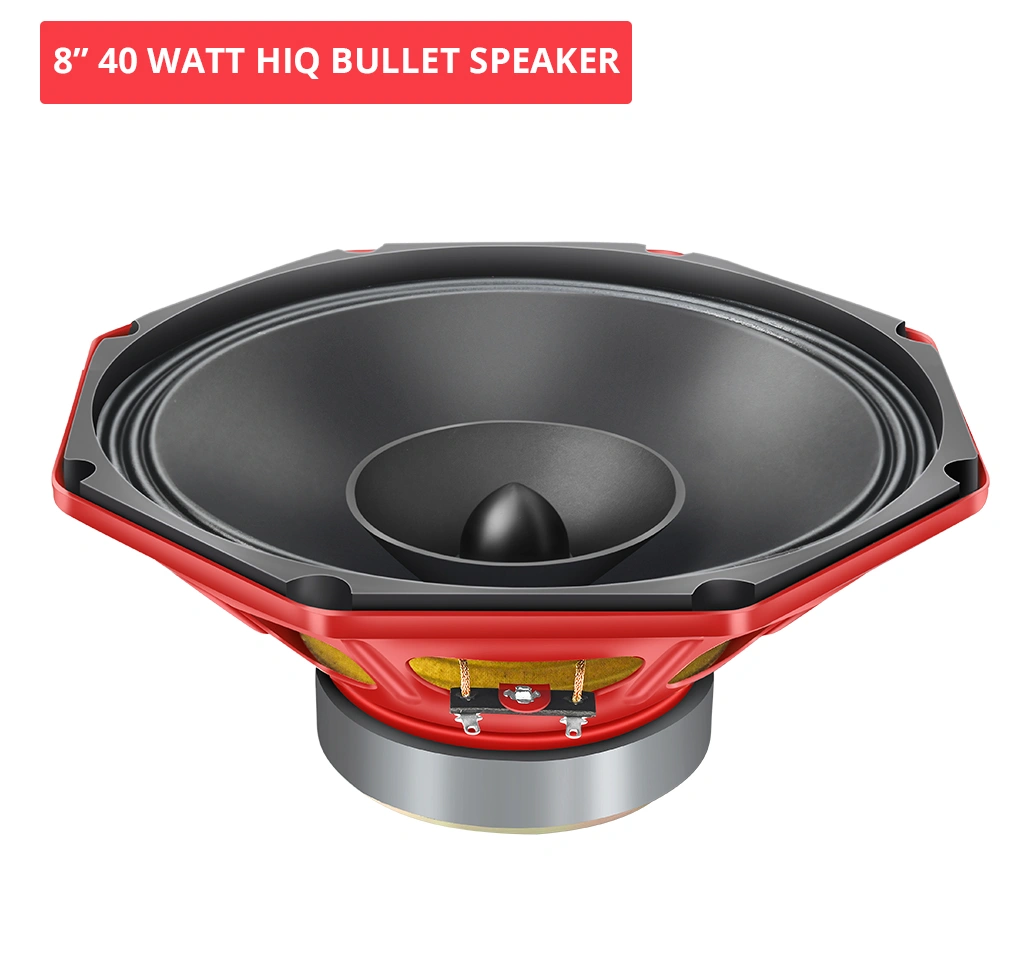

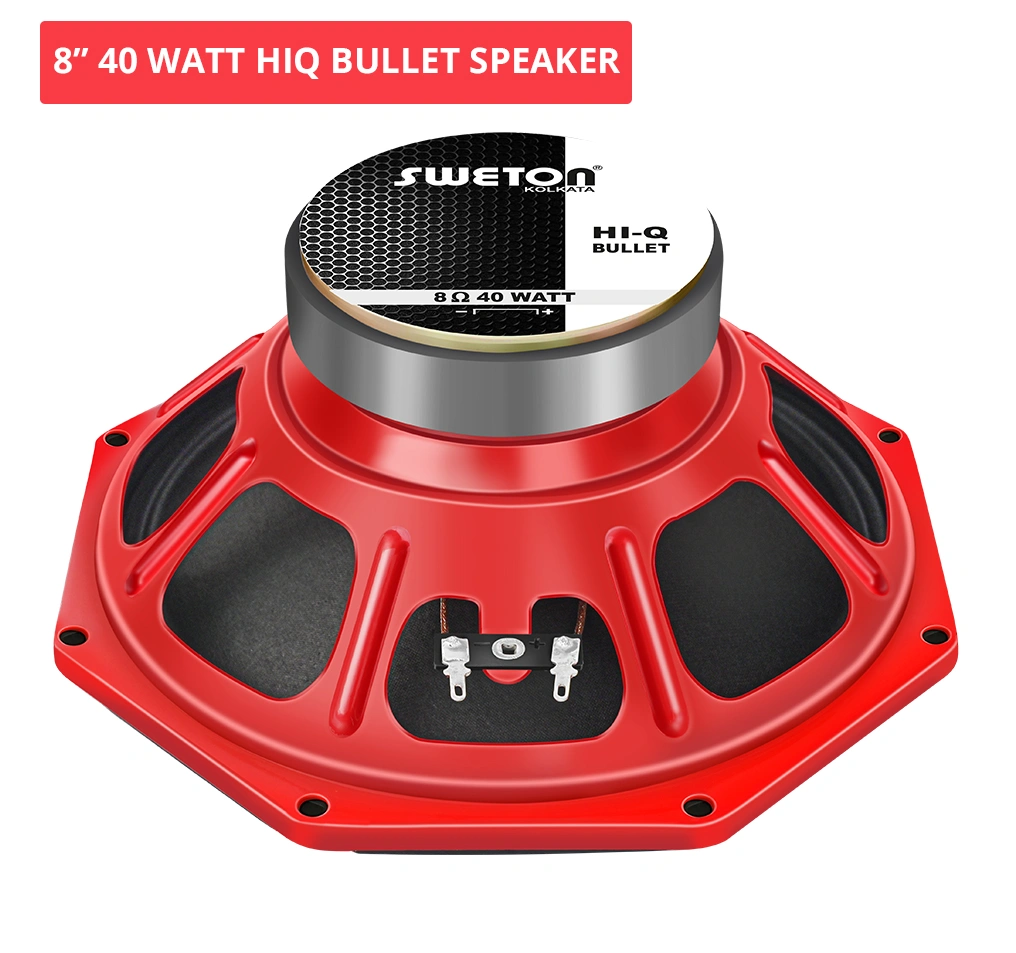

8" 40 Watt HiQ Bullet
Key Features
- Program Power : 80 W
- Voice Coil Diameter : 25.40 mm

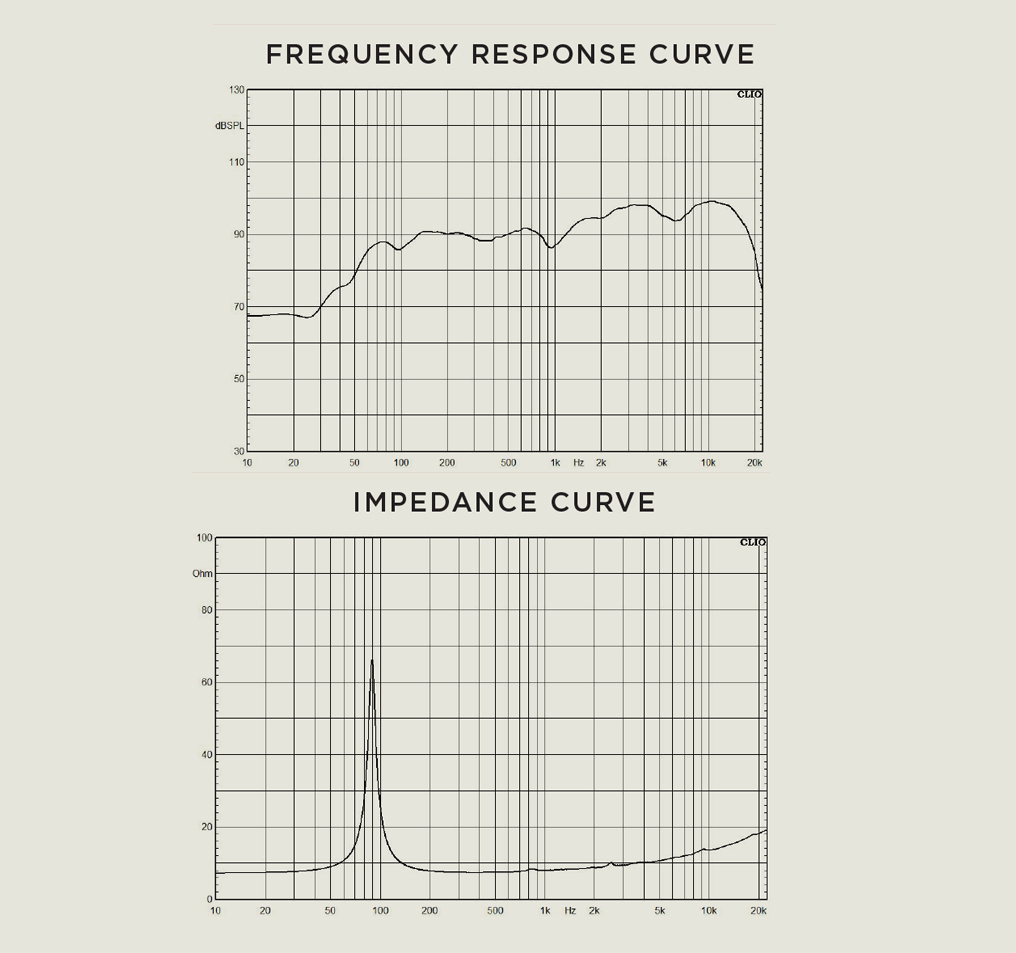

- Response : 90-20K Hz
- Sensitivity 1W/1M : 93 dB
- Nominal Diameter 217 mm
- Nominal Impedence 8.0 Ω
- Nominal Power Handling(AES) 40 W
- Program Power 80 W
- Sensitivity (1W/1m) 93 dB
- Frequency Range 90-20K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.40 mm
- Winding Material COPPER
- Former Material NOMEX
- Winding Type Outside
- Resonant Frequency (FS) 89 Hz
- DC Resistance (Re) 7.1 Ω
- Electrical Q (Qes) 1.27
- Mechanical Q (Qms) 10.64
- Total Q (Qts) 1.14
- Compliance Equivalent Volume (vas) 26 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.03 Ltrs
- Effective Surface Area of Cone (Sd) 227 cm^2
- Reference Efficiency (ƞo) 1.40%
- Mechanical Q (Qms) 8.74 gms
- Motor Strength (Bl) 5.23 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.17 mH
- Efficiency Bandwith Product (EBP) 70 Hz
- Voice Coil Overhang (Xmax) ±1.78 mm
- Overall Diameter 217 mm
- Baffle Cutout Diameter 192 mm
- Depth 85 mm
- Flange and Gasket Thickness 9 mm
- Gross Weight 1.03 Kgs
- Recone Kit Number REC8INCH40FRBU
